Portable Home Electronics Cleaning Floor Cleaner Molded Parts 718h Injection Mold
Dongguan Howe Precision Mold Co., Ltd.- Application：Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware
- Process Combination Type：Progressive Die
- Plastic Material：ABS,PP,PC
- Mould Cavity：Single Cavity
- Shaping Mode：Injection Mould
- Surface Finish Process：Glossy or Mirror Polished, Textured
Base Info
- Steel Treatment：Heat Treatment, Nitriding, Chrome Plating
- Mold Base：Lkm, Hasco, Dme or Upon Customer′s Requirement
- Mold Life：300,000 Shots - 1,000,000 Shots
- Ejection System：Stripper Plate, Lifter, Push Bar, Ejection Pin
- Gate Type：Fan Gate, Sub Gate, Pinpoint Gate, Valve
- Mold Material：P20,Nak80,SKD11,S316,S50c,S45c,718h,718 or Custome
- Customized：Customized
- Standard：DME
- Certification：CE, ISO
- Installation：Semi Fixed
- Design Software：Ug, Autocad, PRO-E
- Runner：Hot Runner
- Model NO.：HW-201119-2
- Injection Machine：90t-1200t
- Transport Package：Wooden Box for Mould, Carton for Products
- Specification：According to customers′ drawings
- Trademark：HOWE,OEM
- Origin：Dongguan, China
- HS Code：8480719090
- Production Capacity：40sets,Month
Description
Mould informtionInjection mold standard HASCO,DME,MISUMI,China lKM Standard. Please provide 2D, 3D, samples, or the size of the multi-angle pictures. Mould material 45#, 50#, P20, 738, 738H, 718, 718H, NAK80, 2316, 2316A, S136 etc. Product material ABS,PA6,PA66,PP,PC,TPU,POM,PBT,PVC,TPE,TPV,TPO,TPR,EVA,LDPE etc. Cavity Single-cavity, Multi-cavity, or by request. Runner system Cold runner or Hot runner. Mould precision ±0.01mm. Mould Life 50-100 million shots. Software CAD, PRO-E, UG, Rhinoceros etc. Design Time 1-3 days (normal circumstances). Main technology Milling, grinding, CNC, EDM, wire cutting, carving, lathes, etc.
Mold making process
Company profile
Our Services
Quality Control

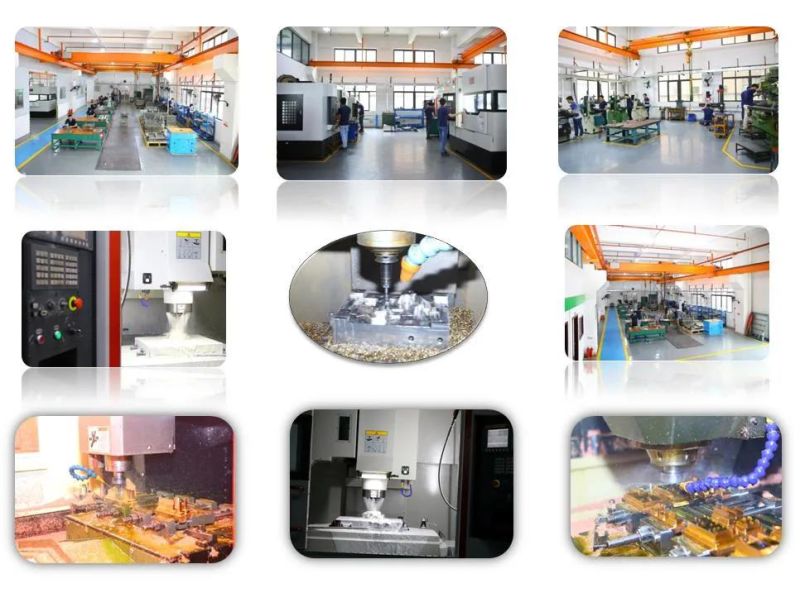

Our workshop

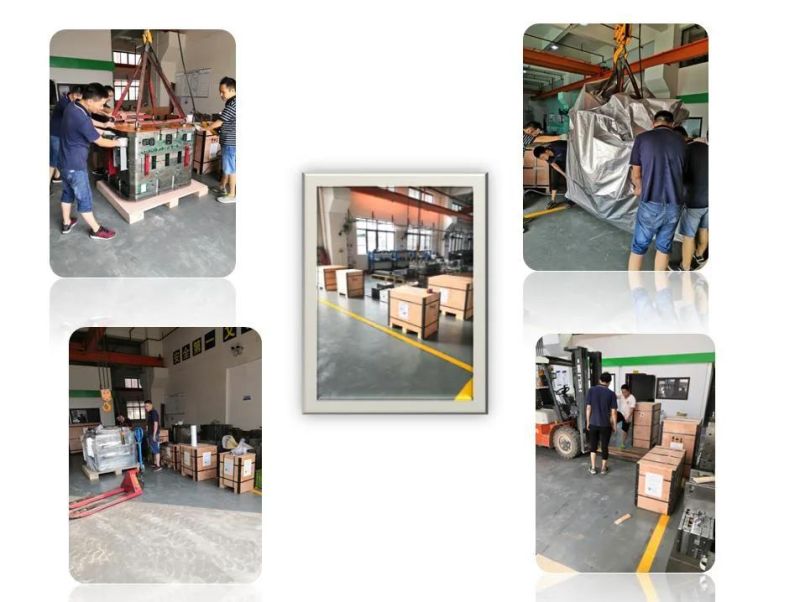

Packaging details
Customer Visit
FAQ:
Q1: What kind of molds do you make?
A1: We are mainly making plastic injection mold. Sometimes we also make die casting molds according to our customer's requirements.
Q2: Do you build hot runner plastic moulds?
A2: Yes. We build hot runner Plastic Moulds and specialized in many different systems, such as DME,Master,Mastip,Hasco,Yudo,Incoe,Husky,etc.
The manifold recommended for your tool is selected to meet your individual needs.
Q3: What types of files do you accept (drawings)?
A3: With our CAD systems, we can accept the following files:
STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files, etc.
Q4: What kind of steel do you use for plastic mouldings?
A4: We can use any type of steel appointed by customers or popular in the market.
Such as P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.
Q5: Can you provide the steel certificate and heat-treatment certificate?
A5: Yes, We can provide a steel certificate or hardness certificate to prove.
Q6: Can you make the texture/text / heat-treatment /nitriding for the injection mold plastic?
A6: Yes, as a plastic mold factory, we have long-term cooperated subsidiary factories that do those processes.
They are professional and well reputed in our local market.
Q7: How long is the lead-time for a plastic injection mold?
A7: It all depends on the mold's size and complexity. Normally, the lead time is 25-45days.
If the Plastic Mouldings are very simple and not big size, we can work out within 15 days.
Q8: Do you make spare parts for your customer?
A8: Yes, we will provide spare parts for the mold if needed or required by the client.
Q9: How do you pack the plastic moulds?
A9: We pack the plastic moulds with a wooden box.
There are the main 3 operation steps.
First Step: We daub some rust preventive oil on the mold.
Second step: We pack the mold with thin plastic film to avoid moisture.
Third step: We put this plastic film packed mold in a wooden box, and fix it to avoid any movement.
Mold making process
| 1.Sample/Drawing | After receiving your detail information like 2D & 3D drawings or sample for reference, will pass to the R&D team to do Moldflow analysis. |
| 2.Negotiation | Material, cavity, price, delivery time, payment term etc. |
| 3.Place Order | when all terms are agreed by both sides, then we will accept an order. |
| 4.Mould Design | Our R&D team will design the mould per customer requirements and send drawings for approval. |
| 5.Tooling Mould | Once the mould design is approved will start mould tooling. |
| 6.Mould Process | CNC grinding and milling, Heat Treatment, Wire Cut, Polish, Tool assembling and testing etc. Our good QC system can guarantee the product quality. |
| 7.Sample Confirmation | Send samples for confirmation, if not approved we will adjust the mould structure. |
| 8.Mass Production | After the customer approves the sample, we will arrange mass production. QC will inspect after products finished. |
| 9.Package | PE film for plastic parts, wooden case for moulds or as customer's requirement. QC will inspect packing. |
| 10.Delivery | By sea or by air according to customer requirement. |
| 11.After-sales Service | Ready to help customers solve any possible problems. |
