• Specification：according to request for Copper mold tubes
• Transport Package：by Woonden Box for Copper Mold Tubes
• Condition：New
• Customized：Customized
• Certification：ISO 9001
• Mould Life：500,000-1,000,000 shots
• Average Wall Thickness：>3mm
• Using Hardness：>HRC45
• Model NO.：CMT001
• Trademark：Shengmiao
• Origin：China
• HS Code：8454902100
• Production Capacity：50, 000pieces,Year

Copper mold tubes for crystallizer usage Coating

In order to increase the erosion resistance and service life the casting mould tubes, we always dedicated to research special coatings. The mould tubes can be coated with our different types of internal surface coating: Cr, Ni-Co, Ni-Fe, Ni-Co-Cr. The coating thickness recommended by us has been controlled in the best range.

 Copper mold tubes for crystallizer usage Material

  Melting Point
  CuDHP: 1.083ºC
  CuAg0.1: 1.083ºC
  CuCrZr: 1.078ºC
  CuNip:1.080ºC

Parameters of Copper mold tubes for crystallizer usage

Product Name Size Thickness Length Radius Square Cooper Tubes 50*50--650*6506-50602-11003000-17000 or Straight Round Cooper Tubes φ110-φ150010-50602-9005000-17000 or StraightRectangle Copper Tubes (100-500)x6506-50602-11003000-17000 or StraightBeam Blank Copper Mould Tubes 535-150x120-7012-50700-10166000-14000Non-stand Copper Mould Tubes535-150x120-7012-50700-10166000-14000

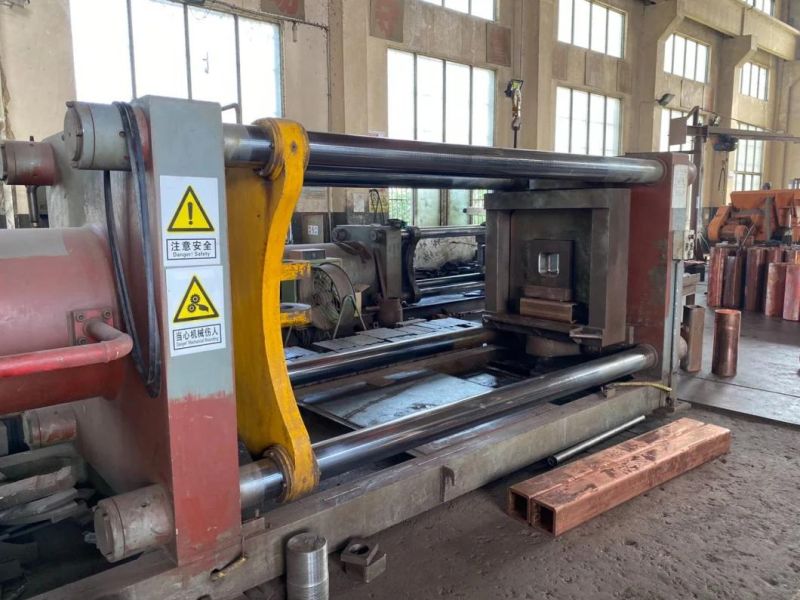

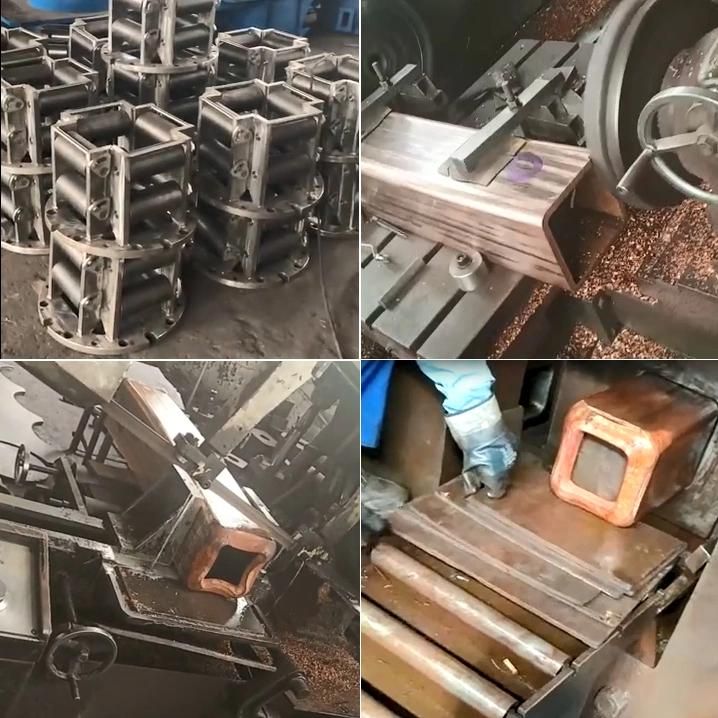

Process of Copper mold tubes for crystallizer usage

 MELTING & CASTING --- HOT EXTRUSION/FORGING --- COLD DRAWING --- TAPERING --- MACHINING --- ELECTROPLATING --- MACHINING AFTER ELECTROPLATING --- FINAL INSPECTION --- PACKING

Packing and delivery for Copper mold tubes for crystallizer usage

Display of customers visiting for Copper mold tubes for crystallizer usage

welcome to consult us for Copper mold tubes for crystallizer usage
