• Origin：China
• Trademark：Shengmiao
• Specification：custom-made
• Transport Package：by Woonden Box
• Condition：New
• Customized：Customized
• Certification：ISO 9001
• Model NO.：CMT001
• HS Code：74111090
• Production Capacity：50, 000pieces,Year

Basic Info.

Model NO. CMT001 Certification ISO 9001 Customized Customized Condition New Transport Package by Woonden Box Specification custom-made Trademark Shengmiao Origin China HS Code 74111090 Production Capacity 50, 000pieces/Year

Product Description

Introduction of Crystallizer - the round, square, rectangle, non-standard copper molds for steel industry

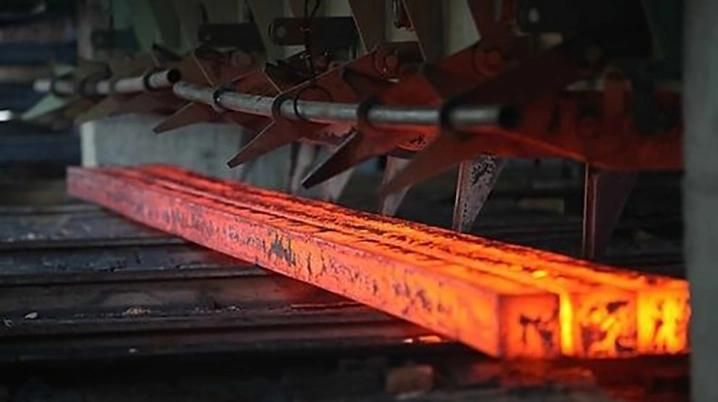

Crystallizer copper tube for CCM is an accessory used for cast steel continuous casting machine, which is caused by direct casting of molten steel in the mold copper tube.


Crystallizer - copper tube for steel industry is an essential part that used in any construction. It is created with a good quality of raw materials that produce reliable sources. We provide copper mould tube products based on industry norms and high standards. You might order applications according to your industrial needs. We help you to produce these products on your limited budget to access on your field.




Raw Material of Crystallizer -  copper mould tube
To provide mould tubes with optimal physical and mechanical properties to customers' specifications, mould tube products are supplied of the following materials:
1. Cu-DHP: Normally used for mould tubes section size below 180x180mm and round tubes below Dia.150mm.
2. Cu-Ag: Normally used for mould tube section size above 180x180mm and round tubes above Dia.150mm

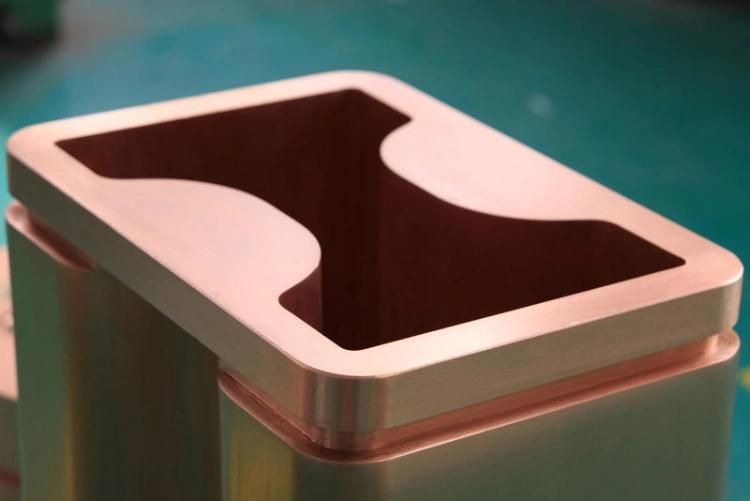

3. Cu-Cr-Zr: Normally used for beam blank mould tubes

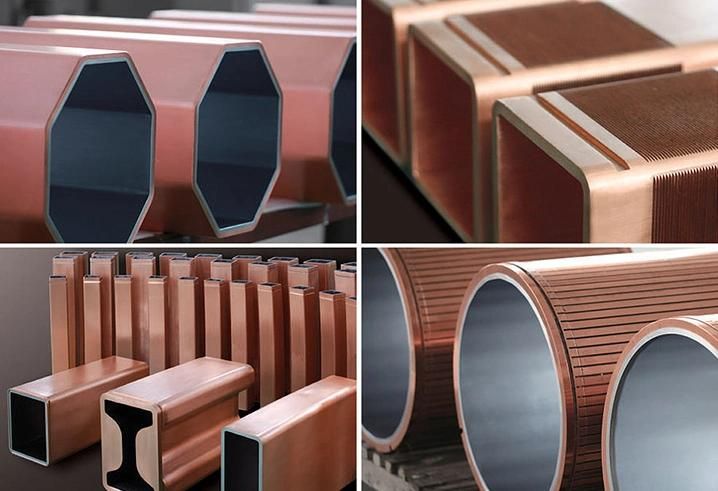

Specifications of Crystallizer -  copper mould tube
We supply all kinds of Copper Mold Tubes of all sizes and dimensions, produced exactly as per the required drawing. The Sizes for Copper Mould Tubes is enlisted as under:

NAME	SIZE	CAMBER RADUIS	THICKNESS	LENGTH
Square & rectangle copper tube	Square 50x50-650x650 Rectangle (100-500)x650	3000-17000 Also straight	6-50	602-1100
Round copper tubes	∅110-∅1500	5000-17000 Also straight	10-50	602-900
Non-standard copper mould tubes Beam blank copper mould tubes	535-150x120-70	600-14000	12-50	700-1016

Production Process of Crystallizer -  copper mould tube
MELTING & CASTING --- HOT EXTRUSION/FORGING --- COLD DRAWING --- TAPERING --- MACHINING --- ELECTROPLATING --- MACHINING AFTER ELECTROPLATING --- FINAL INSPECTION --- PACKING



Coating for Crystallizer -  copper mould tube
In order to increase the erosion resistance and service life the casting mould tubes, we always dedicated to research special coatings. The mould tubes can be coated with our different types of internal surface coating: Cr, Ni-Co, Ni-Fe, Ni-Co-Cr. The coating thickness recommended by us has been controlled in the best range.

The Advantages of Crystallizer -  copper mould tube

Extra-long service-life is achieved with the special multilayer Ni-Co-Cr coating, which features high micro hardness and optimum binding strength with the copper base. The tubes are designed for maximum heat transfer rate from the meniscus down to the bottom of the tube.  The taper-geometry depends on the steel-grades and casting conditions and is designed with the aim of minimizing the gap between the solidifying shell and the copper tube.

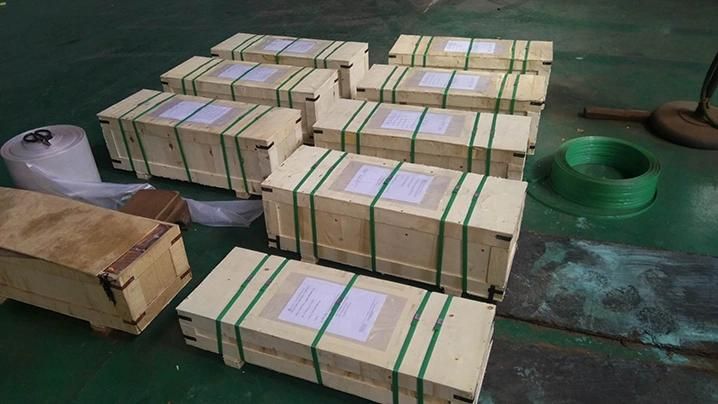

Package for Crystallizer -  copper mould tube


Company profile
Founded in 1992, Henan Shengmiao Instrument Co., Ltd. is one of the China's leading supplier of round, square, rectangle, non-standard copper mold tube and plate for CCM(continuous casting industry). With over 20 years of expertise in metallurgy industry of copper and copper alloys, the company is committed to research & development, and providing a range of high quality, innovative, cost-effective copper mould tube products and solutions.

Possessing advanced manufacturing equipments and cutting-edge technology for mechanical and Eelectro-plating processing, in order to meet customer's requirement, the company designs and develops Crystallizer copper tube and plate according to DIN, ASTM, EN, JIS standard. Providing diverse lines of the products backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain. The diverse products include Crystallizer -  copper mould tube and copper mould plates.

Our ISO 9001:2015 certification registered production facilities are emblematic of Shengmiao's ongoing commitment to quality and sustainability in the manufacture of these products. The company maintains stringent quality processes and standards in the industry to ensure an effective Quality Management System, continual improvements, and excellence in customer satisfaction.

Being approved by international well-known inspection institutions such as SGS, OMIC, IKA, ISQI, COTECNA, our products have been exported to Europe, Asia, Africa, South America and Middle Eastern countries, which enjoys good reputation.

As an influential and responsible supplier, we are able to provide our customers with more thoughtful services and technical support. To ensure long-term customer satisfaction, we offer comprehensive support for Crystallizer -  copper mould tube over their whole life cycle.

Please be free to contact us if any enquiry for Crystallizer Copper Mould Tube for CCM.
