• Specification：0.394"-1.1417"
• Transport Package：Carton
• Case：43X27
• Customized：Customized
• Warranty：1 Year
• Application：Wires and Cables
• Surface Treatment：Polish
• Model NO.：10.0mm ~ 29.0mm
• Trademark：HG
• Origin：China
• HS Code：8207201000
• Production Capacity：3000pieces,Year

 Copper Copper clad steelCopper clad aluminumAluminumEntrance70°~80°70°~80°70°~80°70°~80°Approaching35°35°35°35°Reduction angle14°~16°12°~14°12°~14°14°~18°Bearing (%)0.2D~0.4D0.2D~0.5D0.2D~0.6D0.2D~0.4DBack relief20°~30°20°~30°20°~30°20°~30°Exit50°~60°50°~60°50°~60°50°~60°
1.Inner Geometry

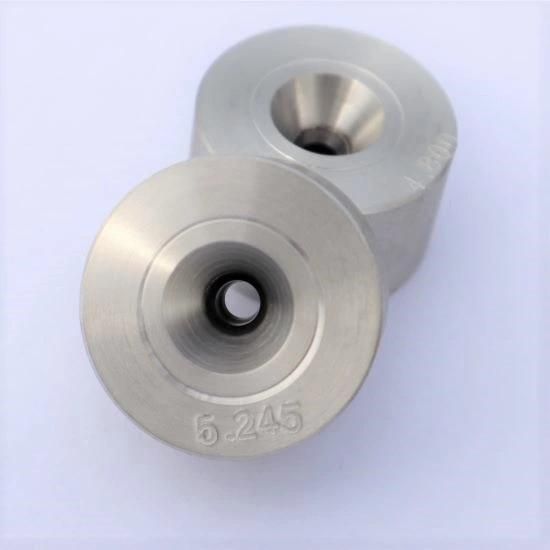

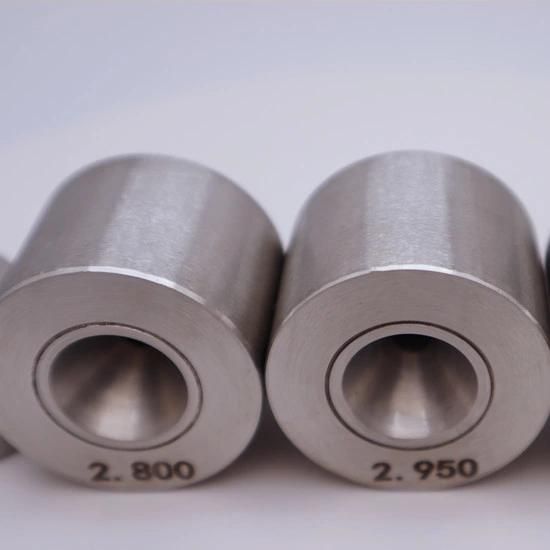

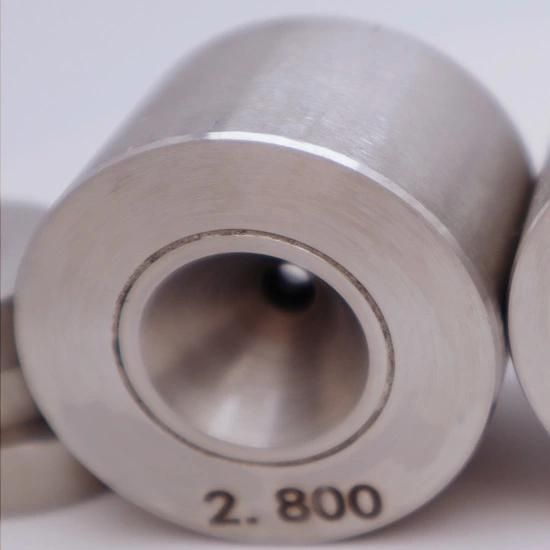

Inner geometry of the PCD dies have"Entrance,approaching,reduction,bearing length and exit part".
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f.  Exit: Wire exiting.

2.Appliable Wires

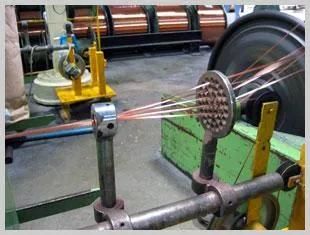

PCD stranding/ bunching dies can be widely used for copper,aluminum,gold,silver,nickel,chrome,molybdenum,wolfram, automobile wire,construction wire and so on.

3.Features
Advanced manufacturing and inspecting machines.
Superior abrasive resistance and hardness, long life time.
Imported sintering powder with high reinforcement.
Predictable wire surface, roundness.
100% inspected by machine,high accuracy,conformity.
