• Origin：China
• Trademark：Wmould
• Transport Package：Foam Bag , Bubble Bag , Carton Box , Wooden Case
• Inspection：100% Before Shipment

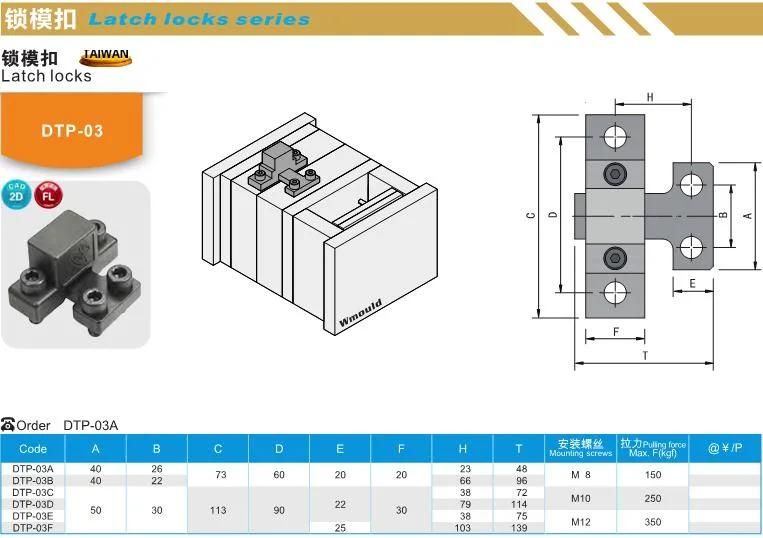

• Model NO.：DTP-03
• Production Capacity：10000,Month

Basic Info.

Model NO. DTP-03 Inspection 100% Before Shipment Transport Package Foam Bag / Bubble Bag / Carton Box / Wooden Case Trademark Wmould Origin China Production Capacity 10000/Month

Product Description

Installation Guidelines:
.Please install the roller lock symmetrically,
otherwise,it would be fractured with the unbalanced
force due to only one side of lock set be forced.
·This Roller lock is the precise standardized item,
please do not apply together with other own
customer machined parts.
·If mold need to maintain,please remove the roller
locks first.

Product summary:
·
process sequence unit by the way of mechanical.
· This latch lock should be install inside the mold or the external side:
(Internal installation type)Internal latch lock: install inside the mold,avoid clashing with outside parts or the waterway,
its save space and don't effect the beauty of the mould as a whole.
Prevents mold accidental collision damage in the process of transportation,for example 1.
(External installation type)Latch lock: install external side,its safe and reliable,easy to installation and maintenance,
and big latching strength,suitable for all kinds of large,middle,small mold for example 2.
Latch lock was named switching ware or parting lock set,which was used for three-plate mold,its control mold plate's
Note:
·
A minimum of two sets latch lock are requested to be mounted symmetrically at least with the same specification in
one mold
