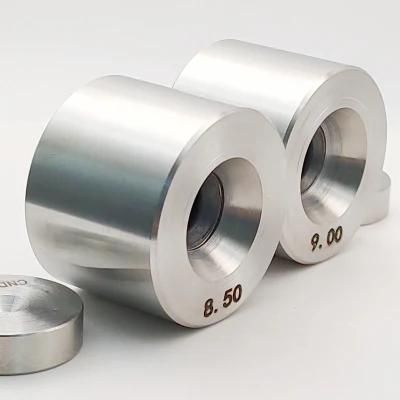

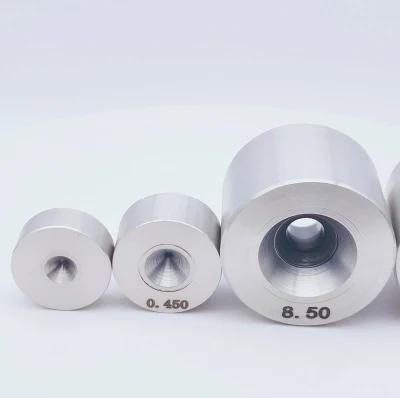

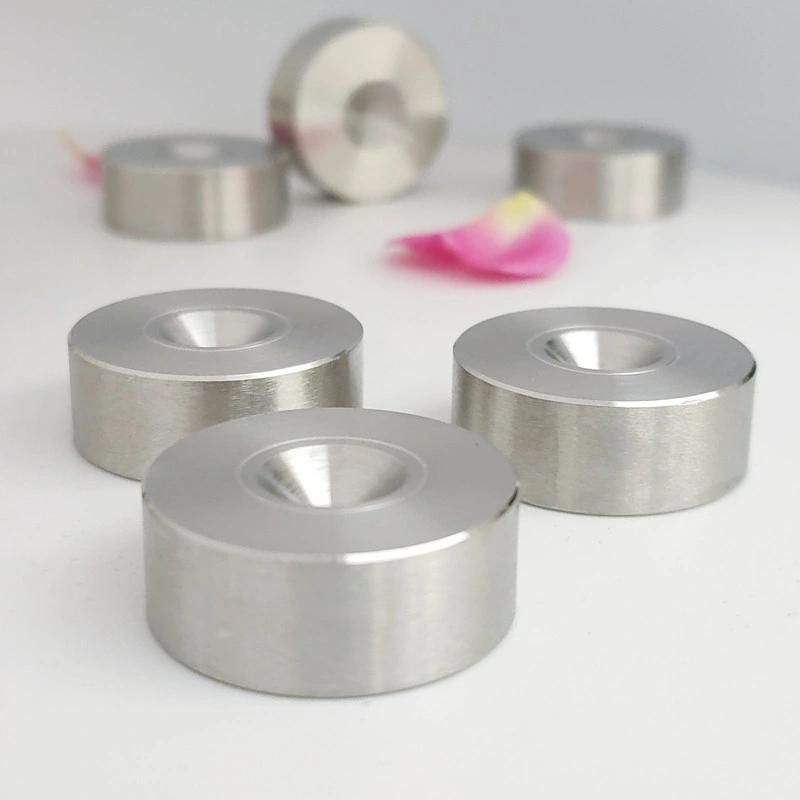

Premium Natural Diamond Wire Drawing Dies Made by Imported Diamonds

Zhengzhou Hanguang Super Hard Tools Co., Ltd.
  • Shaping Mode:Grinding
  • Material:Diamond
  • Type:Natural diamond die
  • After-sales Service:Repairing Dies
  • Hole Type:Round Mould
  • Cavity:Single-cavity

Base Info

  • Specification:0.0007"-0.059"
  • Transport Package:Carton
  • Cases:28X12, 25X6,28X10
  • Customized:Customized
  • Warranty:1 Year
  • Surface Treatment:Polish
  • Model NO.:0.018mm~1.50 mm
  • Trademark:HG
  • Origin:China
  • HS Code:8207201000
  • Production Capacity:150000pieces,Year

Description

Size(inch)Size(mm)Tolerance(mm)Roundness(mm)≤0.0039≤0.1000.0010.00050.00398~0.00790.101~0.2000.0010.00050.00791~0.01970.201~0.5000.0020.00100.01972~0.03940.501~1.0000.0030.00150.03941~0.05901.001~1.5000.0050.00250.0591~0.078701.501~2.0000.0070.0035≥0.0788≥2.0010.0100.0050

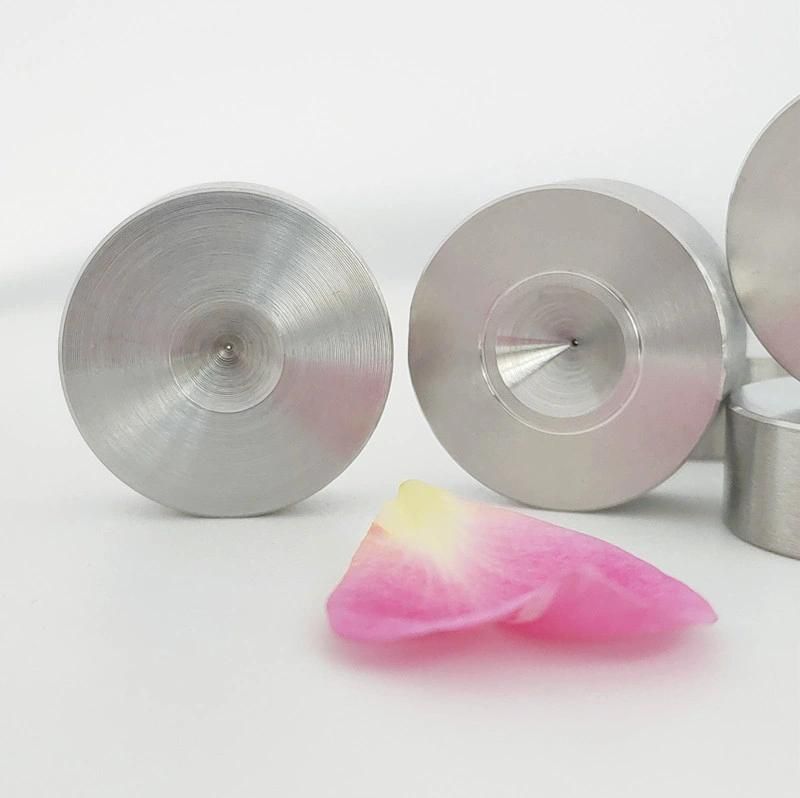

3. Inner Geometry
 Premium Natural Diamond Wire Drawing Dies Made by Imported Diamonds
Inner geometry of natural diamond dies combined with "Entrance,approaching,reduction,bearing length and exit part".
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f.  Exit: Wire exiting.
Premium Natural Diamond Wire Drawing Dies Made by Imported Diamonds

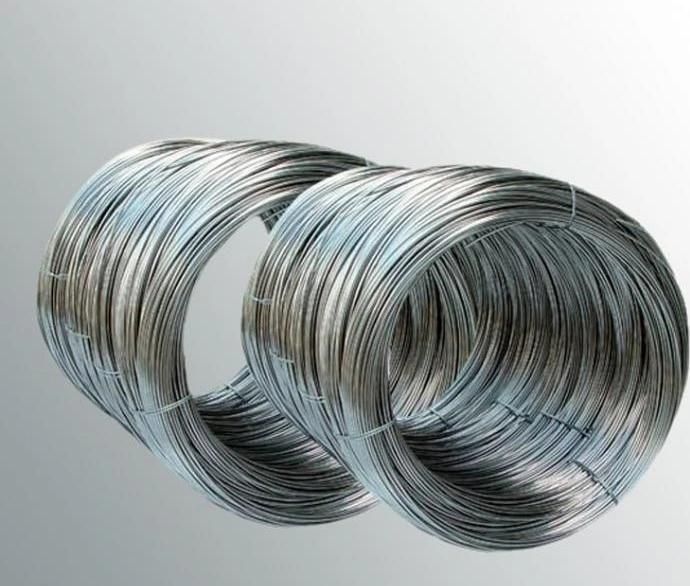

4.Appliable Wires
Non ferrous and ferrous metal, such as cooper, aluminum, gold, silver, molybdenum, nickel,wolfram, alloy wire, stainless steel wire and so on.

Premium Natural Diamond Wire Drawing Dies Made by Imported Diamonds
5.Features of HG Diamond Dies
Premium Natural Diamond Wire Drawing Dies Made by Imported Diamonds

23 years' experience in die manufacturing industry
Advanced manufacturing and inspecting machines
Imported natural diamonds with high quality
Imported sintering powder wtih high reinforcement
100% inspected by,high accuracy,conformity,stability
High work efficiency
Long life time
Premium Natural Diamond Wire Drawing Dies Made by Imported Diamonds
