PVC 90 Degree Elbow Plastic Injection Mould (JZ-M-C-02_002_C)
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Plastic Material：PVC
- Mould Cavity：Multi Cavity
- Surface Finish Process：Polishing
- Shaping Mode：Injection Mould
- Process Combination Type：Compound Die
- Runner：Cold Runner
Base Info
- Transport Package：Wooden Case
- Size：25mm
- Customized：Customized
- Standard：HASCO
- Certification：ISO
- Installation：Mobile
- Design Software：AutoCAD
- Model NO.：JZ-M-C-02_002_C
- Specification：ISO9001: 2000
- Trademark：JZ
- Origin：China
- HS Code：8480719090
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. JZ-M-C-02_002_C Design Software AutoCAD Installation Mobile Certification ISO Standard HASCO Customized Customized Size 25mm Transport Package Wooden Case Specification ISO9001: 2000 Trademark JZ Origin China HS Code 8480719090 Production Capacity 100sets/MonthProduct Description

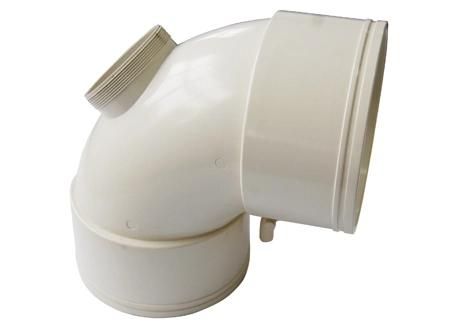

PVC 90 degree elbow mouldSzie: from 20mm to 630mm,
Cavity: customized
| Name | PVC 90 Degree Elbow Plastic injection Mould |
| Plastic material | PVC |
| Steel of Cavity & Core | DIN 1.2316 |
| Steel of Mouldbase | LkM |
| Nos of Cavity | 16 cavity |
| Hardness of Cavity & Core | 42-45HRC |
| Hardness of Wear Parts | 42-48HRC |
| Core pulling system | hydraulic cylinder |
| Mould Accessories | HASCO Standard |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish, |
| Molding Life | 1,000, 000shots |
| Runner | Cold runner |
| Delivery time | 60work days |
| Packing | wooden case |
Huangyan Jingzheng Mould Co.,Ltd was established in 1998,located in taizhou,Zhejiang Province,China.Jingzheng specialized in making PVC drainage pipe fitting mould,PPR water supply pipe fitting mould,Rain water gutter fitting mould,Electrical fittings mould,Ball Valve mould,lrrigation pipe fitting mould,etc.
with efficient mould designers,highly skilled technicians and trained quality control personnel:with high quality steel,strict heat treatment,reliable mould layout and perfect handcraft,Jingzheng has the ability to provide high quality mould with more than 1,000,000shots lifetime.
Good quality and Good service has always been our motto.Honesty and Customers'Interest First has always been our pursuit and business philosophy.Innovation and Advancement has always been our guiding star in this changing world.
Our Advantages:

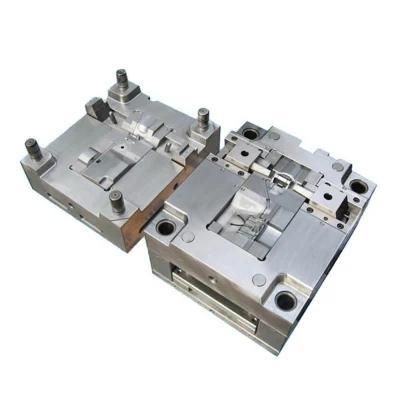

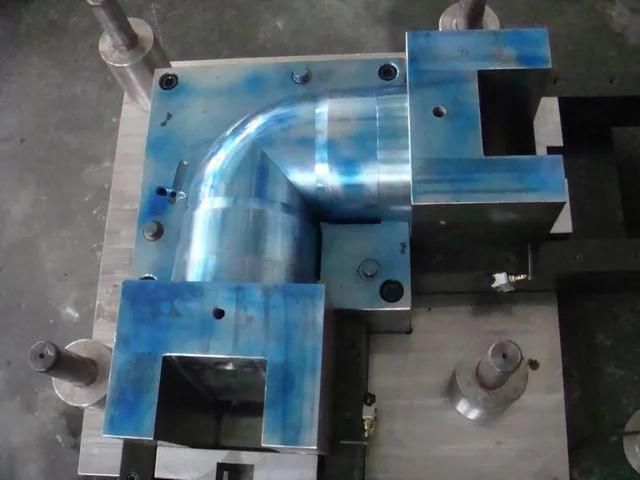

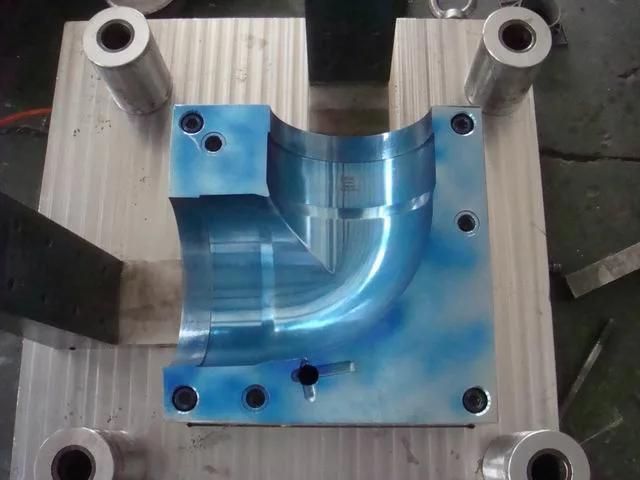

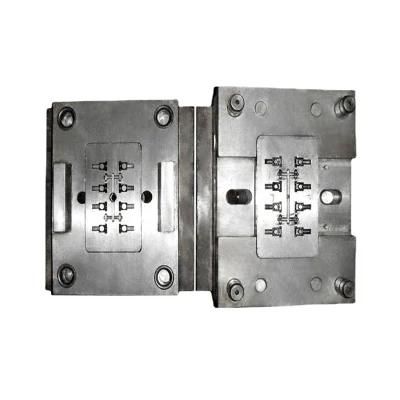

Mould parts:
Our certificates:
Our Patents:
About us:
Packing and shipping:
