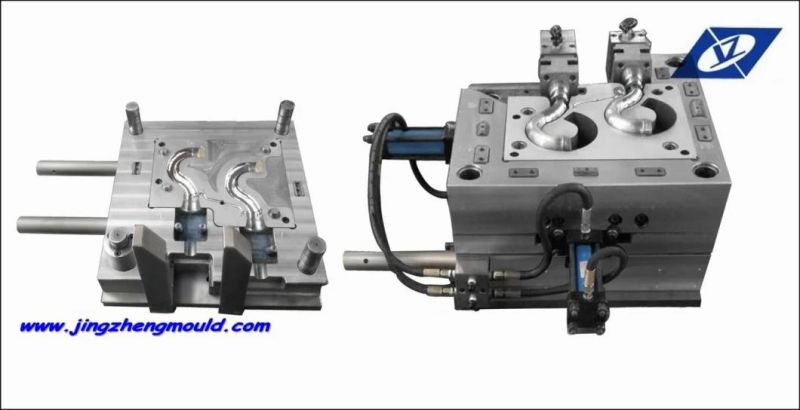

PP Drainage Water Pipe Fittings with Rubber Mould
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Forging Work Steps：Automotive Half Shaft Forming Forging
- Craftwork：The Long Axis Type
- Material：Steel
- Application：Household Appliances
- One-time Molding：One-time Molding
- Warranty：12 Months
Base Info
- Specification：ISO9001: 2000
- Transport Package：Wooden Case
- Size：110mm
- Condition：New
- Customized：Customized
- Metal Color：Black Metal
- Trademark：JZ
- Origin：China
- HS Code：8480719090
Description
Basic Info.
Metal Color Black Metal Customized Customized Condition New Size 110mm Transport Package Wooden Case Specification ISO9001: 2000 Trademark JZ Origin China HS Code 8480719090Product Description
High quality with reasonable price, by using Chinese, Korean, Japan, Germany Standard to make moulds, the products' dimension range from 25mm to as big as 630 mm.
| Name | PP Drainage water pipe fittings with Rubber Mould |
| Plastic material | PP |
| Steel of Cavity & Core | DIN 1.2738 |
| Steel of Mouldbase | S50C. LkM standard^ etc |
| Nos of Cavity | Customized |
| Hardness of Cavity & Core | 48-52HRC |
| Hardness of Wear Parts | 55-60HRC |
| Core pulling system | Motor /oil cylinder/ stripping plate, angel pin^ etc |
| Mould Accessories | DME/HASCO Standard ^ |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish, |
| Molding life | 1.200, 000shots |
| Runner | Cold |
| Delivery time | 55 work days |
| Packing | wooden case |
