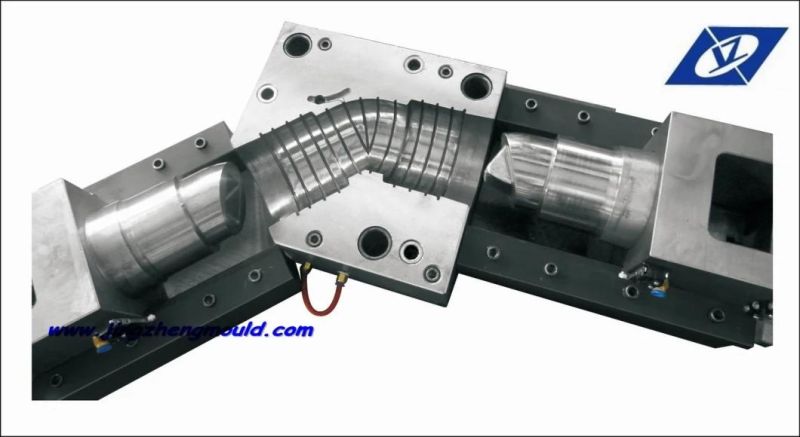

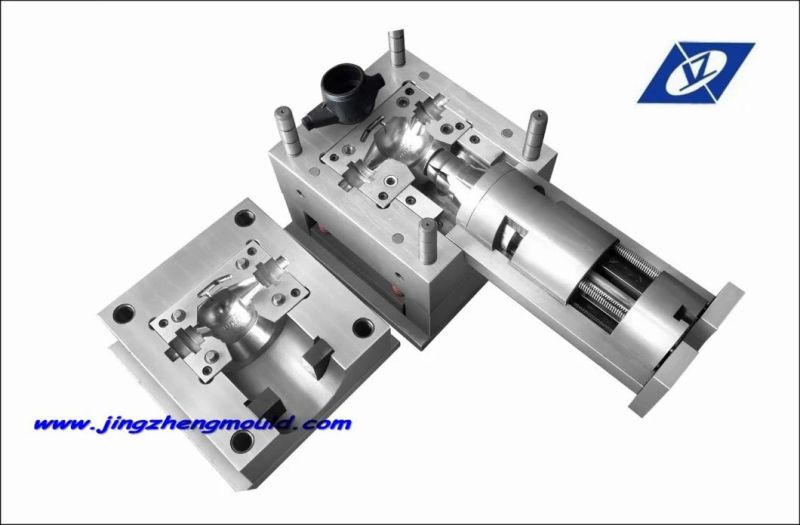

PE Pipe Fitting Mould Drawing Designing
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Plastic Material：PE
- Mould Cavity：Single Cavity
- Surface Finish Process：Polishing
- Shaping Mode：Injection Mould
- Application：Household Appliances
- Runner：Cold Runner
Base Info
- Specification：ISO9001-2000
- Transport Package：Wooden Case
- Customized：Customized
- Standard：HASCO
- Certification：ISO
- Installation：Mobile
- Design Software：AutoCAD
- Model NO.：JZ
- Trademark：JZ
- Origin：China
- HS Code：8480719090
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. JZ Design Software AutoCAD Installation Mobile Certification ISO Standard HASCO Customized Customized Transport Package Wooden Case Specification ISO9001-2000 Trademark JZ Origin China HS Code 8480719090 Production Capacity 100 Sets/MonthProduct Description
High quality with reasonable price, by using Chinese, Korean, Japan, Germany Standard to make moulds, the products' dimension range from 25mm to as big as 630 mm.
| Name | irrigation moulds |
| Plastic material | PE |
| Steel of Cavity & Core | DIN 1.2316/ DIN 1.2738/DIN 1.2344 /M300/ 718/ P20...etc |
| Steel of Mouldbase | S50C. LkM standard… etc |
| Nos of Cavity | Customized |
| Hardness of Cavity & Core | 48-52HRC |
| Hardness of Wear Parts | 55-60HRC |
| Core pulling system | Motor /oil cylinder/ stripping plate, angel pin… etc |
| Mould Accessories | DME/HASCO Standard … |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish, |
| Molding life | 500, 000-1.200, 000shots |
| Runner | Cold or Hot |
| Delivery time | 35-75work days |
| Packing | wooden case |
| Payment | T/T L/C |
Our advantages:

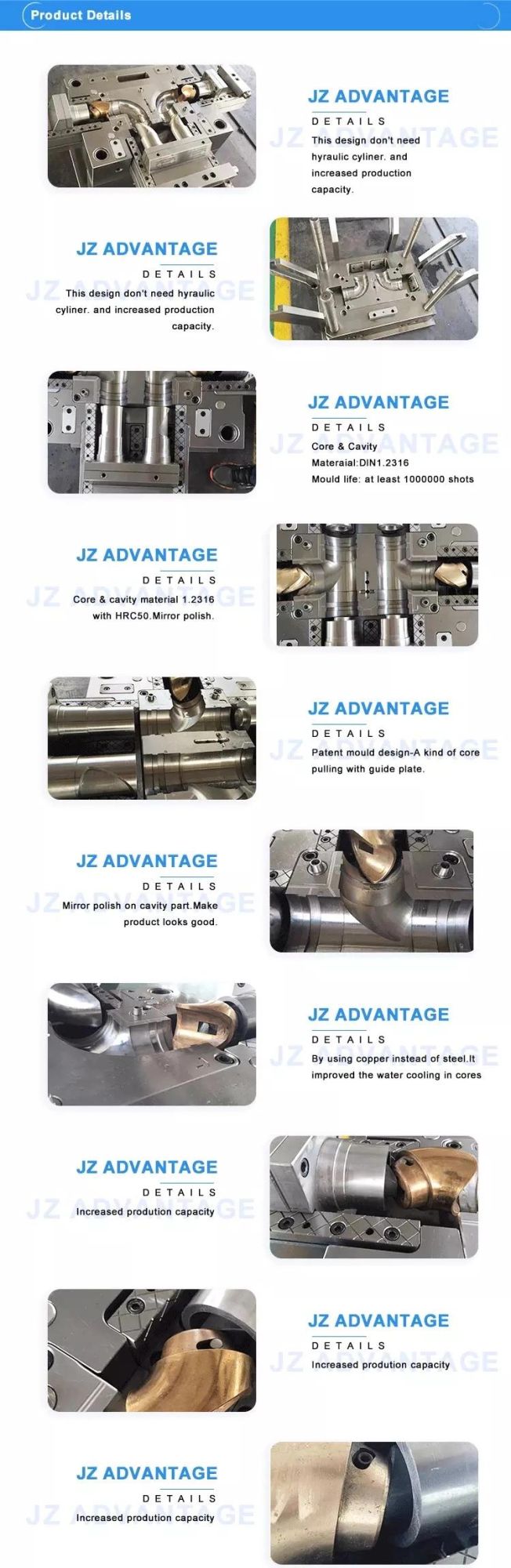

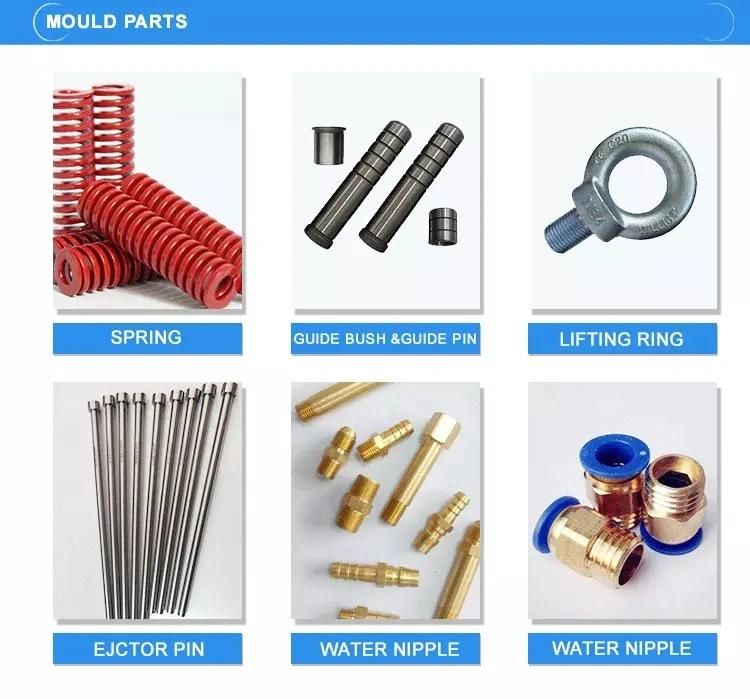

Mould parts:
Our certificates:
Our patents:
About us:
Packing and shipping:
