• Specification：0.02" ~0.236"
• Transport Package：Carton
• Case：28X12 , 28X10
• Customized：Customized
• Warranty：1 Year
• Application：Hardware, Wires and Cables
• Surface Treatment：Polish
• Model NO.：D6-D24
• Trademark：HG
• Origin：China
• HS Code：8207201000
• Production Capacity：2000pieces,Year

Reduction ratio
Wires (Reduction angle)5~8%8~12%12~16%16~25%25~35%Bearing Length(%)Gold,silver,lead,zinc14°16°18°22°24°20%~40%Copper, Aluminum,nickel10°12°14°18°22°Stainless steel,Copper alloys, Aluminum alloys9°11°13°16°18°30%~70%High carbon steel8°10°12°15°18°Tungsten,Molybdenum, Platinum,Ni-Cr alloys10°10°12°14°16°

Diameter (inch)	Diameter ( mm)	ADDMA	Tolerance(mm)	Roundness(mm)
0.0039~0.0197	0.10~0.50	D6	0.001	0.001
0.0118~0.0394	0.30~1.00	D12	0.001	0.001
0.0197~0.0591	0.50~1.50	D15	0.002	0.001
0.0315~0.0787	0.80~2.00	D18	0.003	0.002
0.0472~0.1220	1.20~3.10	D21	0.004	0.002
0.0591~0.1732	1.50~4.40	D24	0.005	0.003
0.1299~0.2283	3.30~5.80	D27	0.005	0.004
0.2008~0.3543	5.10~9.00	D30	0.007	0.005
0.3150~0.4921	8.00~12.50	D33	0.010	0.008
0.3150~0.5000	8.00~12.70	D36	0.010	0.010
0.3150~1.1417	8.00~29.00	D36+	0.015	0.015

3.Inner Geometry

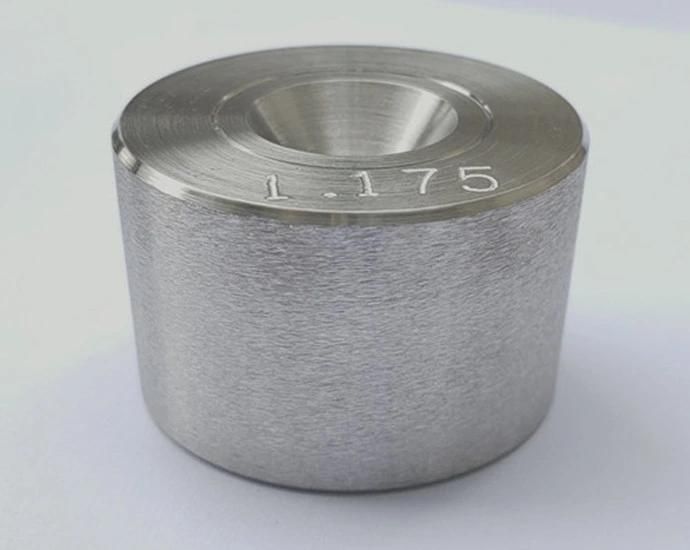

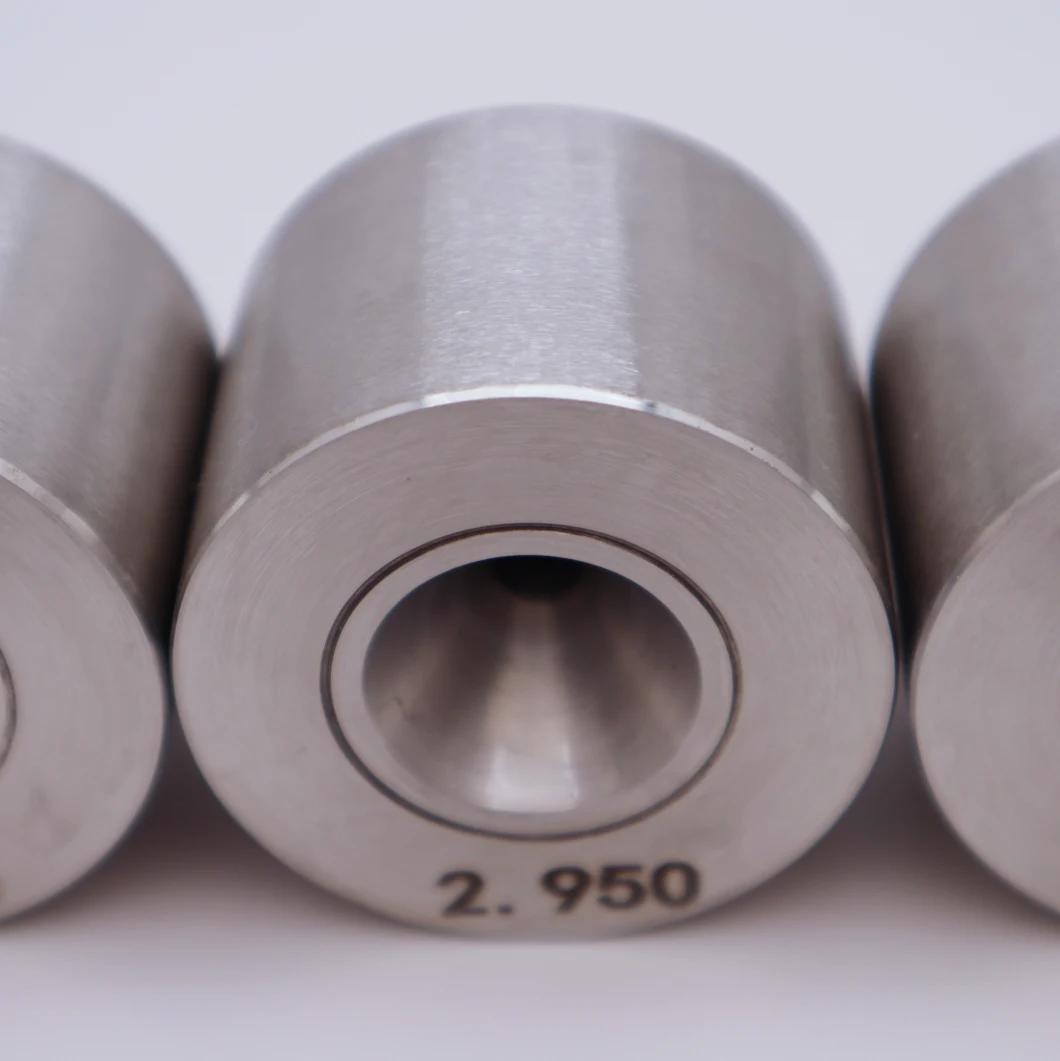

Inner geometry of PCD die is combined with "Entrance,approaching,reduction,bearing length and exit "part.
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f.  Exit: Wire exiting.

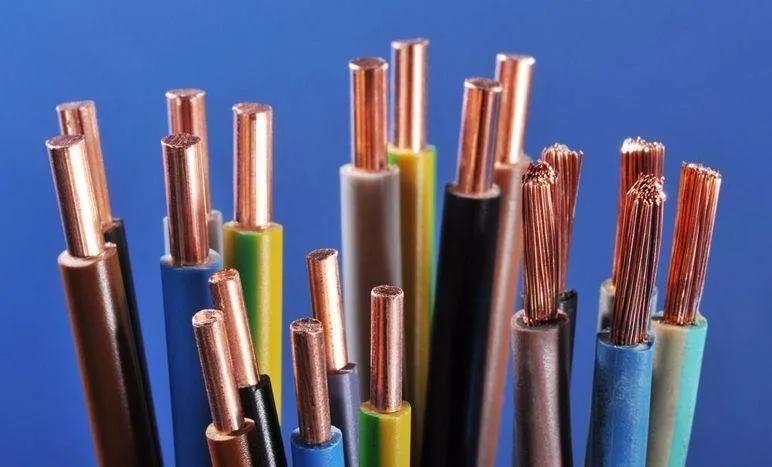

4.Wires and Cables

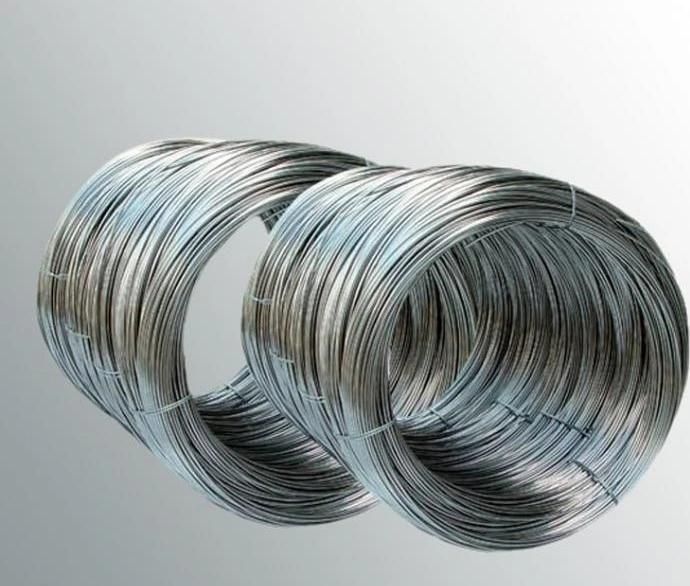

Stainless steel 316 is hard so the dies will bear much press in wire drawing process. In this case, firstly of all ,the PCD blanks should be with high strength then reduction angle shoule be smaller.


5.Advantages
23 years' experience in die making
First class PCD blanks
Imported sintering powder
Advanced machines, 100% inspected
Good after-sales service
Technical assistance
