Diamond Wire Drawing Dies with Tiny Cases

Zhengzhou Hanguang Super Hard Tools Co., Ltd.
  • Shaping Mode：Grinding
  • Material：Diamond
  • Type：Wire Drawing Dies
  • After-sales Service：Repairing Dies
  • Hole Type：Round Mould
  • Cavity：Single-cavity

Base Info

  • Specification：0.0007"-0.059"
  • Transport Package：Carton
  • Cases：9.525X6.35 (mm )
  • Customized：Customized
  • Warranty：1 Year
  • Application：Hardware, Wires and Cables
  • Surface Treatment：Polish
  • Model NO.：0.018mm~1.50 mm
  • Trademark：HG
  • Origin：China
  • HS Code：8207201000
  • Production Capacity：100000pieces,Year

Description

Size(inch)Size(mm)Tolerance(mm)Roundness(mm)≤0.0039≤0.1000.0010.00050.00398~0.00790.101~0.2000.0010.00050.00791~0.01970.201~0.5000.0020.00100.01972~0.03940.501~1.0000.0030.0015            Diamond Wire Drawing Dies with Tiny Cases
3. Inner Geometry
 Diamond Wire Drawing Dies with Tiny Cases
Inner geometry of natural diamond dies combined with "Entrance,approaching,reduction,bearing length and exit part".
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f.  Exit: Wire exiting.

4. Very Small Case
    Diamond Wire Drawing Dies with Tiny Cases

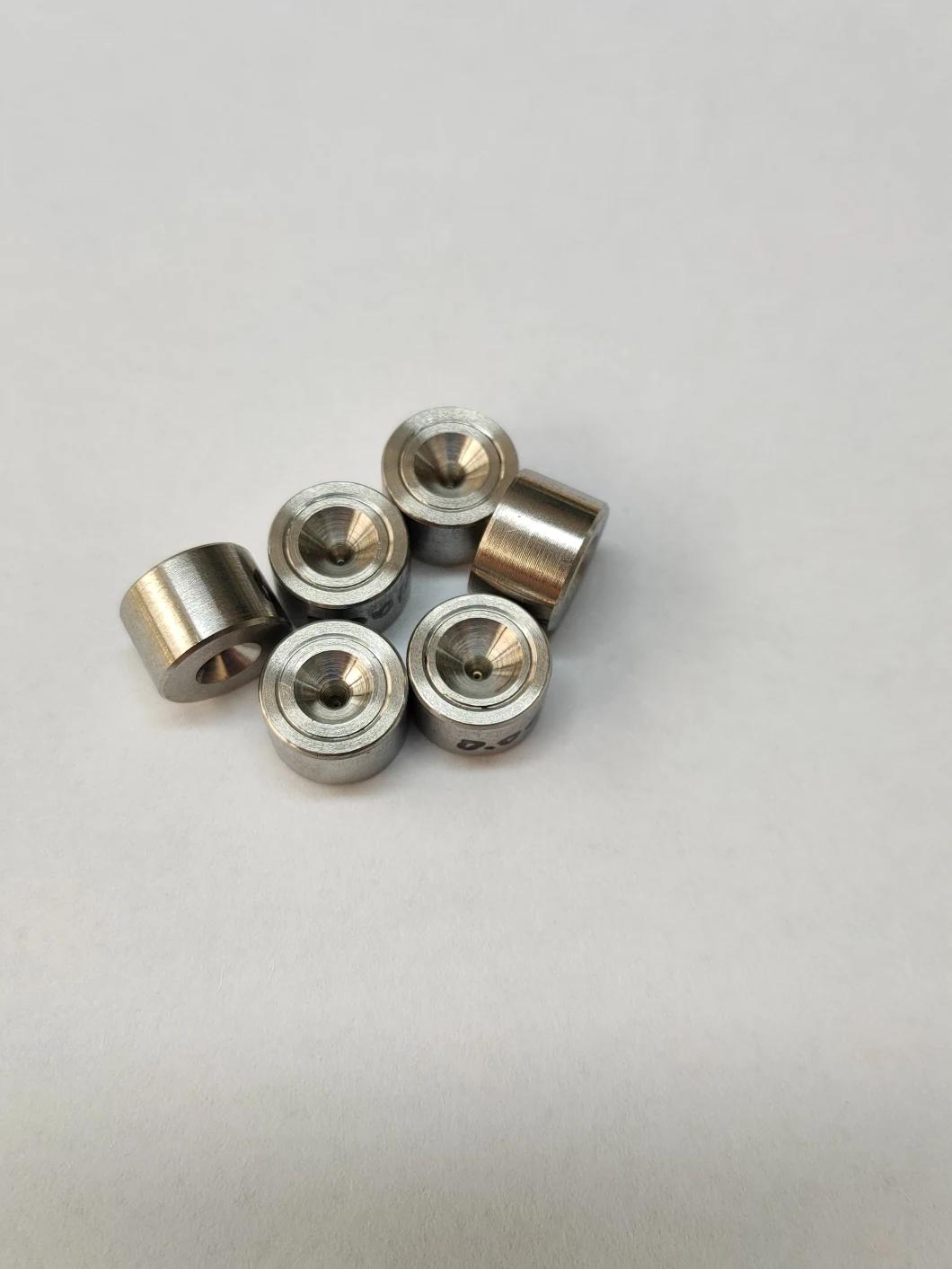

 9.525x6.35 (mm) is the smallest case we ever made for natural diamond dies. It spends more time to process than normal 25x 10, 28x10, 28x122 mm cases. These dies will be used for a special drawing machine.
