• Specification：SGS, ISO
• Transport Package：Wooden Case
• Stamping Material：Stainless Steel, Aluminum Alloy, Brass, Copper etc
• Mould Material：Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
• Design Software：Auto CAD, Cae, PRO-E, Solidworks, Ug etc
• Standard：Hasco, Dme
• Tolerance：+-0.03mm
• Model No：Hh085
• Customized：Customized
• Packing：Wooden Case
• Lead Time：45 Days
• Name：Aluminum Stamping Dies, Progressive Stamping Tool
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：Normal Speed
• Mold Cavity Technology：CNC Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：HH085
• Trademark：huihai auto
• Origin：Zhongshan
• HS Code：8207209000
• Production Capacity：350 Sets ,Year

Basic Info.

Model NO. HH085 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Name Aluminum Stamping Dies/ Progressive Stamping Tool Lead Time 45 Days Packing Wooden Case Customized Customized Model No Hh085 Tolerance +-0.03mm Standard Hasco, Dme Design Software Auto CAD, Cae, PRO-E, Solidworks, Ug etc Mould Material Cr12, Cr12MOV, DC 53, Skh-9, 45# etc Stamping Material Stainless Steel, Aluminum Alloy, Brass, Copper etc Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin Zhongshan HS Code 8207209000 Production Capacity 350 Sets /Year

Product Description

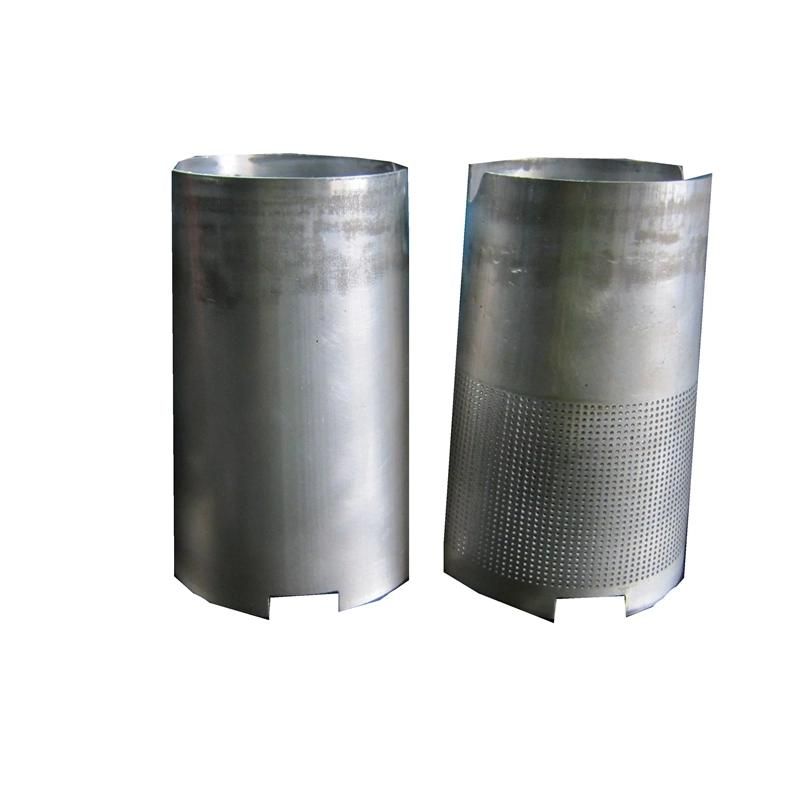

Aluminum stamping dies/ progressive stamping tooling

Huihai auto has manufactured precision, high-quality, reliable and cost-effective aluminum stamping dies/ progressive stamping tooling for the automotive and home appliance for more than ten years. Our precision aluminum stamping dies/ progressive stamping tooling make your productivity, quality, design and economy as our important consideration. We can design and manufacture the simple or complex stamping dies or moulds fitting your exact applications.


Product Details:

Name	aluminum stamping dies/ progressive stamping tooling
Mould Type	single stamping dies, progressive dies
custom	can help our customers to customize their own mould drawing
Design Software	2/3 D, Auto CAD, CAE, PRO-E, Solidworks, UG, Catia, MOLDFLOW, ANYCASTING
Mould Material	cr12, cr12mov, DC 53, SKH-9, 45# etc
Stamping Material	stainless steel, aluminum alloy, brass, zinc, carbon steel, copper etc
Die Standard	HASCO, DME
Cavity	1,2, 5,16,50….depends on your application
Die Life	500,000 shots
Certificate	ISO9001:2008, SGS
Package	wooden case
Payment Term	T/T, western union
Finish	polishing, heat treatment, TD coating, electroplating, chrome coated, painting, zinc-plating etc
Processing machines	CNC machining center, EDM, WEDM, WEDM-HS, linear cutting machine, radial drill, sawing machine, grinding machine, milling machine, lathe, punch etc
Inspection Equipments	CMM, Rockwell-hardness-tester, projector, Dial Calipers, slide Calipers etc

zhongshan huihai automatic equipment company limited offers the professional mould projection flow:

1. place the aluminum stamping dies/ progressive stamping tooling order and pay the deposit;
2. our drawing or customers drawing;
3. customers check the design and confirm;
4. production process and the sample;
5. customers check the sample and confirm;
6. receive the balance and arrange the shippment;
7. offer afer sales services.

we want to be your preferred aluminum stamping dies/ progressive stamping tooling builder or parts suppliers, we ensure to deliver   quality components to meet your deliveries.

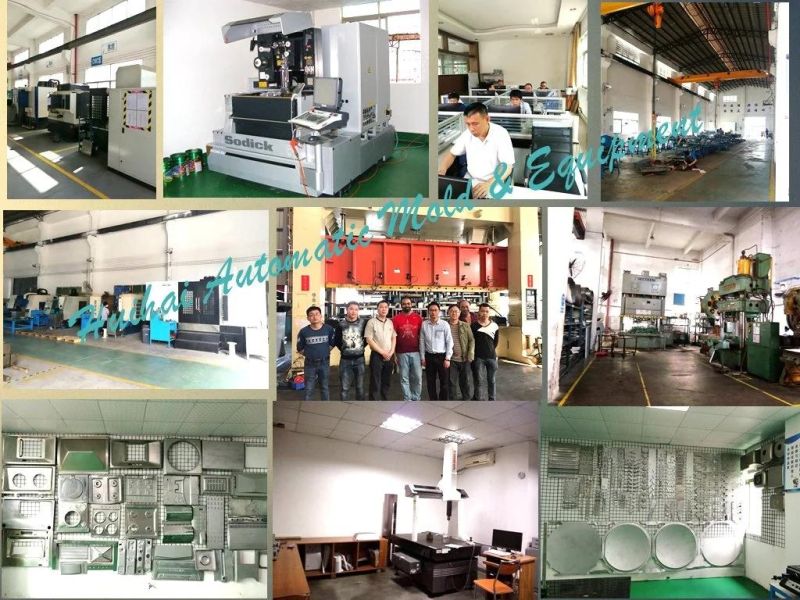

Processing Equipments


Machine Equipment	QTY	Tapping  center	1
CNC	5	Plate shears	1
WEDM	2	Mechanical Press	13
WEDM-HS	2	Hydraulic Press	2
EDM	3	Inspection Equipment	Qty
Radial drill	8	CMM	1
Sawing machine	1	projector	1
Grinding machine	4	Rockwell-hardness-tester	1
Milling machine	2	Dial Calipers(0-300mm)	8
Bench drill	4	Slide Calipers(0-1000)	6
lathe	2	Pound scale	1

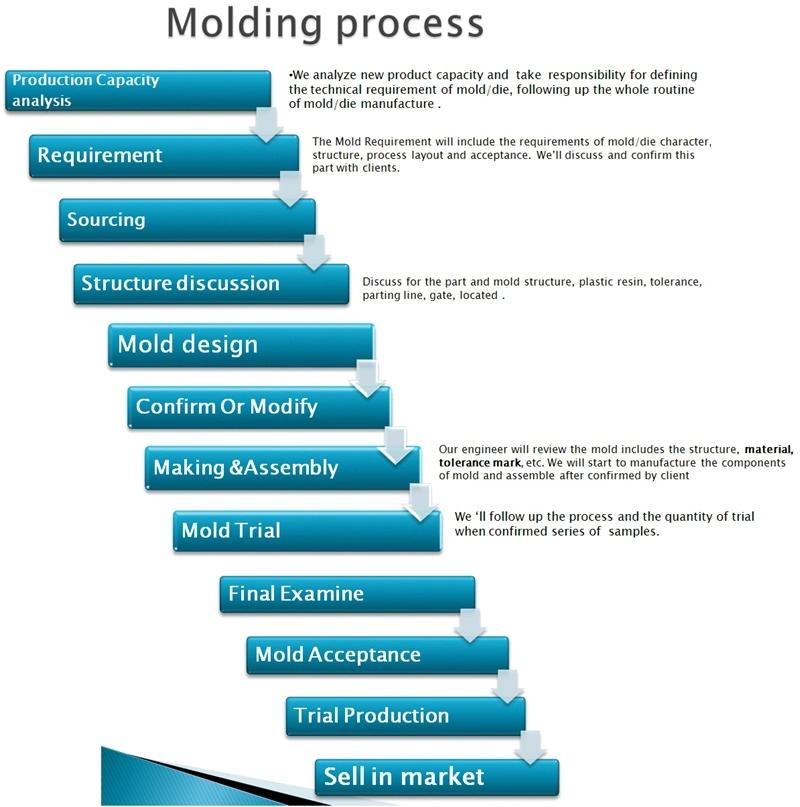

Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.



Time Control


• Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour.
• The Parts we'll take into consideration

Overseas Clients:




WELCOME TO ENQUIRE AND TAKE MORE...
