• Transport Package：Wooden Boxed
• Port：Ningbo
• Delivery Time：45days
• Supply Ability：10sets Per Year
• Mould Lif：3millon Shots
• Mould：P20
• Brand Name：Yudo
• Model Cavities：24
• Customized：Customized
• Standard：DME
• Installation：Semi Fixed
• Design Software：UG
• Model NO.：JX201812141605
• Trademark：custom, or jiaoxiang
• Origin：China Mainland
• Production Capacity：500sets,Year

Basic Info.

Model NO. JX201812141605 Design Software UG Installation Semi Fixed Standard DME Customized Customized Model Cavities 24 Brand Name Yudo Mould P20 Mould Lif 3millon Shots Supply Ability 10sets Per Year Delivery Time 45days Port Ningbo Transport Package Wooden Boxed Trademark custom, or jiaoxiang Origin China Mainland Production Capacity 500sets/Year

Product Description

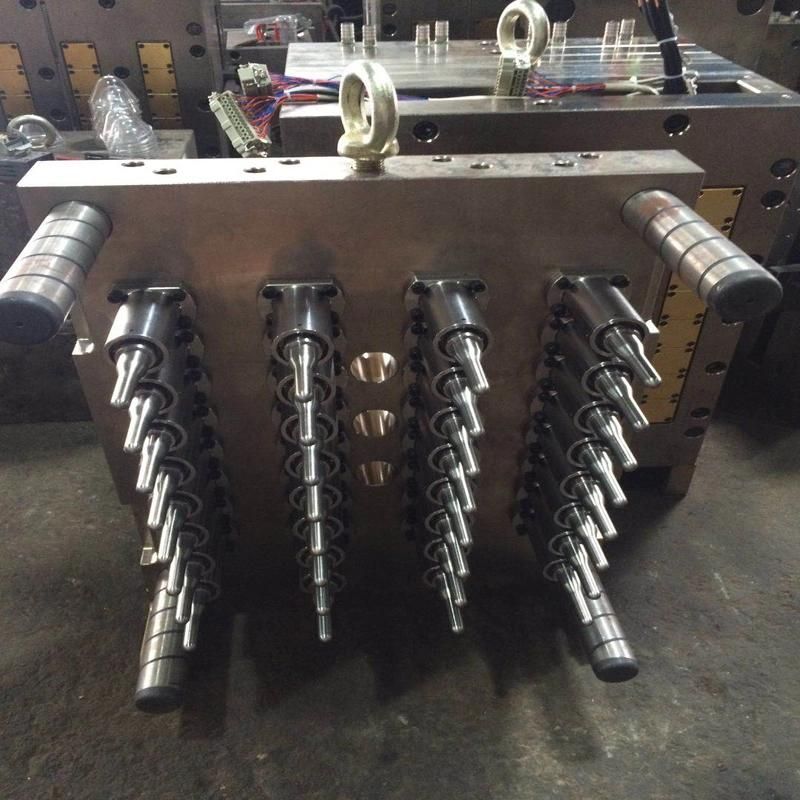

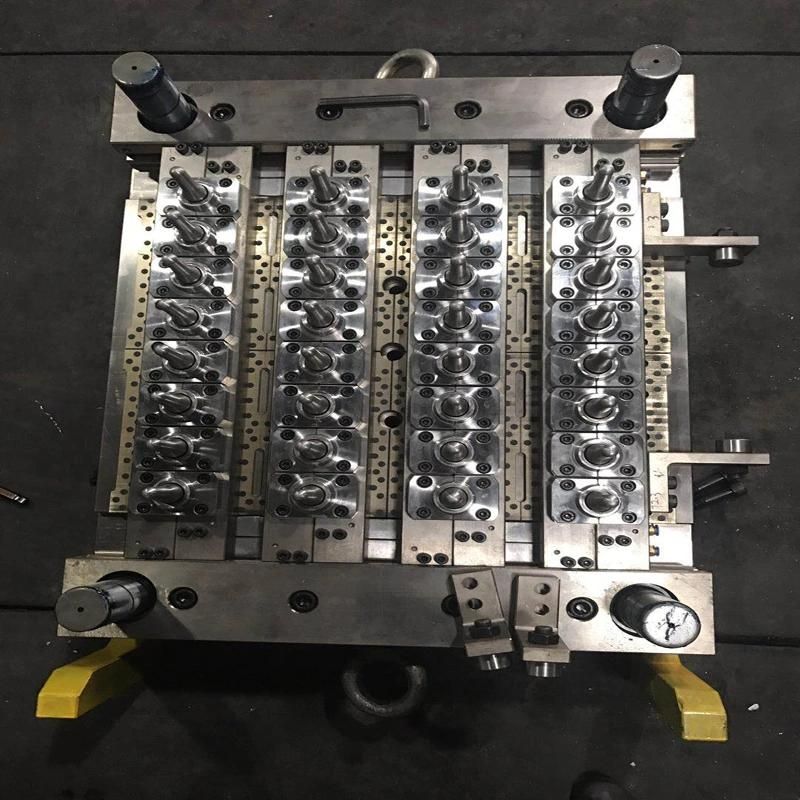

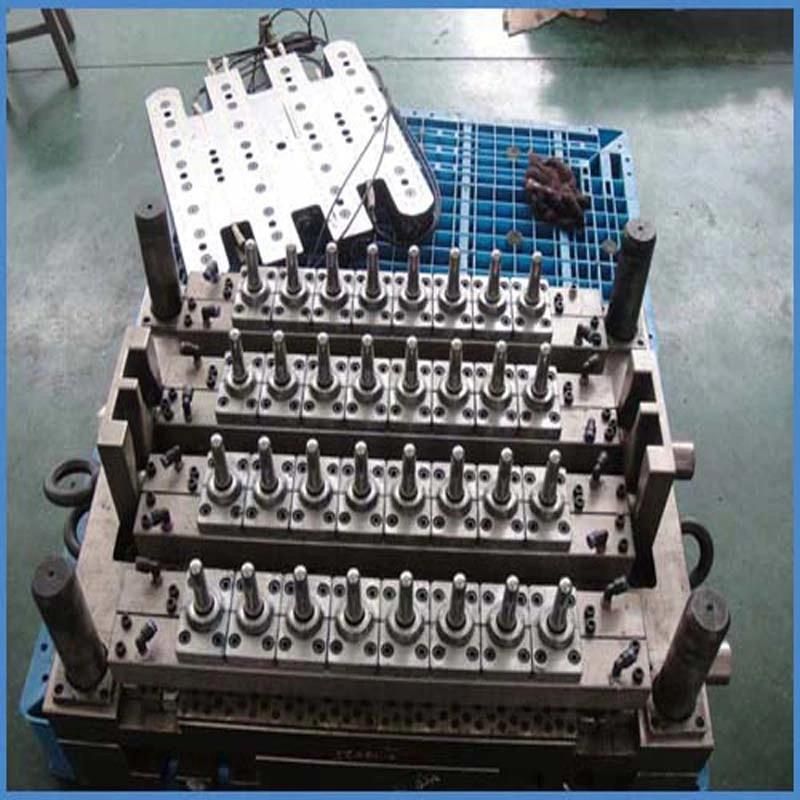

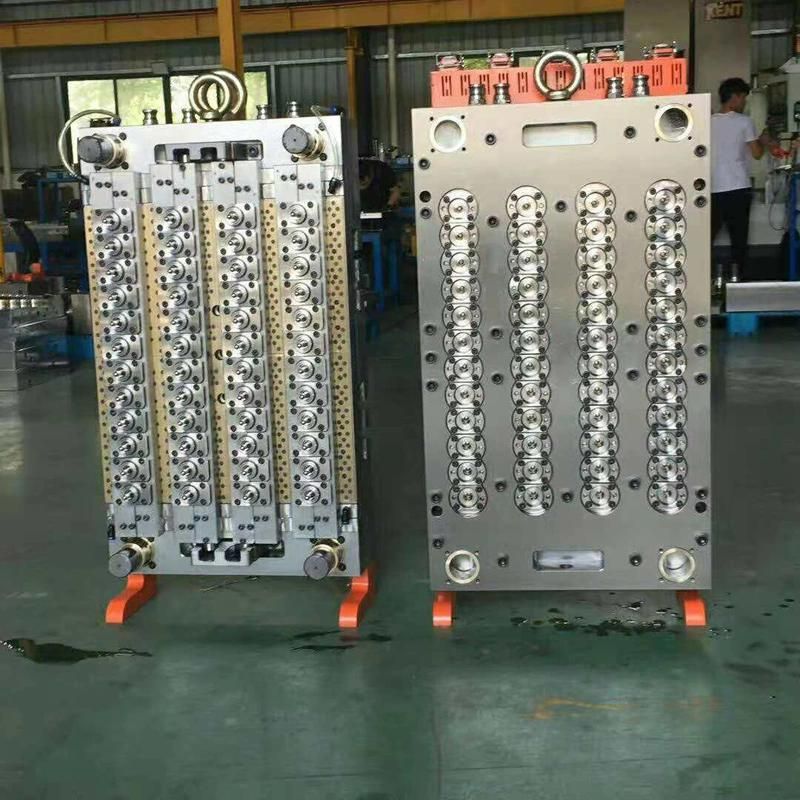

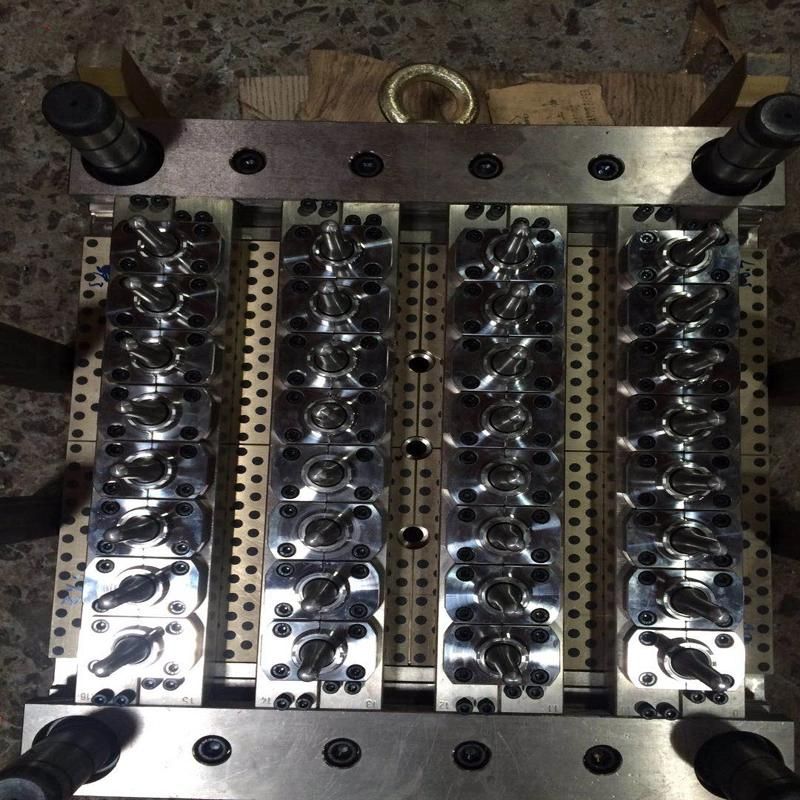

 48cavity 2019sale Hot Runner Water Bottle Mould
Shaping mode: Plastic Injection Mould

Product Material:  Steel
Cavity quantity:1-96 cavities
Main mould base :P20 steel (Nitrogen treatment, HRC 28-32 degree)
Core (punch) and cavity:S136  (Vacuum quench treatment, HRC 43-52 degree)
Screw neck (lip):S136
Heating plate: H13 steel , Chinese standard manifold.
Heating ring: ROTFIL from Italy.
Temperature controller: PID voltage temperature controller
Preform mould configuration Adopted European mould structure: PET materials go into nozzle tip straightly to improve mould cycle time.
Cooling system on cavity, core. If u require, we also design the cooling system on neck (slip).
Preforms drop through injection machine central ejector automatically
The controller heat Individual cavities, runner and sprue.
One Temperature zone control one point temperature.
Double-locked, inter-changeable mould components;
Usage life (guarantee):3,000,000 shots-5,000,000 shots
Certification: ISO9001
Country of origin: China
Brand name: JiaoXiang
Warranty Period:one year
Delivery time:30-45 days
Shipping Port:FOB Ningbo FOB Shanghai
MOQ: 1 set pet preform mould
Packing details: 1. Outside package: Standard wooden cases;
2. Inner package: Stretch waterproof film & Each Mold painted anti-rust oil.
3. Spare parts together with the mold shipment packed in wooden cases
Payment T/T: 30%deposite, 70% balance after approval of all types of samples but before delivery.
Mould features: 1)No cutting of valve gate is employed to reduce the labor cost 2)advanced hot runner system assures lower level of AA value  3)Reasonable-designed cold water channels increase cooling effect and shorten the cycle time.
JiaoxiangMould is a famous enterprise in offering quality 96cavities hot runner needle valve preform mould made in China, which is also one of the leading manufacturers and suppliers of PET perform moulds. We have introduced advanced equipment and technology into our factory in order to offer customers quality mould with unique design. And customized service is also offered.
