• Specification：16cavity, 20cavity, 24cavity, 32cavity, 48cavity
• Transport Package：Wooden Cartons
• Runner：Hot Runner
• Mould Base：P20 S136
• Cavity：Multi Cavity
• Design Soft：Proe Ug CAD
• Surface Treatment：Mirror Polish
• Customized：Customized
• Certification：CE
• Model NO.：JX201812131529
• HS Code：8480490000
• Production Capacity：20,Month

Basic Info.

Model NO. JX201812131529 Certification CE Customized Customized Surface Treatment Mirror Polish Design Soft Proe Ug CAD Cavity Multi Cavity Mould Base P20 S136 Runner Hot Runner Transport Package Wooden Cartons Specification 16cavity, 20cavity, 24cavity, 32cavity, 48cavity HS Code 8480490000 Production Capacity 20/Month

Product Description

 Best Choice Multi Cavities 38mm Huiyuan Bottle Preform Mould for Sale
packaging &delivery
packaging :standard export wooden case
delivery time:shipping in 50days after payment

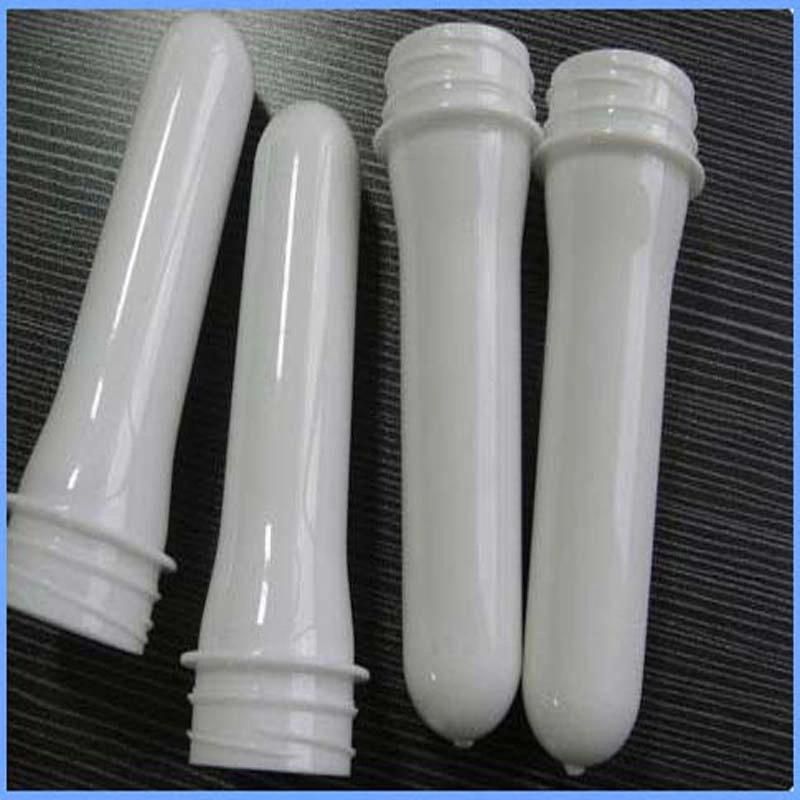

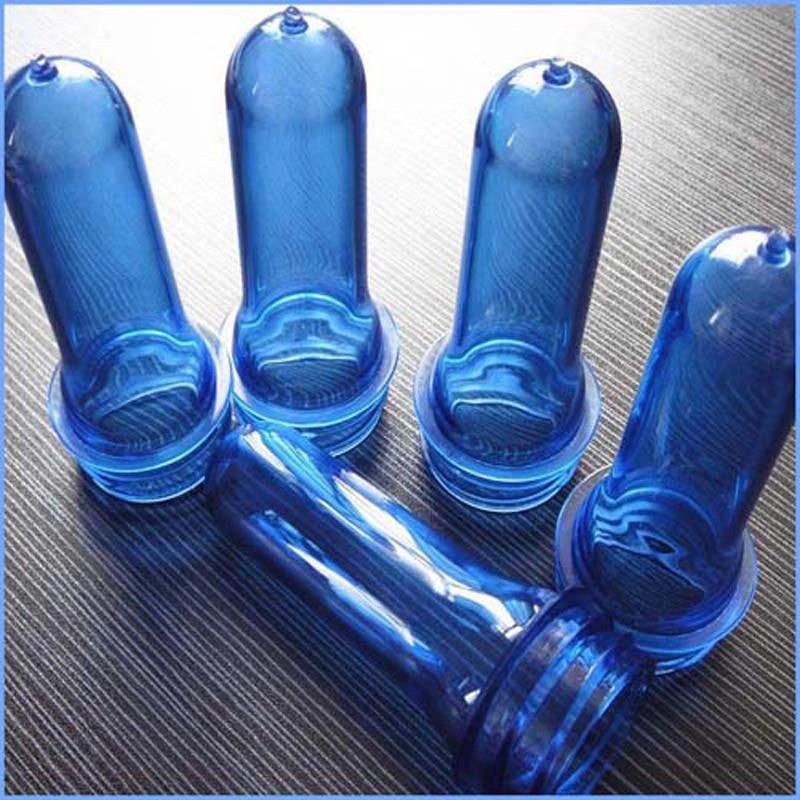

application:preform mold is installed on injection machine and used for producing preform,such as 5gallon preform,28mm pco 1810 mould,1881 preform mould, 38mm 2start preform mould,38mm 3start preform mould,48mm pet preform moulds,PP preform mould,beverage preform mould,water bottle mould,oil bottle preform mould,preform mould with valve gate,preform mould with short tail,preform with long tail,mineral bottle preform mould,edible oil bottle preform mould,3gallon preform mould,5gallon preform mould,preform with different weight,preform mould with 1 to 96cavities.etc.

name	description
preform type	without injection tail,no need cut
runner type	hot runner valve gate
core,cavity and neck material	S136stell(46-50HRC)
mould base	chrome plated P20(mati-rust)
cycle time	18 to23S
off-center control range	+/-0.05mm
mould structure	self lock by each cavity,demoulding automatically
mould life	5millong shots
manufacturing time	45 to 50days
design software	PROE,Cimtron,UG,AUtoCAD,CAM,UG ect
Hot runner	YUDO,SINO,HUSKY,and other famour brand

Mould Feature :
1.stell material: mould main parts adopt S 136 stainless stell ,with high glossy surface finish and hardness up to HRC46-5.mould base is chrome plated P20,and the chrome process helps avoid corrosion.
2.self-lock and shut-off individually for each cavity to guarantee high precision and less defect of the final preform production;and it iss aslo better for maintenance and mould life.
3.off-center adjustment system to ensure preform thickness different<0.05mm
4.hot runner valve gate applied,no need to cut preform tail and it woud save labor cost.
5.hot runner :one temperature zone controls one point teperature;it would preven the white defects on the preform.

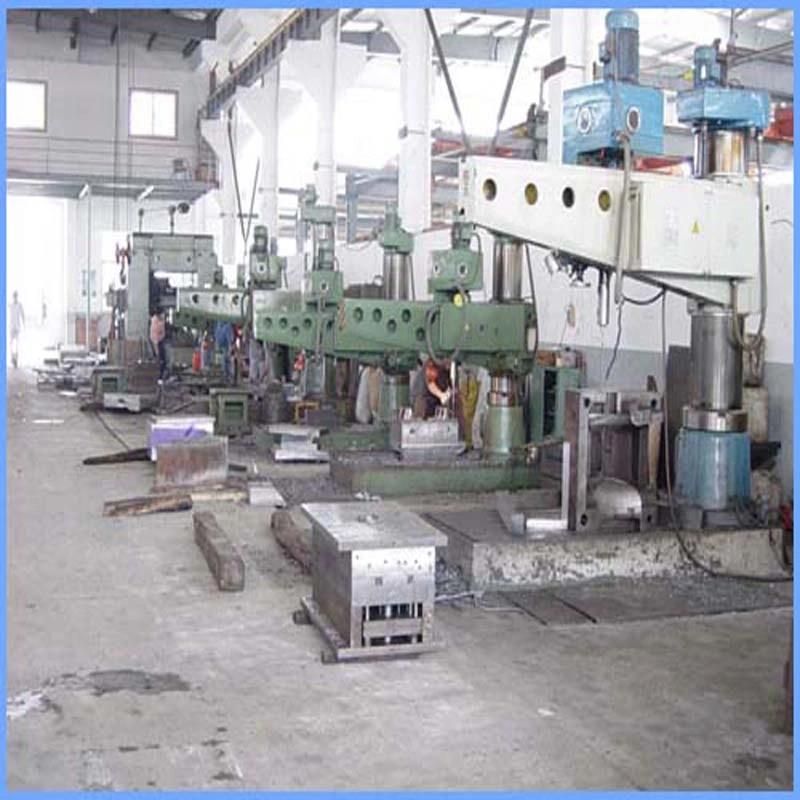

aslo we have advanced processing equipments like moud CAM machining center,CNC engravig and milling machine,high presision electrical sparkle machine,large-sized milling machine.we will surely try our best reduce the cost of moulod accordig to your special requirements,and your mould will be ready in the shortes time through our effective project management.
