8360 Drill Hole Quality Testing Drill Hole Monitor

Beijing Samyon Instruments Co., Ltd.
  • Transmit Power：1000V
  • Mud Ratio：<1.3
  • Type：8360
  • Warranty：One Year
  • After-sales Service：24hours
  • Max Depth：150m

Base Info

  • HS Code：903180
  • Origin：Cn
  • Trademark：SAMYON
  • Transport Package：Case
  • Model NO.：8360
  • Production Capacity：1000 Units Per Month

Description

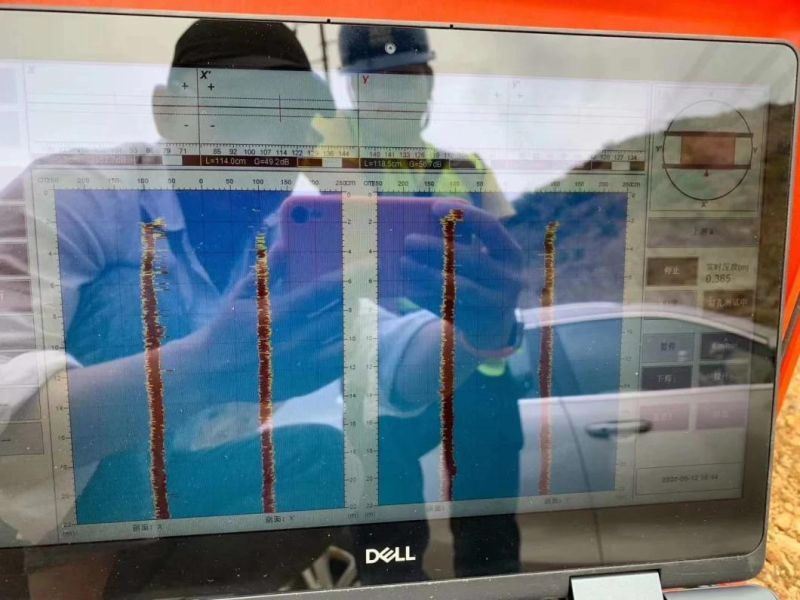

Type 8360Data Logger PC-104 Mainboard ,4 core processor,4G internalData Storage64GB SSD hardwareDisplay 10.4 Inch Industrial LCD 1024×768Operation ModeTouchableSystem WES7 Insert versionScan speed≥20 repeat time/sBand width1-500KUltrasonic wave precision≤0.5%Measurement precision (Level)0.2%FSRange320~7200mmFrequency 45kHz/63kHz/88kHzTransmit Power1000VMax depth150mMax depth resolution≤5mm,Depth error≤1%sound speed calibrationYesData record modeColor image, data fileOutput modePrinter(Color), USB or WIFIPosition GPSWork Mode-20~+70ºCPower supply mode 1.Data logger power
2.220V and 380VData logger size 350mm×250×150mmData logger weight4.5KGUltrasonic sensor size145mm*145mm*350mmUltrasonic sensor weight 15kgMaximum mud density1.3g/cm3Lifting speedLifting up, down adjustable,0-20m/min adjustable, Emergency lift up.Self-stop functionBorehole surface and borehole bottom auto self-stopping function.winch lifting system size 800mm×450mm×380mmWinch lifting system weight80kg
