• Specification：45#, P20, H13, 718, 2738, NAK80, S136etc.
• Transport Package：Wooden Case
• Customized：Customized
• Standard：HASCO
• Certification：ISO
• Installation：Fixed
• Design Software：UG
• Runner：Cold Runner
• Model NO.：UKB020
• Trademark：UK
• Origin：China
• HS Code：8480719090
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. UKB020 Runner Cold Runner Design Software UG Installation Fixed Certification ISO Standard HASCO Customized Customized Transport Package Wooden Case Specification 45#, P20, H13, 718, 2738, NAK80, S136etc. Trademark UK Origin China HS Code 8480719090 Production Capacity 500 Sets/Year

Product Description

Producr Description

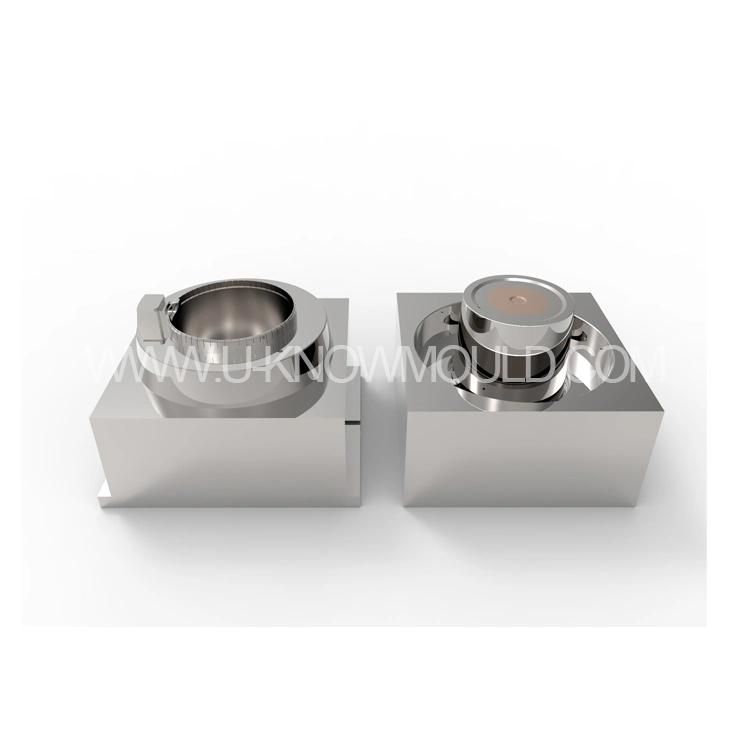

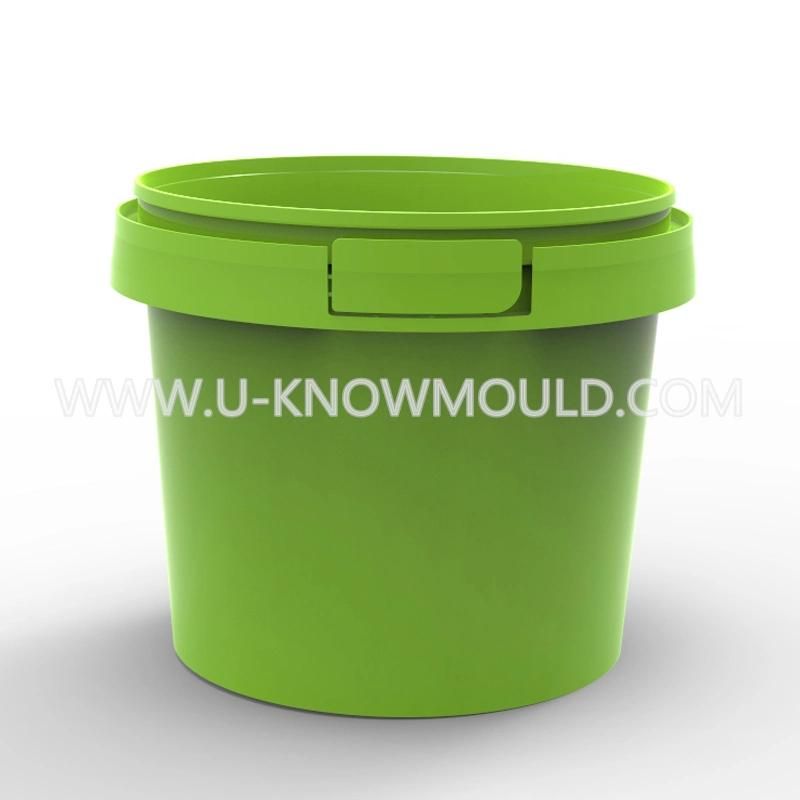

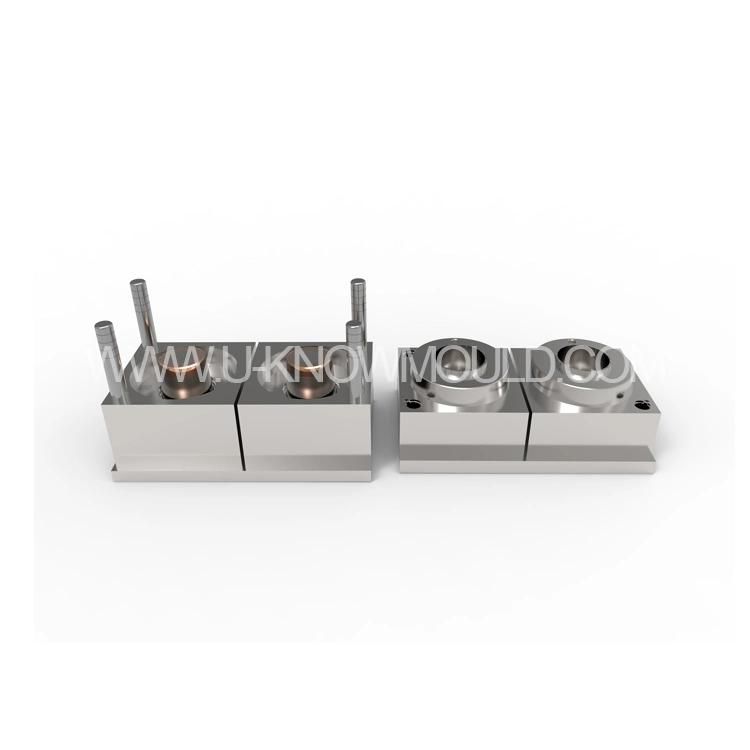

Plastic Injection Painting Pail Mold is combined with lid mold,bucket body mold and handle mold.We offer high quality and good price molds for you.High quality painitng pail mold, mold steel H13, use Be-cu for insert. Guide bush use beryllium copper with graphite material.Key points of plastic painting bucket mold technology.A. Explanation about the uneven thickness of the plastic painting bucket wall is  caused by the eccentric bucket core and the deviation of the bucket from the center.If the cooling is not equal in different areas of the painting bucket mold core and the cavity, this will result in the following difference in molten material. The greater the flow in the hot zone, the smaller the flow in the cold zone. Then the thickness of the barrel wall in the hot zone will be thicker. The temperature difference usually results in at least 0.05 mm. The interlocking height of the painting bucket mold is generally 20% to 30% of the height of the plastic painting bucket .such as 20% for small bucket and about 30% for large bucket molds.The processing technology refers to which processing method should be selected and what should be paid attention to when processing the plastic painting bucket mold core and cavity.Plastic Painting bucket  mold, durable,long mould life, adjustable mold structure, significantly extend the life of the mold, shorten the cycle time . We insist to the make the mold shoulder to hexagonal shape, which is made to avoid the uniform mold thickness of the bucket .And the mold shoulder is equipped with wear-resistant plate, greatly improve the mold stability and mold life. In addition, there are two ejection methods that allow the bucket to be freely released from the mold . The painting bucket we made always auto drop.





About US

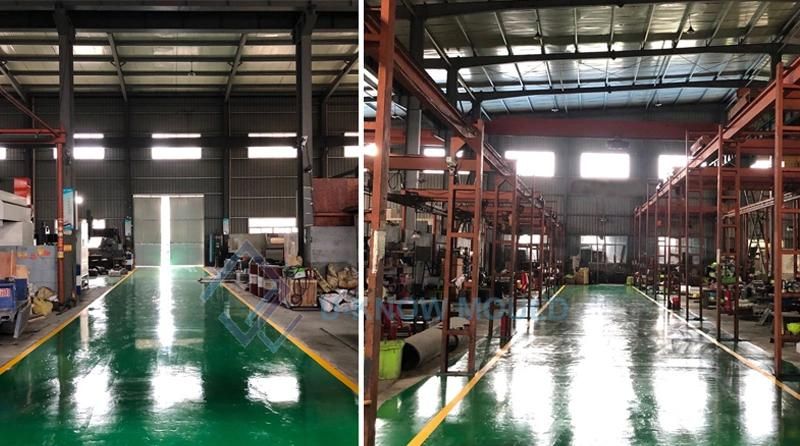

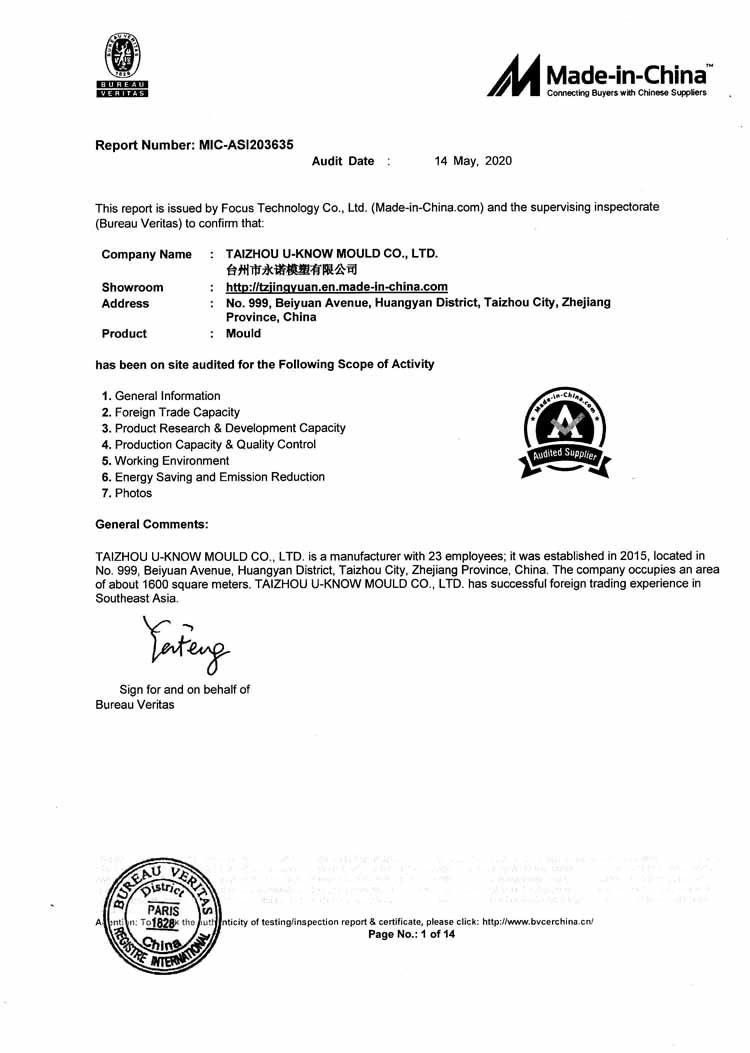

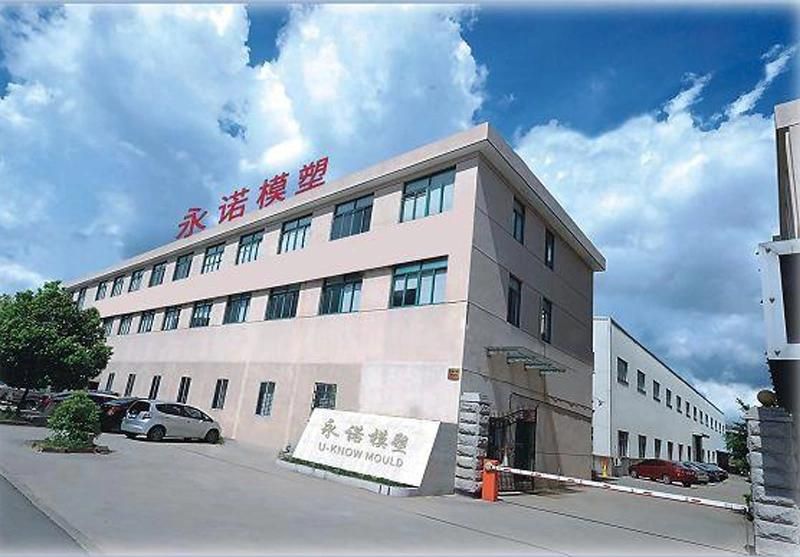

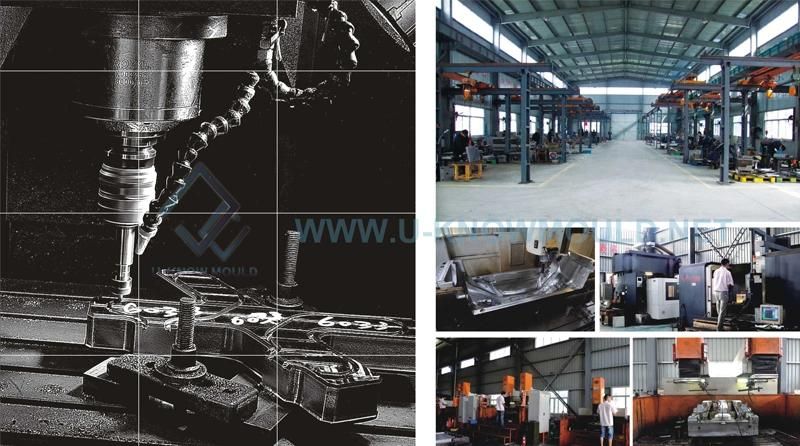

TAIZHOU U-KNOW Mould Co.,Ltd is an enterprise specialied in designning and manufacturing the various kind of injection moulds.U-KNOW MOULD provide the moulds and the plastic products to lots of areas all over the world,such as Southeast Asia,Middle East,Russia,Brazil,Poland,Romania,etc. U-KNOW MOULD owns strong research & develop team and full set production equipment:professional CAD/CAM computer aided design system,Multiple specifications high speed CNC maching center,Closing service,Mirror EDM,Drilling machine,Flat grinder and 120T-2100T injection machines. U-KNOW MOULD has passed ISO9001 certification and has a number of design patents.In recent years,U-KNOW MOULD focused on developing,researching,designing and production of integral molding mould with gas assited injection,which has won praises from customers. Our company sincerely welcomes new and old clients for consultation and cooperation!




Product Line


Packaging & Shipping
Anti-rust oil is painted first, then plastic film, and finally wooden case.
Sent together with the mould:
a)  Mould manual instruction
b)  Engineering drawing in flash disk
c)  One more set of mould spare parts: heater, ejector pin, bush, water nozzle, water pipe, hanging ring.
