• Transport Package：Wood Case
• Standard Part：Punch, Misumi
• Applicable Range：Automotive Mould
• Mould Life：50~100 Shots
• Mould Steel：2738hh,Nak80,738,2344,S136,Sdk61,P20,Px5
• Customized：Customized
• Standard：DME
• Certification：ISO
• Installation：Fixed
• Design Software：UG
• Runner：Hot Runner
• Model NO.：HRD-B20091005
• Specification：ISO9001: 2008
• Trademark：HRD
• Origin：China Qingdao
• HS Code：8207300090
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. HRD-B20091005 Runner Hot Runner Design Software UG Installation Fixed Certification ISO Standard DME Customized Customized Mould Steel 2738hh,Nak80,738,2344,S136,Sdk61,P20,Px5 Mould Life 50~100 Shots Applicable Range Automotive Mould Standard Part Punch, Misumi Transport Package Wood Case Specification ISO9001: 2008 Trademark HRD Origin China Qingdao HS Code 8207300090 Production Capacity 400 Sets/Year

Product Description

Mould Steel:2738HH,NAK80,738,2344,S136,SDK61,P20,PX5 etc.
Mould Life:50~100k shots
Material: PP
Cavity: 1*1

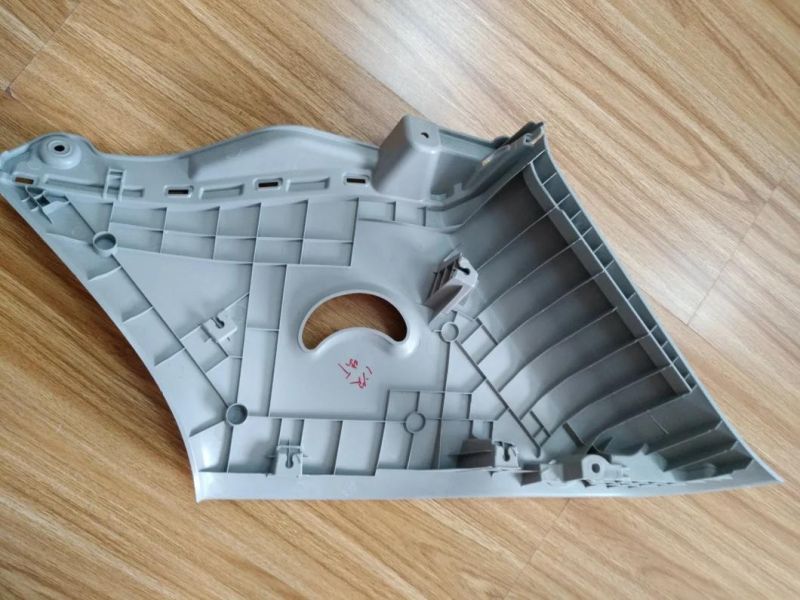

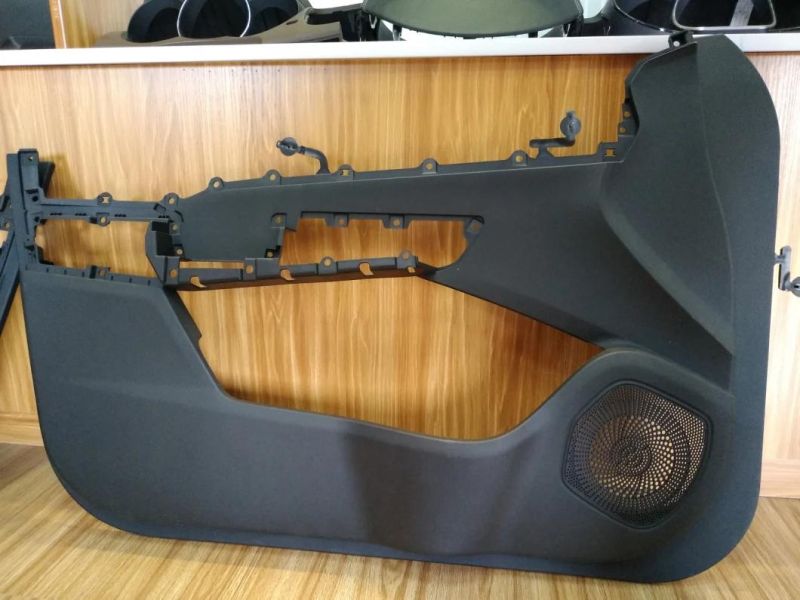

Applicable range: Automotive
Lead Time: 35-45 days
Hot runner: (according to the customer's request and product style)
Standard part: PUNCH, MISUMI
First trial equipment: 380T Injection Machine( moreover we also have 90-700T,750-1300T Injection Machine. There are robots for each 90-380T Injection Machine to meet the customer's bulk production requirement.
Process step: product design-CAE-3D mold design-2D drawing-CAM-milling machine-grinder-drill-CNC-wire cutting-EDM-polishing-trial assembly-grind-assemble-first trial

Our service: product and mould design, Injection mould and parts machining.
Our main customer: Haier, Hisense, Midea, Siemens, SANYO, ELX, Toyota, Kia, Foton, GM Wuling, Great wall, Hyundai, Skyworth.
 Overseas market: Japan, Korea, Thailand, Russia, Germany, England, Norway, Italy, USA, Spain, Turkey, Denmark, Brazil, Argentina, Egypt, South Africa, Iran,Pakistan,India.
Mould painting: according to Customer's request
Package: Wooden Case



Step	Item	Description
1	Quotation	We offer you the stamping die and part quotation according to your details (drawing or sample, material, quantity, weight).
2	Order	If our quotation is competitive, you will place the order.
3	Drawing design	We design the mould structure drawing according to your product drawing or sample, then send to you for confirmation.
4	Mould making	After your confirmation of our drawing, we begin to make the moulds, during manufacturing program, we send you mould building progress with pictures every week, for you to know our process.
5	First trial	We will make the stamping die first trial on time, then send you video, picture and samples for you to confirm.
6	Quality confirm	You will confirm our stamping die quality according to sample. If you need to adjust the product structure, we can help you to change it further.
7	Delivery	Ship the stamping die after it is completely OK, packed by wooden case.
