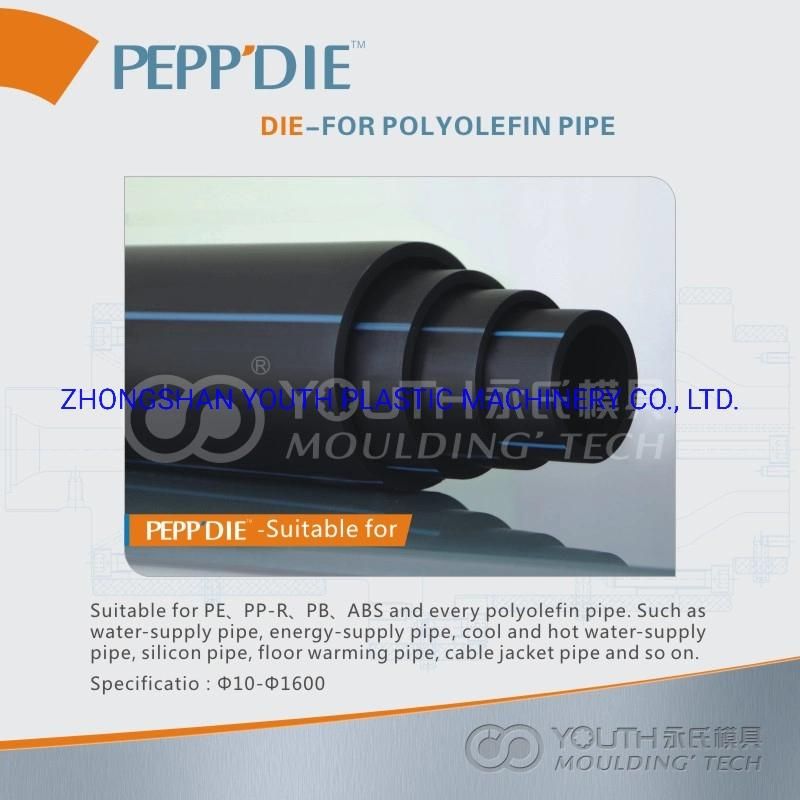

High Speed Head HDPE PPR Pipe Extrusion Dies

ZHONGSHAN YOUTH PLASTIC MACHINERY CO., LTD.
  • Extrusion Mould:Hollow Mould
  • Extrusion:Extrusion
  • Molding Material:Non Metal Mould
  • Material:Steel
  • Application:Household Appliances, Hardware, Electronic, Home Use
  • Nose Application:Profile Molding

Base Info

  • Transport Package:Wood
  • Speed:High Speed
  • Cavity:4 or 2 or 1 Cavity
  • Used for:PVC Pipes
  • Metal Mould:Die Casting
  • Non Metal Mould:Plastic Mould
  • Pressure of Nose:Medium Pressure
  • Outlet:Direct Feeding
  • Model NO.:mold
  • Specification:0.2cbm
  • Trademark:YOUTH
  • Origin:China
  • Production Capacity:10000set,Year

Description

Basic Info.

Model NO. mold Outlet Direct Feeding Pressure of Nose Medium Pressure Non Metal Mould Plastic Mould Metal Mould Die Casting Used for PVC Pipes Cavity 4 or 2 or 1 Cavity Speed High Speed Transport Package Wood Specification 0.2cbm Trademark YOUTH Origin China Production Capacity 10000set/Year

Product Description

High Speed Head HDPE PPR Pipe Extrusion Dies

Model for MouldPipe Spec(mm)ExtruderMax. Output(kg/h)
YS-4-3216-32SJ-65/132250-300
YS-2-6320-63SJ-65/132250-300
YS-1-11050-110SJ-65/132250-300
YS-1-16063-160SJ-80/156300-450
YS-1-25075-250SJ-80/156300-450
YS-1-315160-315SJ-92/188500-750

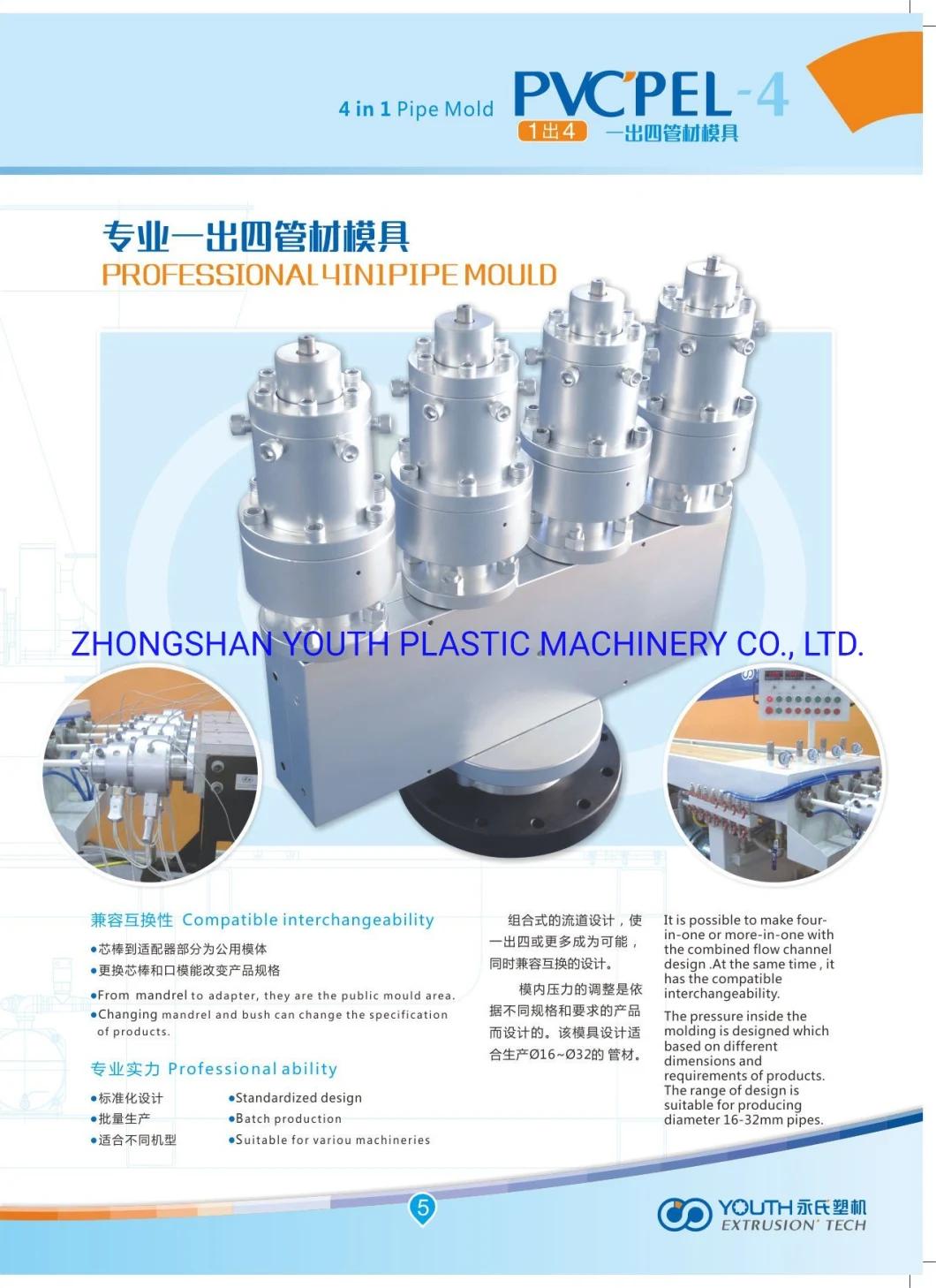

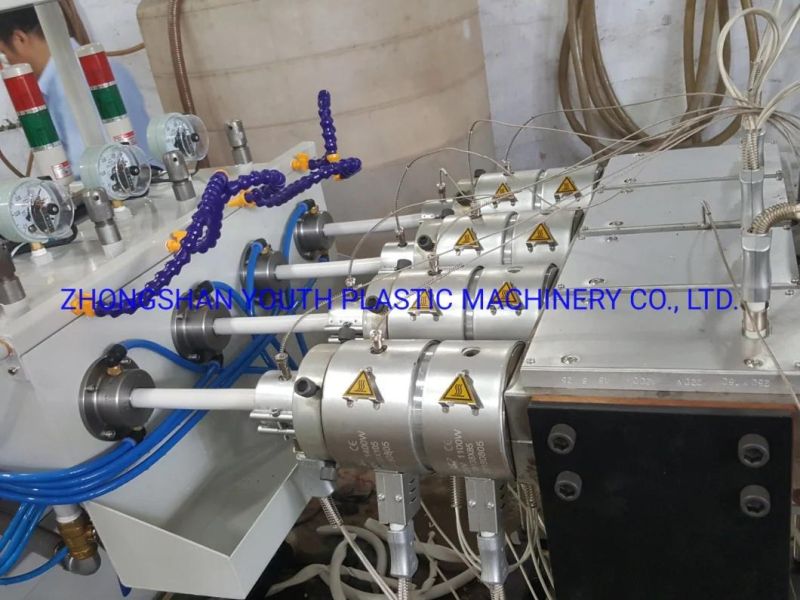

  four cavities
  1. material of torpedo :45#Steel,  Modulating processing, the flow channel will be chrome-plated polished;
  2. Die mateial: 2Cr13, Modulating processing, the flow channel will be chrome-plated polished;
  3. Die structure: PVC special dies with rack;
  4. Specifications: replacement of the corresponding specifications of shape mold, die, mandrel;
  5. The wall thickness of product: replacement of the corresponding wall thickness of the mandrel;
  6. Calibrator material: stainless steel , length 400mm (full vacuum);
  1. High Speed Head HDPE PPR Pipe Extrusion Dies
  1. High Speed Head HDPE PPR Pipe Extrusion Dies
  2.

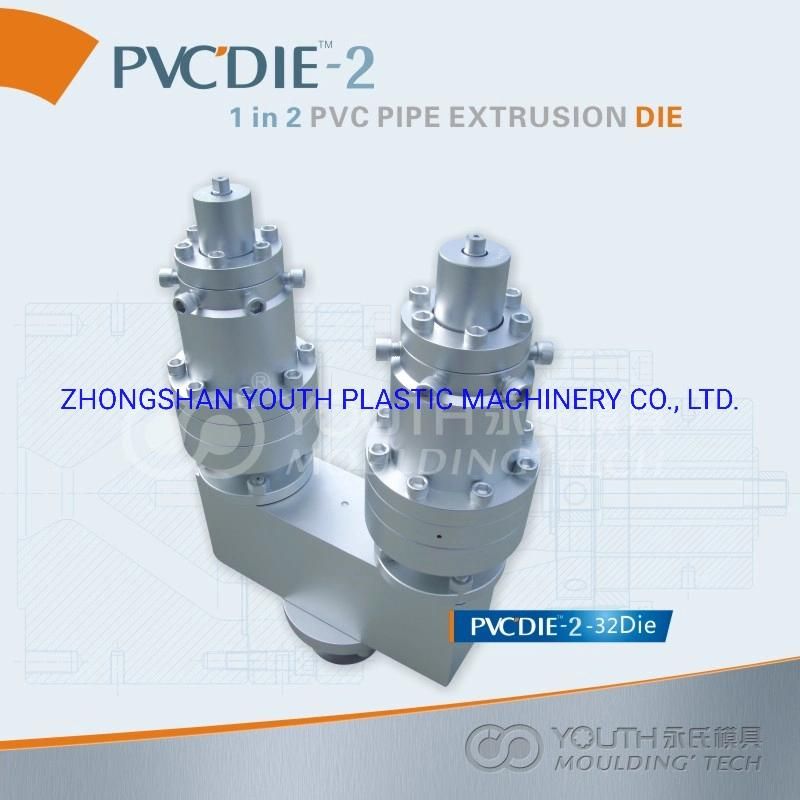

double cavities
  1. material of torpedo :45#Steel,  Modulating processing, the flow channel will be chrome-plated polished;
  2. Die mateial: 2Cr13, Modulating processing, the flow channel will be chrome-plated polished;
  3. Die structure: PVC special dies with rack;
  4. Specifications: replacement of the corresponding specifications of shape mold, die, mandrel;
  5. The wall thickness of product: replacement of the corresponding wall thickness of the mandrel;
  6. Calibrator material: stainless steel , length 400mm (full vacuum);
High Speed Head HDPE PPR Pipe Extrusion Dies
  1. High Speed Head HDPE PPR Pipe Extrusion Dies
  1.

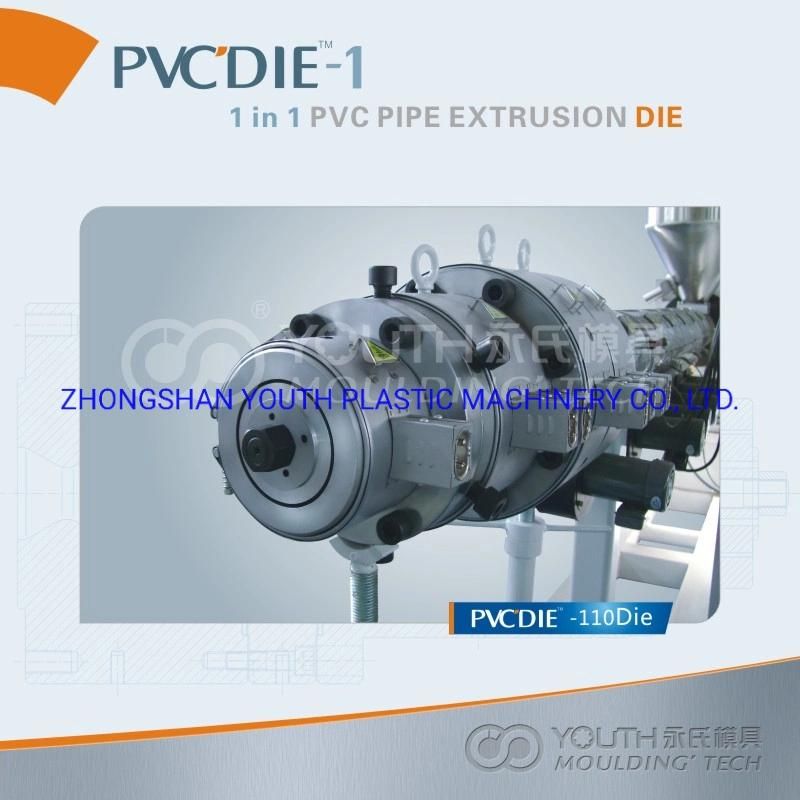

 Single Cavity
  1. material of die :45#Steel, modulating processing, the flow channel will be chrome-plated polished
  2. die configuration: the die with each kinds of wall thickness and mandrel;
  3. die structure: PVC special dies with rack
  4. specifications: replacement of the corresponding specifications of calibrator, die and mandrel
  5. the wall thickness of product: replacement of the corresponding wall thickness of the mandrel
  6. calibrator material: Tin bronze, length 500mm (full vacuum cooling)
