• Transport Package：Wood
• Speed：High Speed
• Cavity：4 or 2 or 1 Cavity
• Used for：PVC Pipes
• Metal Mould：Die Casting
• Non Metal Mould：Plastic Mould
• Pressure of Nose：Medium Pressure
• Outlet：Direct Feeding
• Model NO.：mold
• Specification：0.2cbm
• Trademark：YOUTH
• Origin：China
• Production Capacity：10000set,Year

Basic Info.

Model NO. mold Outlet Direct Feeding Pressure of Nose Medium Pressure Non Metal Mould Plastic Mould Metal Mould Die Casting Used for PVC Pipes Cavity 4 or 2 or 1 Cavity Speed High Speed Transport Package Wood Specification 0.2cbm Trademark YOUTH Origin China Production Capacity 10000set/Year

Product Description

PVC Pipe Extrusion Mould with High Quality

Model for Mould	Pipe Spec(mm)	Extruder	Max. Output(kg/h)
YS-4-32	16-32	SJ-65/132	250-300
YS-2-63	20-63	SJ-65/132	250-300
YS-1-110	50-110	SJ-65/132	250-300
YS-1-160	63-160	SJ-80/156	300-450
YS-1-250	75-250	SJ-80/156	300-450
YS-1-315	160-315	SJ-92/188	500-750

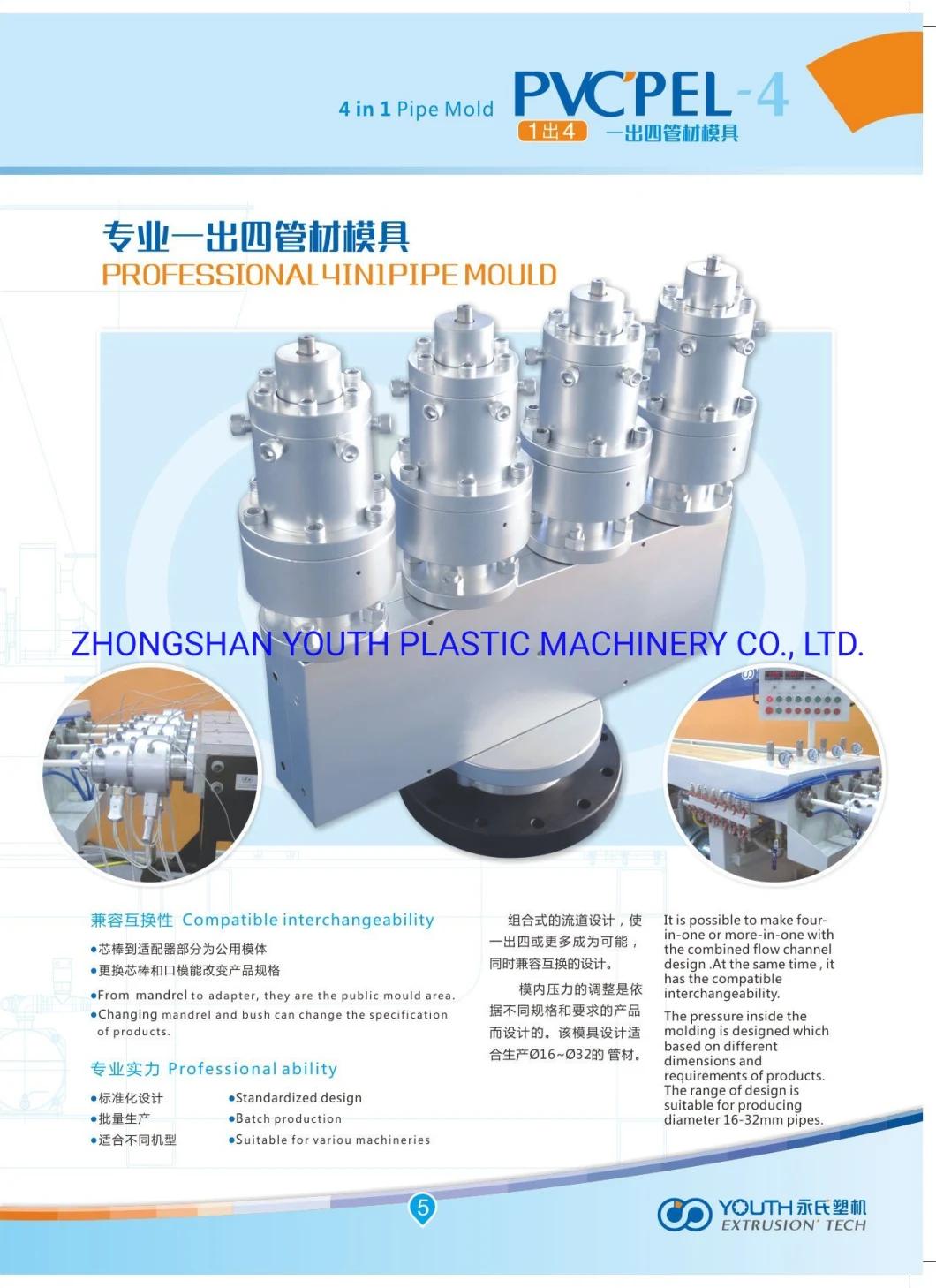

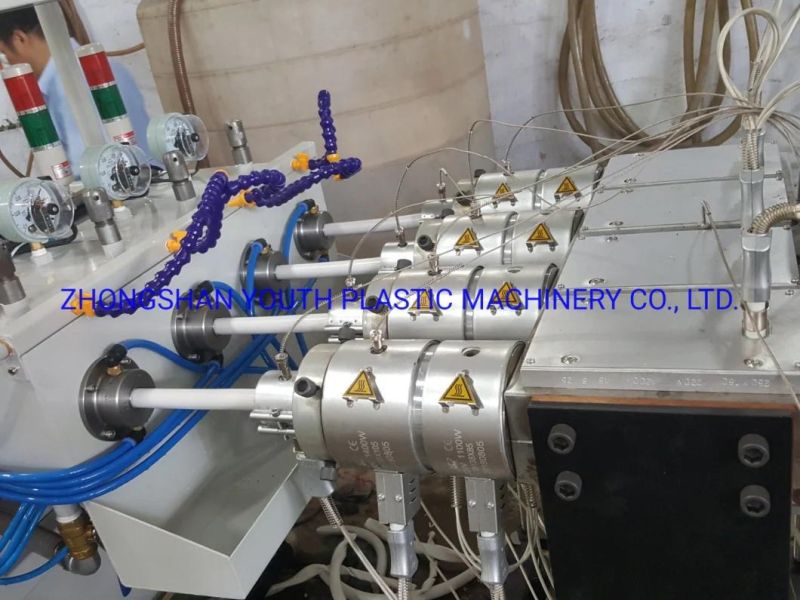

  four cavities

1. material of torpedo :45#Steel,  Modulating processing, the flow channel will be chrome-plated polished;
2. Die mateial: 2Cr13, Modulating processing, the flow channel will be chrome-plated polished;
3. Die structure: PVC special dies with rack;
4. Specifications: replacement of the corresponding specifications of shape mold, die, mandrel;
5. The wall thickness of product: replacement of the corresponding wall thickness of the mandrel;
6. Calibrator material: stainless steel , length 400mm (full vacuum);

1.

1.
2.

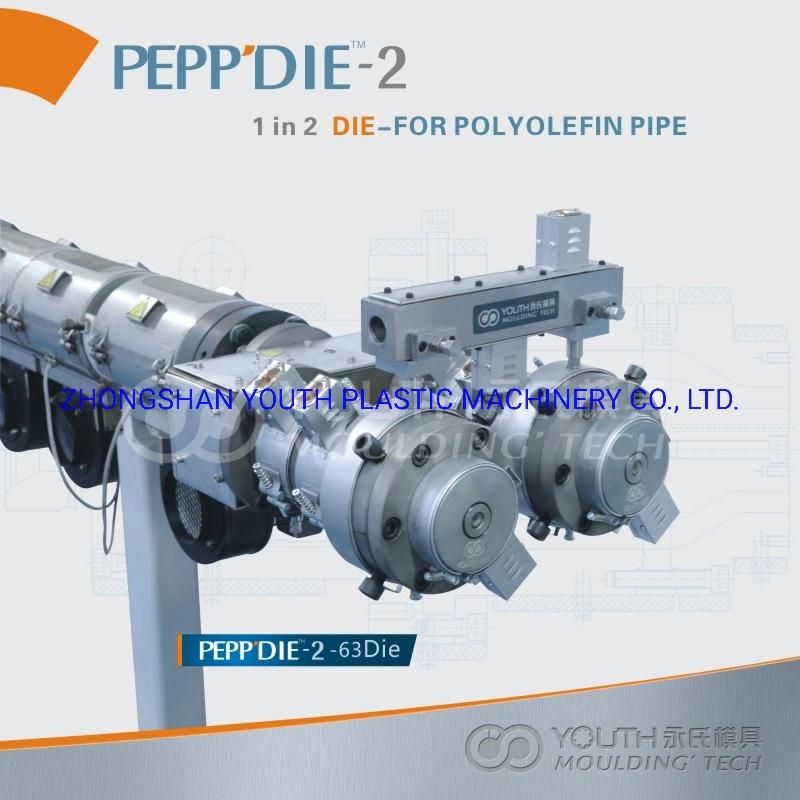

double cavities

1. material of torpedo :45#Steel,  Modulating processing, the flow channel will be chrome-plated polished;
2. Die mateial: 2Cr13, Modulating processing, the flow channel will be chrome-plated polished;
3. Die structure: PVC special dies with rack;
4. Specifications: replacement of the corresponding specifications of shape mold, die, mandrel;
5. The wall thickness of product: replacement of the corresponding wall thickness of the mandrel;
6. Calibrator material: stainless steel , length 400mm (full vacuum);

1.

1.

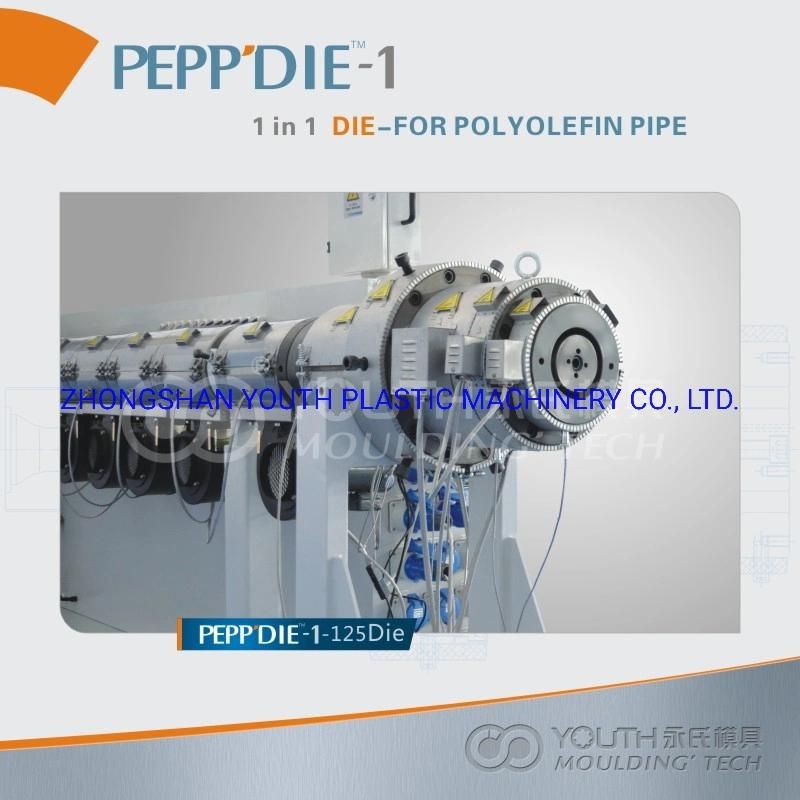

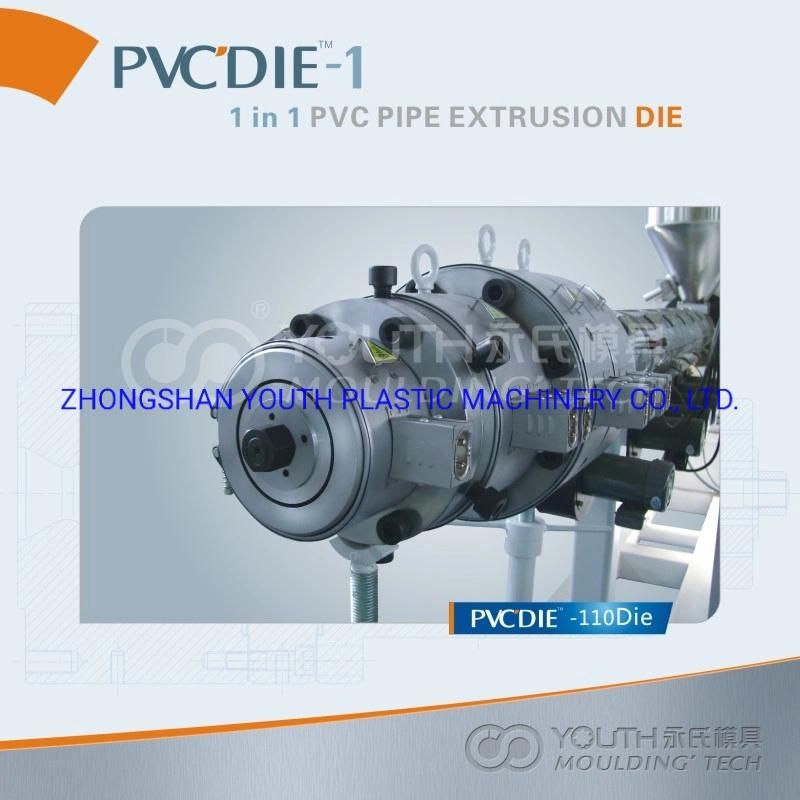

 Single Cavity

1. material of die :45#Steel, modulating processing, the flow channel will be chrome-plated polished
2. die configuration: the die with each kinds of wall thickness and mandrel;
3. die structure: PVC special dies with rack
4. specifications: replacement of the corresponding specifications of calibrator, die and mandrel
5. the wall thickness of product: replacement of the corresponding wall thickness of the mandrel
6. calibrator material: Tin bronze, length 500mm (full vacuum cooling)

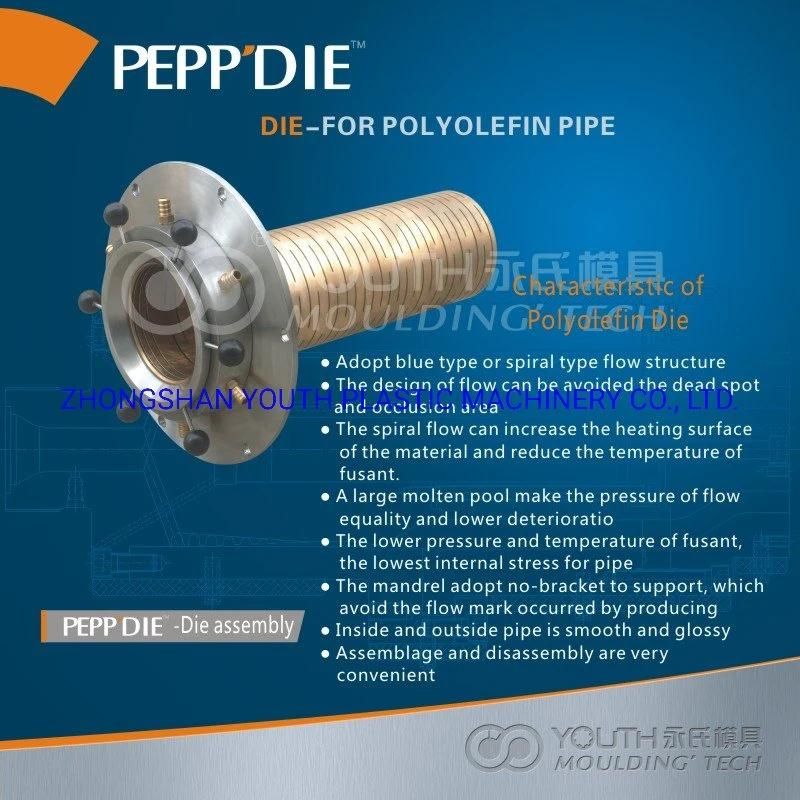

        PE/PPR pipe molds
