![](/uploads/image/2021/e0/7a/83/e9/99357f199f02df22b19b94bf19d8fc2e.jpg)

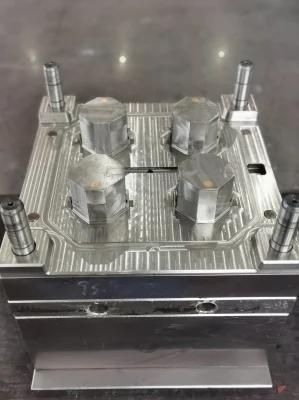

Plastic Four Holes Switch Mould
Zhejiang Right Precision Mould Co., Ltd.- Process Combination Type:Compound Die
- Plastic Material:PC
- Mould Cavity:Multi Cavity
- Surface Finish Process:Polishing
- Shaping Mode:Injection Mould
- Application:Household Appliances, Commodity, Electronic, Home Use
Base Info
- Transport Package:Wooden Case
- Core Pulling System:Hydraulic Cylinder
- Mould Design:2D & 3D
- Mould Struction:Mechanical
- Sample:Free
- Customized:Customized
- Standard:Hasco, Dme, Misumi
- Installation:Fixed
- Design Software:Ug, CAD, Moldflow
- Runner:Cold Runner
- Model NO.:RT-003M
- Specification:P20 & 718, C45.
- Origin:Zhejiang, China
- HS Code:8480719090
- Production Capacity:500PCS,Annual
Description
Basic Info.
Model NO. RT-003M Runner Cold Runner Design Software Ug, CAD, Moldflow Installation Fixed Standard Hasco, Dme, Misumi Customized Customized Sample Free Mould Struction Mechanical Mould Design 2D & 3D Core Pulling System Hydraulic Cylinder Transport Package Wooden Case Specification P20 & 718, C45. Origin Zhejiang, China HS Code 8480719090 Production Capacity 500PCS/AnnualProduct Description
Mould details:1. Design 3D drawing for customers' confirmation according to their 2D drawing or sample when placing to order.
2. Mould Matieral: Different grade: P20, S136, 2316, H13, etc.
3. Surface treatment: mirror polish, polish, texture
4. Independent temperature control & heating system Which boasts an even heating temperature and keeps product with reliable and stable quality.
5. Mould life: more than 1 million shots
All inserts can be interchangable.
6. Product matieral: ABS, PC, PE, PMMA, POM, PP, PBT, PSU, PVC, PA6, PA66+GF,ect
7. Quick deliver time: 25-60 days
item name | plastic injection mould | design software | UG, CAD, MOLDFLOW | |
Plastic material | PVC | mould steel | 718,S316, P20... | |
mould structure | mechanical | installation | fixed | |
runner | hot/cold runner | number of cavity | single/multi-cavity | |
mould life | above 1000,000shots | surface treatment | polishing, sand matte, mirror, heat treatment, etc | |
MOQ | 1 SET | delivery date | 20days to 45days | |
HS CODE | 8480719090 | cycle time | 10-50s | |
packing way | wooden case | origin | Zhejiang, China | |
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/9b/df/77/f1/e5a0811988f22c63049b9f7c4bc62535.jpg)
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/85/c2/69/4c/903483214e7613e5b3304808037d8fbd.jpg)
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/7f/c2/18/50/74112b1dfbe302eeece1f8c93b08e96d.jpg)
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/75/17/fb/93/0eebbfa847b22b4de67b6b89b7d17400.jpg)
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/38/f2/26/96/60565aafb933bc1f08f9b9880e036f62.jpg)
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/4f/f2/a0/e9/daea1d5562c4e8ed76c9c6d913c6a9bd.jpg)
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/00/fd/29/d3/9b3da9d771532939bf5d87db4c2e95b8.jpg)
![Plastic Four Holes Switch Mould](http://www.953085.com/uploads/image/2021/9d/ae/46/23/c107603d894d79d126d659394c69ed1f.jpg)
