• Trademark：HENGXIN
• Specification：as per customer′s requirements
• Transport Package：standard export packing
• After-sales Service：One Stop Service
• Customized：Customized
• Origin：Huangyan, China
• Production Capacity：600 Sets,Year

Basic Info.

Customized Customized After-sales Service One Stop Service Transport Package standard export packing Specification as per customer′s requirements Trademark HENGXIN Origin Huangyan, China Production Capacity 600 Sets/Year

Product Description

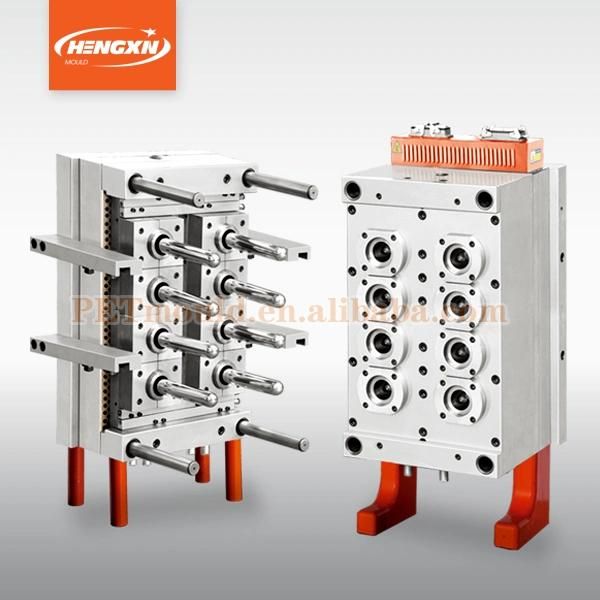

3/5 gallon preform mould

1. Usually, Multi-cavity pet preform mold does use the hot runner system rather than cold runner system, so the design of hot runner system plays an important role in mould quality guarantee. Based on foreign advanced techniques and combined with domestic clients demand, we adopt the valve gated design, in which each cavity has its own heating zone and temperature is measured by independent thermocouple. (advantages: Easily avoid some problems such as white or draw bench on bottom). Here, Mould is produced automatically to reduce labor force.

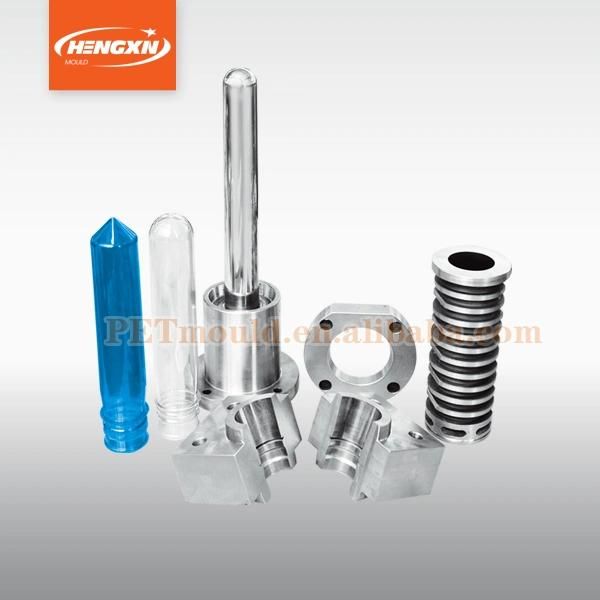

Main mould components (die core, die cavity, screw neck) are made by injection process, and the material of which originates from Sweden high-quality mould steel (HRC 45). In this way, it is no doubt that the mould can be used for 2 million shots without any maintenance, meanwhile, the wall thickness between max. Part and min. Part is not more than 0.10mm; Turning center processes make sure that every parts can match well; Proper distribution of cooling water way improve productivity effect and molding cycle only takes 15 seconds( need proper water chiller, bottle design and injection machine)

2. Our mould, designed and developed by our engineers, is of high precision and long life span without traditional problems. In a word, Preform wall thickness is on error of 0.10mm; Weight difference is less than 0.3G; 2-5 moulds per minute; Utmost 144 cavities in one mould.
Main feature:
Cavity from 1 up to 144.
Control system with simulating stretch testing improve rate of production.
3. Adopt world advanced dipole taper localization technique, each cavity self-clamp independently, ensure mould concentrically.
4. Material of mould die core and die cavity are made of Sweden special mould steel.
5. Standard screw neck, imported nitride steel with high hardness is of long usage.
6. Advanced hot runner design and even heating temperature make sure the high quality of plastic products.
7. Valve gated type without tail reduces labor force.
8. At least 3 million shots guarantee.
