Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould

Zhongshan Huihai Mold & Automatic Equipment Co., Ltd.
  • Process Combination:Progressive Die
  • Technics:Cutting Die
  • Processing Method:Punching and Shearing Mould
  • Material:Low Alloy Tool Steel
  • Application:Car, Home Use
  • Manufacturing Technology:Computer Technology

Base Info

  • Specification:SGS, ISO
  • Transport Package:Wooden Case
  • Certificate:ISO9001:2008, SGS
  • Cavity:1 to Multiple
  • Mould Material:Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
  • Die Life:500, 000 Shots
  • Tolerance:+-0.01mm
  • Model No:Hh159
  • Customized:Customized
  • Packing:Wooden Case
  • Lead Time:45 Days
  • Name:Progressive Stamping Die for Sheet Metal Parts
  • Parts Detection Method:Measurement of Three Axis NC
  • Milling Speed:Normal Speed
  • Mold Cavity Technology:CNC Milling
  • Driving Motor Type:Permanent Magnet
  • Model NO.:HH188
  • Trademark:huihai auto
  • Origin:Zhongshan
  • HS Code:8207300090
  • Production Capacity:300 Sets,Year

Description

Basic Info.

Model NO. HH188 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Name Progressive Stamping Die for Sheet Metal Parts Lead Time 45 Days Packing Wooden Case Customized Customized Model No Hh159 Tolerance +-0.01mm Die Life 500, 000 Shots Mould Material Cr12, Cr12MOV, DC 53, Skh-9, 45# etc Cavity 1 to Multiple Certificate ISO9001:2008, SGS Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin Zhongshan HS Code 8207300090 Production Capacity 300 Sets/Year

Product Description

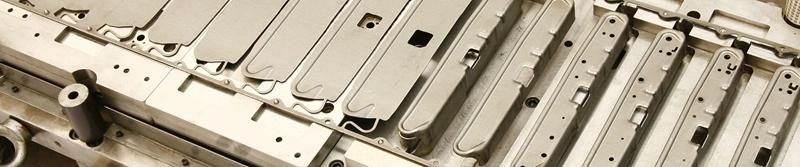

Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould

Our Advantages:
1. Competitive price
2. Strict quality control system (ISO9001 system manage)
3. Quick mold making and delivery (4-7weeks)
4. Advanced equipment, excellent R&D teams
5. Professional technicians and rich experienced workers


Huihai specializes in manufacturing and supplying of various moulds and dies, such as metal stamping dies, plastic injection moulds, motor stator&rotor molds and stamping parts and injection parts since 2005.
Huihai provides various molds & dies to the clients from USA, Spain, Italy, Russia and so on.
"Good quality with cost-effective" is the base of Huihai business. Huihai people keep creating value for customers as our mission.
ISO 9001: 2008 certificated.

Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould



Technical Specifications
Design BaseCustomer product drawings or samples
Mold materialCr12mov, SKD11, D2, M2, DC 53, SKH-9, Copper alloy or the material customer required.
Mold baseStandard mold base or customized
Standard componentMISUMI, PUNCH, DAYTON, DANLY (or Customer required)
Part material fitSPCC, SPCE, SPCD, DC01, DC04, Stainless steel 304.430.316, Aluminum alloy, and so on
Design softwareCAE, UG, CAD

Lead time: 4-7 weeks based on tooling construction

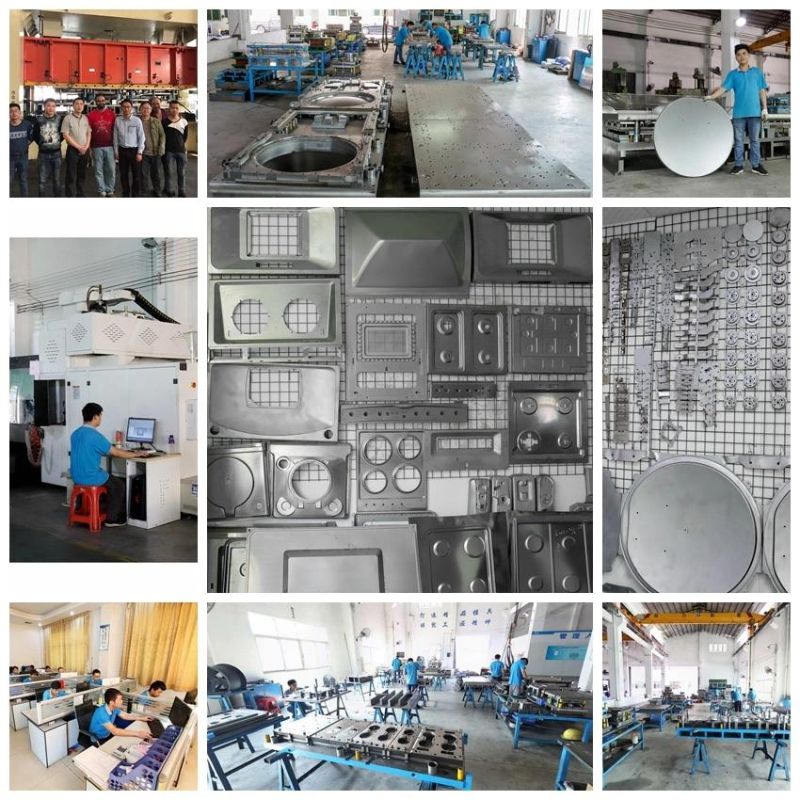

Processing Equipments

Machine EquipmentQTYTapping  center1
CNC5Plate shears1
WEDM2Mechanical Press13
WEDM-HS2Hydraulic Press2
EDM3Inspection EquipmentQty
Radial drill8CMM1
Sawing machine1projector1
Grinding machine4Rockwell-hardness-tester1
Milling machine2Dial Calipers(0-300mm)8
Bench drill4Slide Calipers(0-1000)6
lathe2Pound scale1
Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould

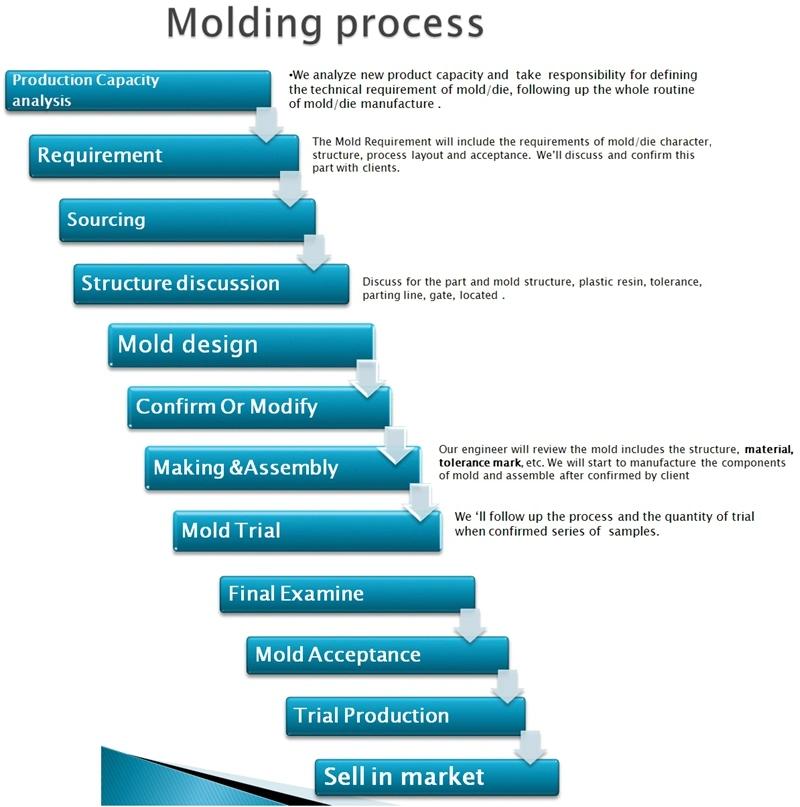

Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.
Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould

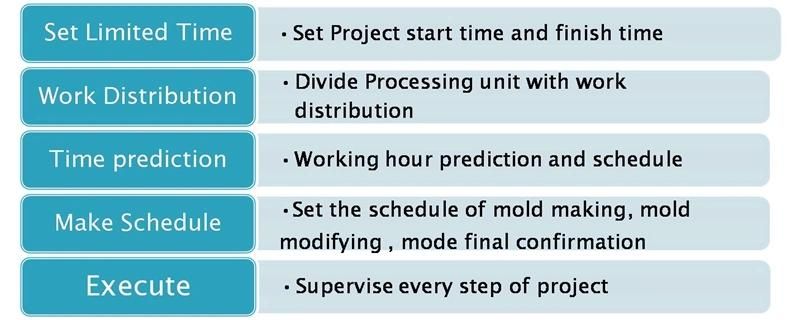

TIme control
  • Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour.
  • The Parts we'll take into consideration
Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould


Overseas Clients:
Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould


WELCOME TO ENQUIRE AND TAKE MORE...
