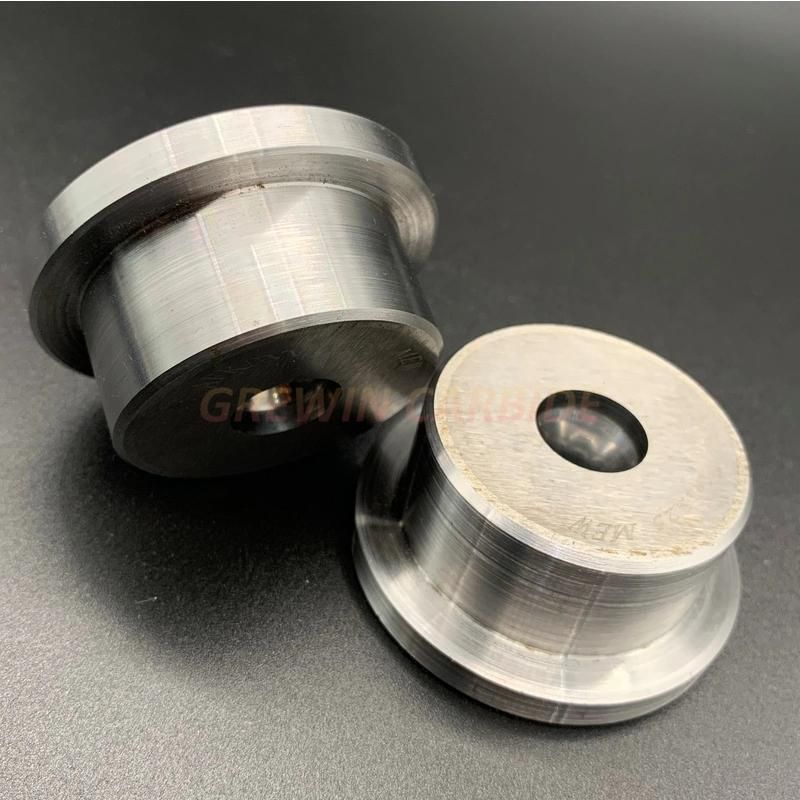

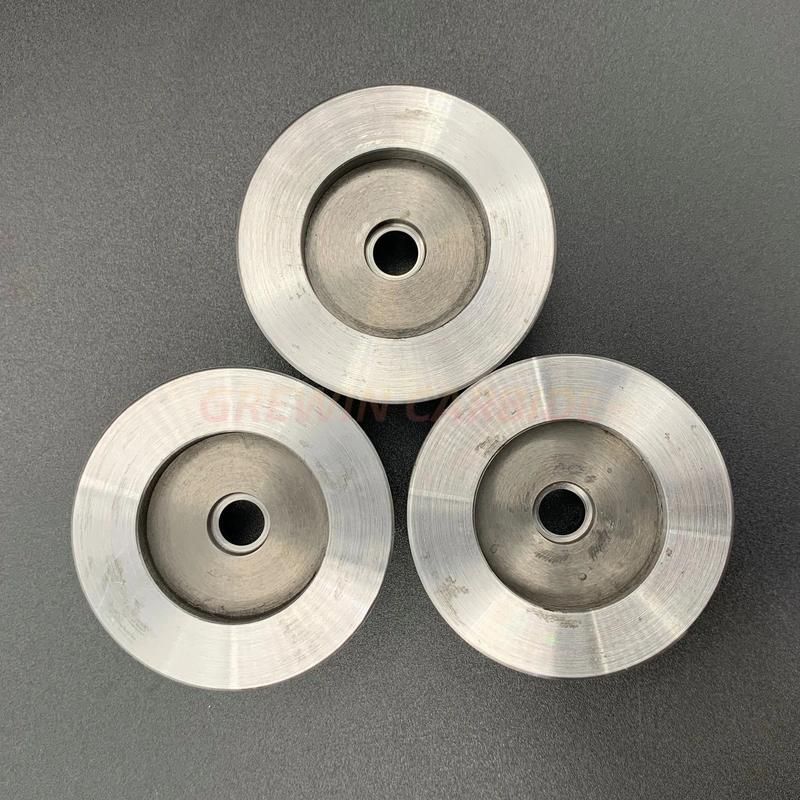

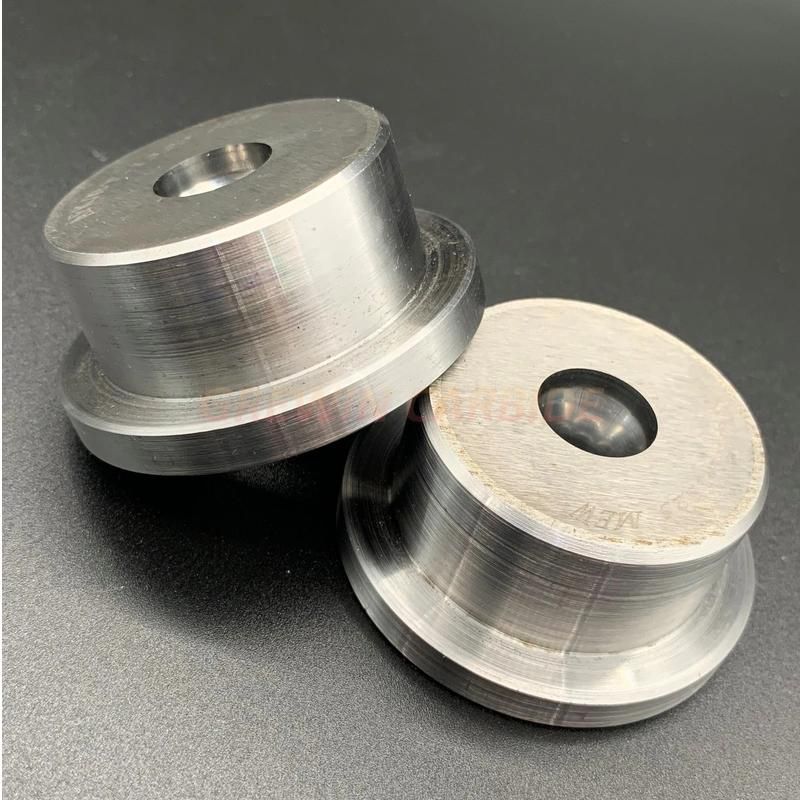

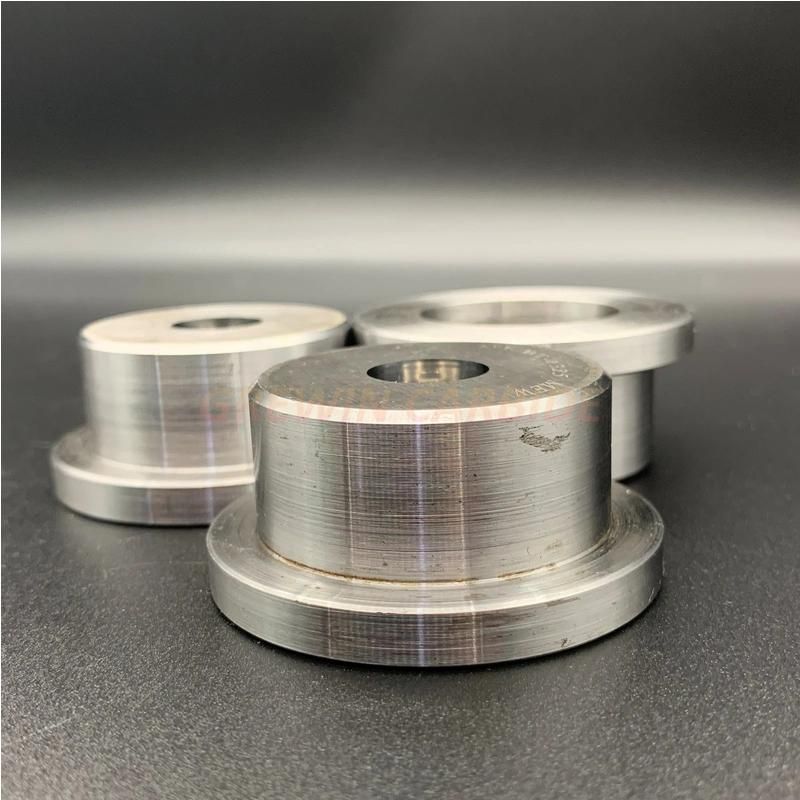

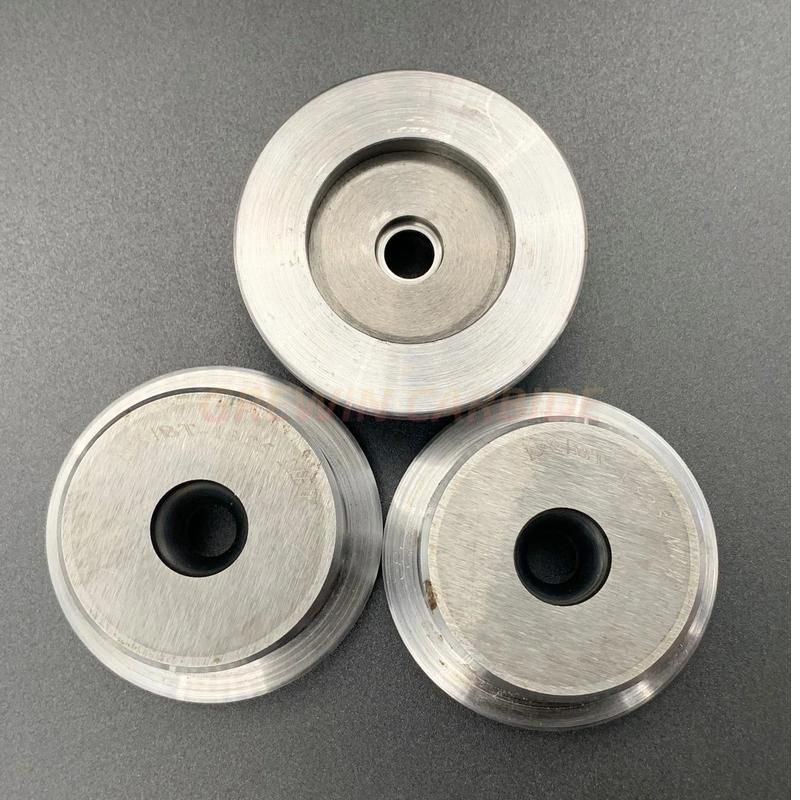

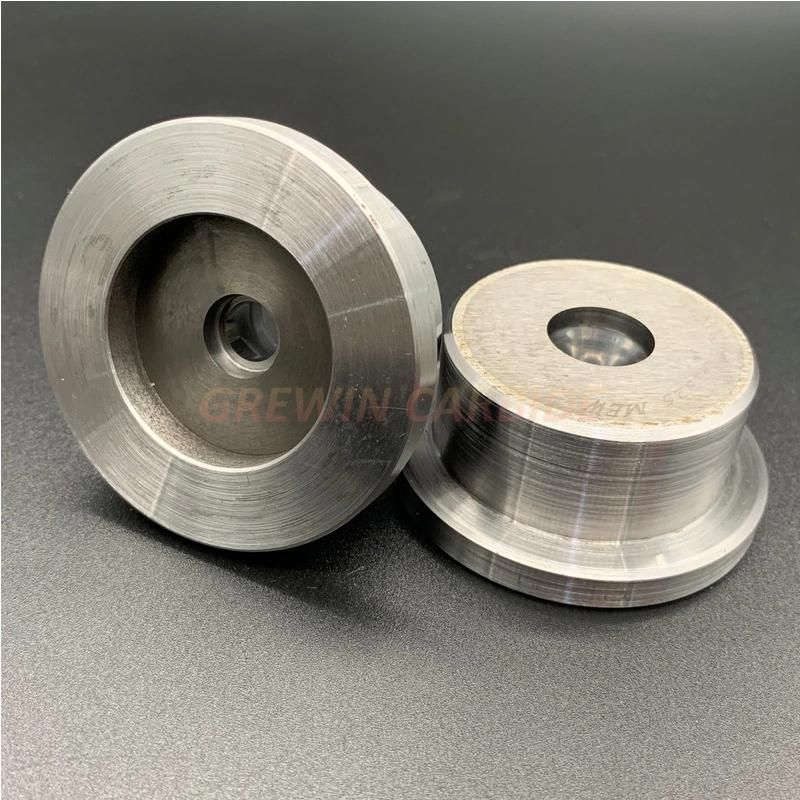

Gw Carbide - Grinding Surface Tungsten Carbide Wire Drawing Dies
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Cavity:Single-cavity
- Hole Type:Round Mould
- Shaping Mode:Compression
- Material:Tungsten Carbide
- Type:Tungsten carbide nib
- Application:Hardware, Commodity, Electronic
Base Info
- Color:Gray
- Quality:Top,Middle
- Surface:Grinding or Rough
- Work Piece:for Metal
- Types:S11, S13, R, W103, W104, W105, 6X4, 9X6, 16X13
- Shipment:by Air,Sea,Express,etc..
- Certificate:ISO,SGS,etc
- Tolerance:Blank, Finish Grind, Finish Grind with Steel Case
- Grade:Yg3, Yg3X, Yg6, Yg6X, Yg8, Yg11
- Customized:Standard or Customised
- Warranty:1 Year
- Certification:ISO
- Model NO.:EYE 861 EYE 2587 EYE 2720
- Delivery Time:10~ 15 Days
- Transport Package:Standard Box
- Specification:33x23x19cm
- Trademark:GW
- Origin:Zhuzhou Hunan
- HS Code:8207209000
- Production Capacity:50000 PCS , Month
Description
Grade
Physical and mechanical properties
Applications recommended
Grade
Density g/cm3
Hardness HRA(HV)
TRS (Mpa)
YG6X (K10)
14.8-15.1
91
1490
For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress.
YG6 (K20)
14.7-15.1
89.5
1650
For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm.
YG8 (K30)
14.6-14.9
89
1800
For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts.
YG15
13.9-14.2
86.5
2060
For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies.
Application range
Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
If you have any questions please contact us!
