PP Collapsible Core Tee Mould
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Plastic Material：PP
- Mould Cavity：Single Cavity
- Surface Finish Process：Polishing
- Shaping Mode：Injection Mould
- Warranty：12 Months
- Process Combination Type：Compound Die
Base Info
- Transport Package：Wooden Case
- Size：110*50mm
- After-sales Service：12 Months
- Customized：Customized
- Standard：HASCO
- Certification：ISO
- Installation：Mobile
- Design Software：AutoCAD
- Runner：Cold Runner
- Application：Household Appliances
- Model NO.：JZ
- Specification：ISO9001-2000
- Trademark：JZ
- Origin：China
- HS Code：8480719090
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. JZ Application Household Appliances Runner Cold Runner Design Software AutoCAD Installation Mobile Certification ISO Standard HASCO Customized Customized After-sales Service 12 Months Size 110*50mm Transport Package Wooden Case Specification ISO9001-2000 Trademark JZ Origin China HS Code 8480719090 Production Capacity 100 Sets/MonthProduct Description

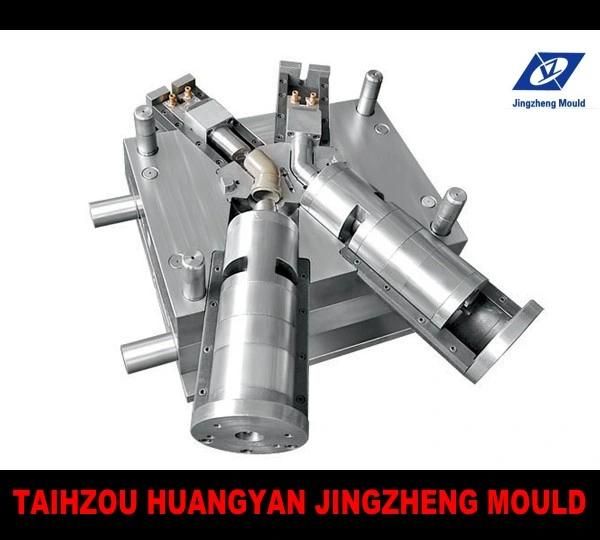

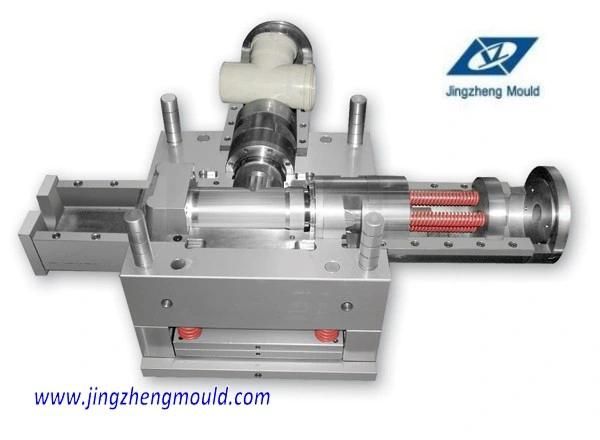

PP Collapsible Core Tee Mould
Collapsible Core diamater from Φ 20mm to Φ 400mm.| Name | PPcollapsible core tee mould |
| Plastic material | PP |
| Steel of Cavity & Core | DIN 1.2738/DIN 1.2344 |
| Steel of Mouldbase | S50C. LkM standard^ etc |
| Nos of Cavity | Customized |
| Hardness of Cavity & Core | 35-38HRC |
| Hardness of Wear Parts | 35-38HRC |
| Core pulling system | Motor /oil cylinder/ stripping plate, angel pin^ etc |
| Mould Accessories | DME/HASCO Standard |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish |
| Molding life | 1.200, 000shots |
| Runner | Cold or Hot |
| Delivery time | 55work days |
| Packing | wooden case |
| Payment | T/T L/C |
