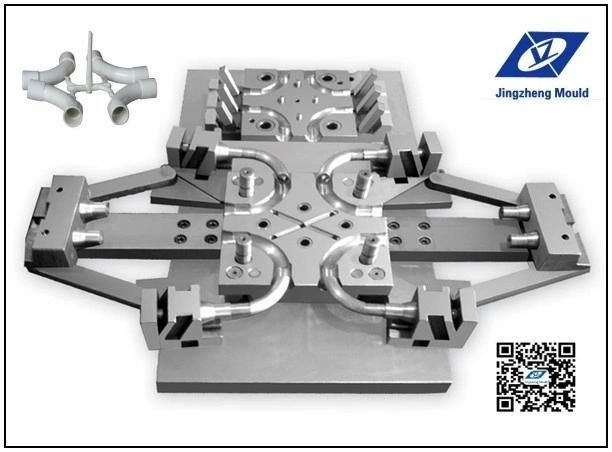

PVC Fittings Mould (JZ-P-C-03-014-A)
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Forging Work Steps：Spherical Shaped Forging
- Craftwork：Polish
- Material：Injection Mould
- Application：Household Appliances
- One-time Molding：One-time Molding
- Warranty：12 Months
Base Info
- Specification：ISO9001: 2000
- Transport Package：Wooden Case
- Thickness：2mm
- Condition：New
- Customized：Customized
- Metal Color：Black Metal
- Model NO.：JZ-P-C-03-014-A
- Trademark：JZ
- Origin：China
- HS Code：8480719090
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. JZ-P-C-03-014-A Metal Color Black Metal Customized Customized Condition New Thickness 2mm Transport Package Wooden Case Specification ISO9001: 2000 Trademark JZ Origin China HS Code 8480719090 Production Capacity 100 Sets/MonthProduct Description
High quality with reasonable price, by using Chinese, Korean, Japan, Germany Standard to make moulds, the products' dimension range from 25mm to as big as 630 mm.
| Name | PVC Fittings Mould |
| Plastic material | PVC |
| Steel of Cavity & Core | DIN 1.2316 |
| Steel of Mouldbase | S50C. LkM standard… etc |
| Nos of Cavity | Customized |
| Hardness of Cavity & Core | 48-52HRC |
| Hardness of Wear Parts | 55-60HRC |
| Core pulling system | Motor /oil cylinder/ stripping plate, angel pin… etc |
| Mould Accessories | DME/HASCO Standard … |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish, |
| Molding life | 1.200, 000shots |
| Runner | Cold |
| Delivery time | 75work days |
| Packing | wooden case |
| Payment | T/T L/C |
