• Origin：China
• Trademark：GUANGYUE
• Transport Package：Standard Export Packiing
• Customized：Customized
• Certification：CE, ISO
• Installation：Fixed
• Model NO.：3RT
• HS Code：847780
• Production Capacity：5000sets,Year

Basic Info.

Model NO. 3RT Installation Fixed Certification CE, ISO Customized Customized Transport Package Standard Export Packiing Trademark GUANGYUE Origin China HS Code 847780 Production Capacity 5000sets/Year

Product Description

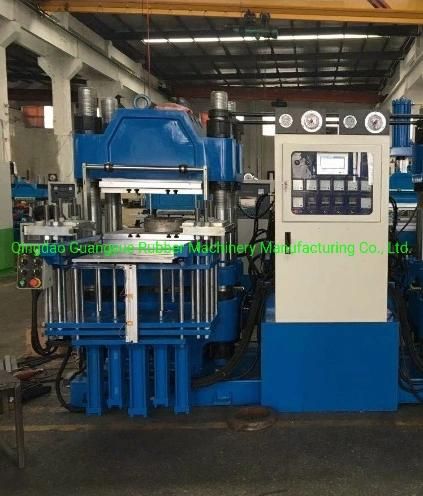

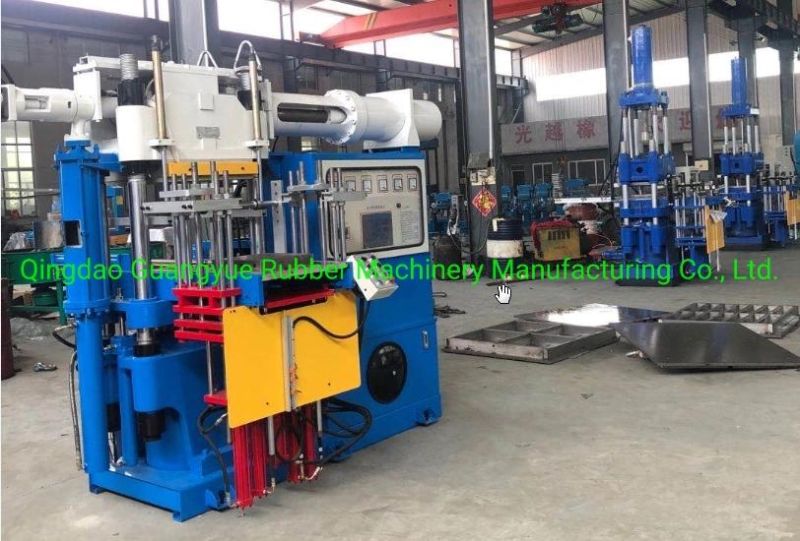

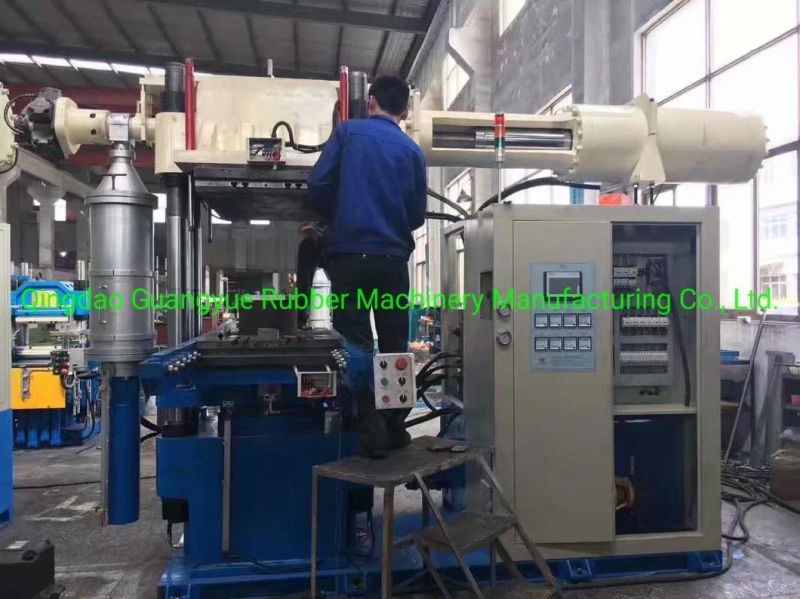

VACUUM FORMING MACHINE FOR MEDICAL DRUG PLUGS

1.suitable for producing insulator, arrester, bushing, cable joint and all kinds of rubber mold products.
2.Provide big work table

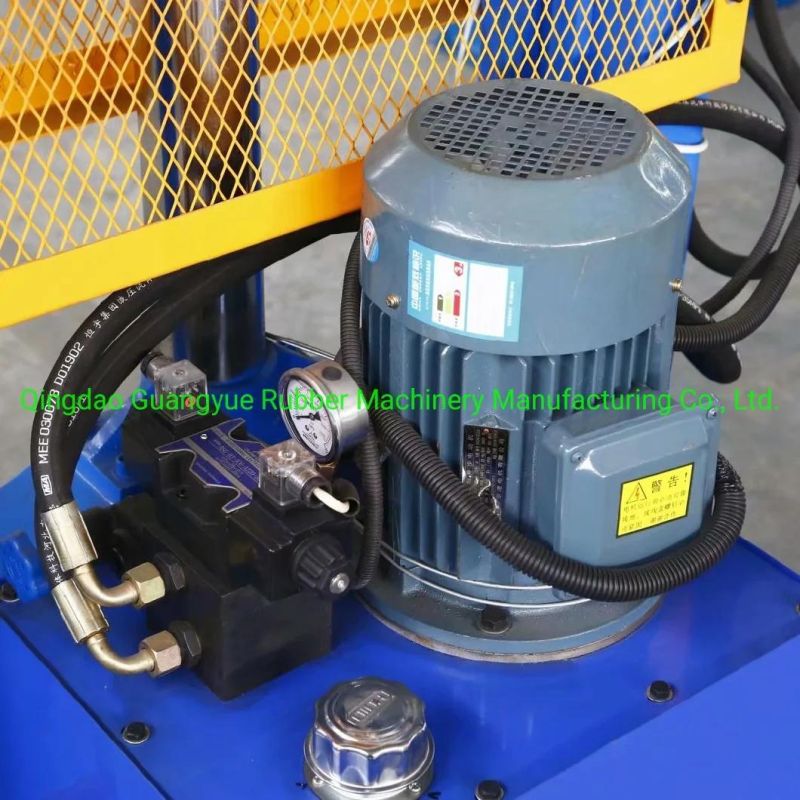

3.All key hydraulic and seal components are imported from Europe, USA or JAPAN, ensuring oil pump can do any actions without impact
4.Save 25-50% motor energy cost
5.Use Germany electronic ruler to measure the injection, ensure the precision
6.Three sections of injection pressure, flux and pressure holding satisfy any products' technological requirements
7.Siemens PLC controller and touch screen make it easy to set up, view and save Technological parameters. It can also supervise the whole producing, auto diagnose inner fault And give an alarm
8.Protect with safe light curtain
9.Precisely fix mold in and out position
10.Control material temperature, Temperature control precision is between ±1 degree
11.300 sets of mould data memory.


Parameters/models	HYZ-100A	HYZ-200A	HYZ-300A	HYZ-400A
Max. injection volume(cm3)	500-1000	2000-2400	2000-3000	3000-4000
Max. clamping force(KN)	1200	2000	3000	5000
Platen size(mm)	500×500	550×550	700×600	700×700
Clamping stroke(mm)	450	500	600	700
Min. mould thickness(mm)	60	80	160	60
Total power(kw)	30	30	40	55
Dimension Btwn tiebar(mm)	610×355	610×355	710×510	770×550
Space of platens(mm)	500	570	750	750
Nozzle diameter	Φ5	Φ5	Φ6	Φ6
Arc radius of Nozzle	SR15	SR19	SR19	SR19
Machine size(mm)	2800×1200×3600	3200×2100×4200	3400×2400×4500	3000×2000×4600
Machine weight(ton)	5.5	6.5	11	15
