• Trademark：SUNTECHMACH
• Specification：0.5mm-7mm
• Transport Package：Seaworthy Packing
• Customized：Customized
• Warranty：1 Year
• Certification：ISO, CE
• Application：Hardware
• Model NO.：5.5mm
• Origin：China
• HS Code：846330
• Production Capacity：500000pieces,Year

Basic Info.

Model NO. 5.5mm Application Hardware Certification ISO, CE Warranty 1 Year Customized Customized Transport Package Seaworthy Packing Specification 0.5mm-7mm Trademark SUNTECHMACH Origin China HS Code 846330 Production Capacity 500000pieces/Year

Product Description

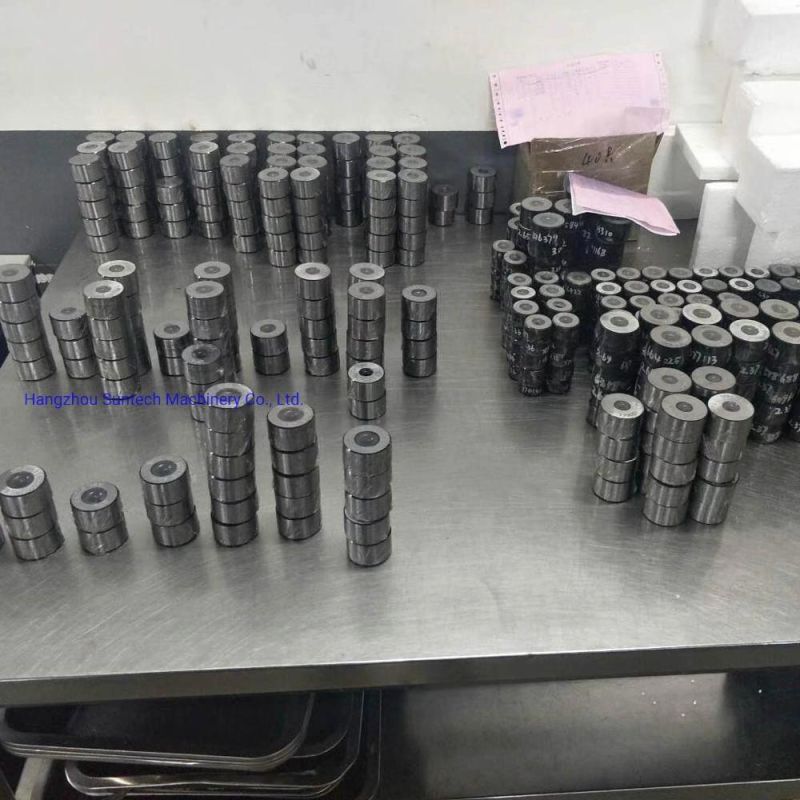

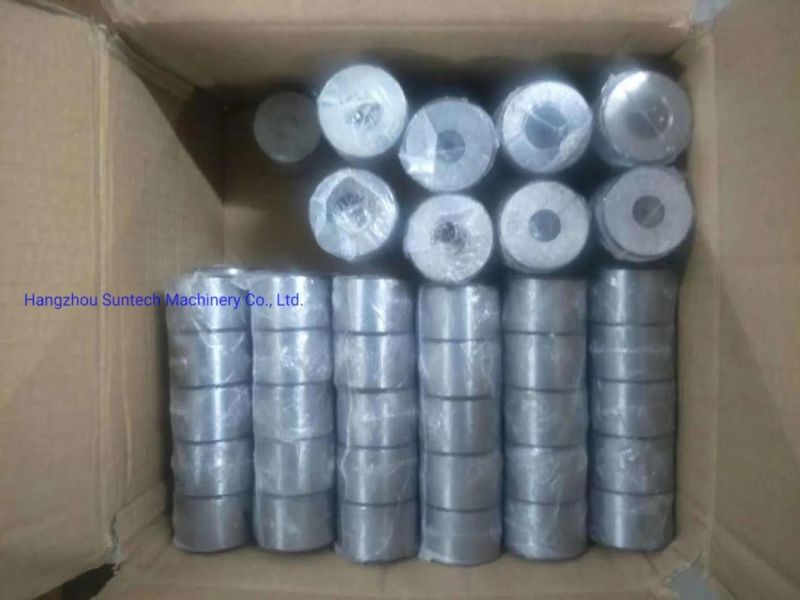

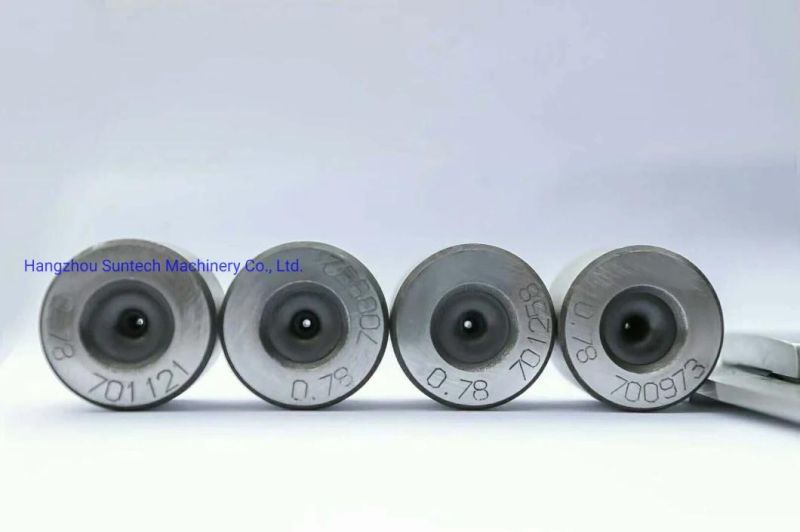

1. Product Name: Nano coated wire drawing die
2. Uses: Wire drawing machine for drawing wire drawing machine
3. Material:
3.1 Coating: CVD nano diamond coating
3.2 Core: tungsten carbide
3.3 Die sleeve: 45 steel
4. Precision:
4.1 Die core: Rough drawing (Φ2.2mm-Φ5.5mm): -0.02mm-+0.01mm (the last one is ±0.01mm)
                      Fine drawing (Φ0.8mm-Φ2.2mm): ±0.01mm
4.2 Die case: -0.05mm
4.3 Roundness error: ≤0.005
4.4 Compression angle: Φ1.2mm or less: 10°±2°
                                       Φ1.2mm-Φ2.0mm: 12°±2°
                                       Φ2.0mm-Φ5.0mm: 14°±2°
