• Equipments：CNC, EDM, Wedm, Wedm-HS, Milling, Grinding etc
• Mould Material：Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
• Cavity：1 to Multiple
• Standard：Hasco, Dme
• Design Software：Auto CAD, Cae, PRO-E, Solidworks, Ug
• Model No：Hh025
• Customized：Customized
• Lead - Time：30-60 Days
• Packing：Wooden Case
• Name：Custom Sheet Metal Drawing Stamping Die Set
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：Normal Speed
• Mold Cavity Technology：CNC Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：HH025
• Transport Package：Wooden Case
• Specification：SGS, ISO
• Trademark：huihai auto
• Origin：Zhongshan
• HS Code：8207209000
• Production Capacity：450 Sets , Year

Basic Info.

Model NO. HH025 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Name Custom Sheet Metal Drawing Stamping Die Set Packing Wooden Case Lead - Time 30-60 Days Customized Customized Model No Hh025 Design Software Auto CAD, Cae, PRO-E, Solidworks, Ug Standard Hasco, Dme Cavity 1 to Multiple Mould Material Cr12, Cr12MOV, DC 53, Skh-9, 45# etc Equipments CNC, EDM, Wedm, Wedm-HS, Milling, Grinding etc Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin Zhongshan HS Code 8207209000 Production Capacity 450 Sets / Year

Product Description

Custom sheet metal drawing stamping die set

Huihai auto has manufactured precision, high-quality, reliable and cost-effective single stamping die set and metal progressive stamping die set for the automotive and home appliance for more than ten years. Our precision metal stamping die set and progressive stamping die set make your productivity, quality, design and economy as our important consideration. We can design and manufacture the simple or complex stamping dies or moulds fitting your exact applications.


Product Details:

Item Name: custom sheet metal drawing stamping die set

Mould Type: single stamping dies, progressive dies

Mould Design software: 2/3 D, Auto CAD, CAE, PRO-E, Solidworks, UG, Catia, MOLDFLOW, ANYCASTING

Mould Material: cr12, cr12mov, Dc 53, SKH-9, 45# etc

Stamping material: stainless steel, aluminum alloy, brass, zinc, carbon steel, copper etc.

Die standard: HASCO, DME

Cavity: 1,2, 5,16,50….depends on your application

Die life: 500,000 shots

Application: home appliance, electronic hardware, auto parts, hardware

Lead Time: 30 to 60 days

Certificate: ISO9001:2008, SGS

Finish: polishing, heat treatment, TD coating, electroplating, chrome coated, painting, zinc-plating etc

Equipments: CNC machining center, EDM, WEDM, WEDM-HS, linear cutting machine, radial drill, sawing machine, grinding machine, milling machine, lathe, punch, CMM, Rockwell-hardness-tester, projector, Dial Calipers, slide Calipers etc

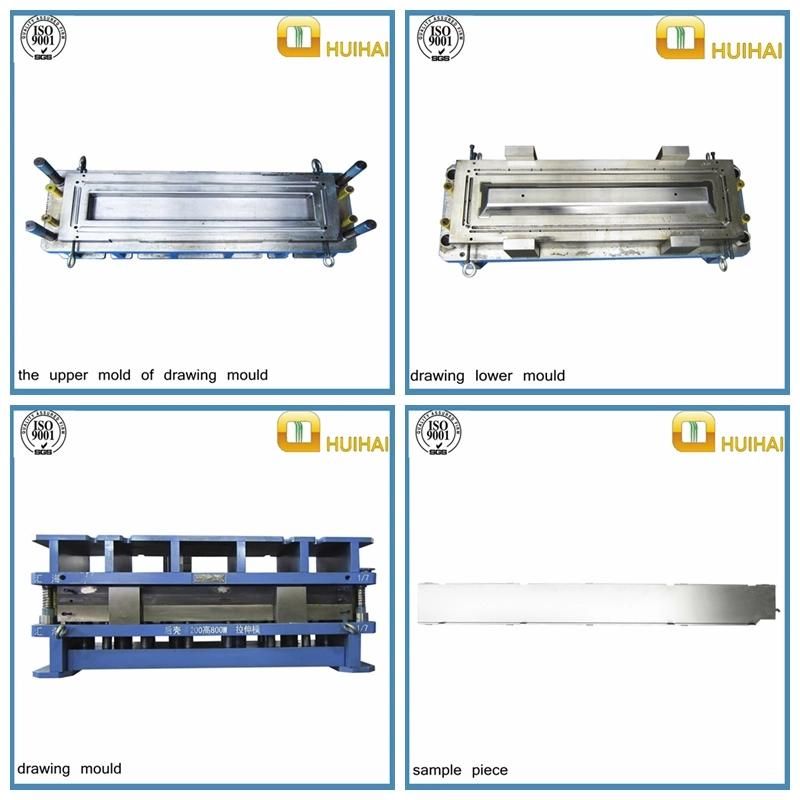

Products Show:




Our Merits:


Design	strong R&D team
Low MOQ	1 pcs or 1 set is available
Equipment	advanced precision CNC and wire walking etc
High  Precision	about 0.02mm
Quality	high polish, perfect surface looking
Lead Time	30 to 45 days
Service	good after-sale service and the good one stop services

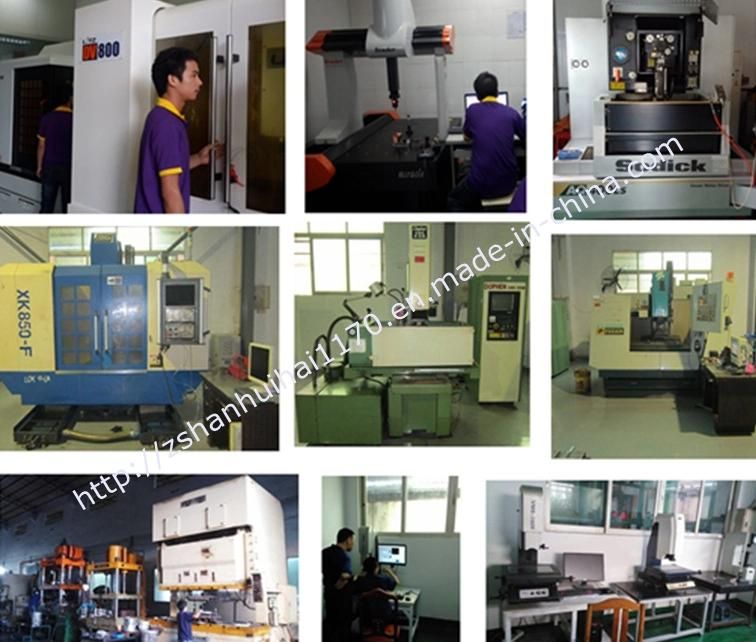

Our Equipments:






Our Certification:



We have had the mould experiences for more than 10 years with the professional drawing

designers and professional mould machinery process, and we sincerely hope we can build

friendship of trade relation in the near future!
