High Quality Plastic Auto Cooling Fan Blade Mold
Taizhou City Huangyan Beiwei Mould Industry Co., Ltd.- Plastic Material：PA66+GF
- Mould Cavity：Single Cavity
- Surface Finish Process：Polishing
- Shaping Mode：Injection Mould
- Process Combination Type：Single-Process Mode
- Application：Car
Base Info
- Sample：Avaliable
- Design：7days
- Provide：3D Printing, Moldflow Analysia, Dfm Report Service
- Machine Equipment：CNC,EDM,Wire Cutting Machine,Drilling,Grinding
- Mould Design Software：Ug, Proe, Solidworks CAD, Ect
- Mould Quality Control：Professional QC in House Machine
- Mould Operating Mode：Automatically by CNC
- Mould Surface：Polish,Texture,Chromed
- Heat Treatment：Nitriding, etc
- Mould Life：300,000-2000,000shots
- Mould Base：S50c,C45
- Customized：Customized
- Standard：Dme,Lkm,Hasco
- Certification：CE, ISO
- Installation：Fixed
- Design Software：Ug, Proe, Solidworks CAD, Ect
- Runner：Cold Runner
- Model NO.：JSL-T17629-11
- Mold T1 Sample：50days
- Mould Report：7days,Time
- Aftersale Service：Yes
- Quality Guarantee：2 Year
- Transport Package：Wooden Crate
- Trademark：JSLMOULD
- Origin：Taizhou, China
- HS Code：8480719090
- Production Capacity：500 Sets Molds,Year
Description
Project Information

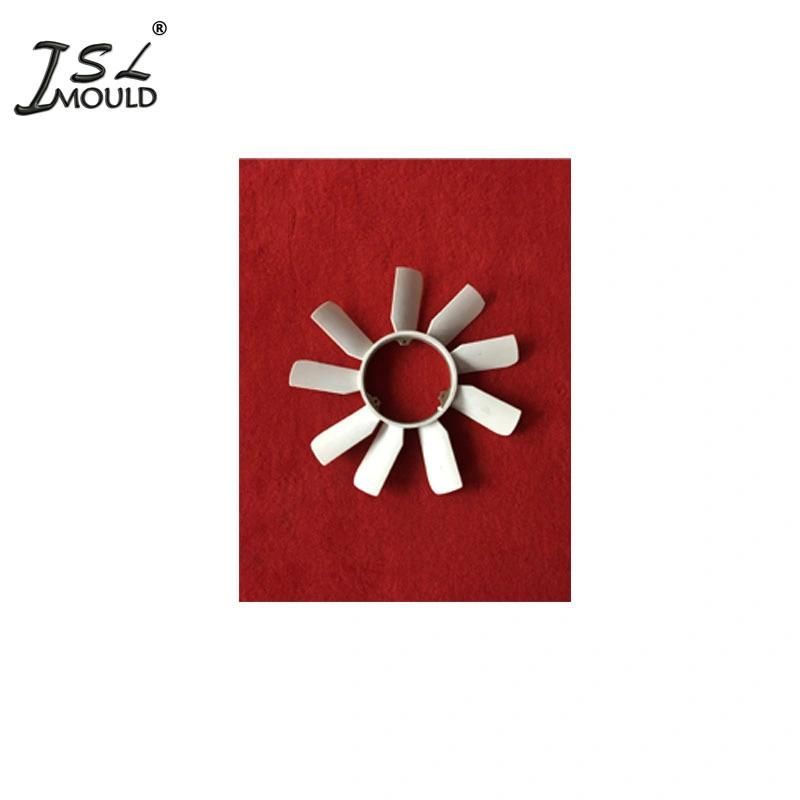

Product DescriptionPart Name Fan Blade Part Material PA66+GF30% Part Size(MM) 387*363*43
Mould SteelA plate S50C B plate S50C Cavity Insert 718 Core Insert 718 Slider Insert 718 Ejector Plate S50C Spare Parts S50C
Mould DescriptionMould Size (L*W*H MM) 640*580*450 Mould Gross Weight (KG's) 780KG Mould Life Time (Shots) 500000 Mould Manufacturing Cycle 60 days Surface Finish 400# Sand paper polishing Runner Description Cold runner Injection Gate Type Direct gate Ejection System Mechanical Thimble Cycle Time (Second) 35S Injection moulding machine 450T
