Gw Carbide - Tungsten Carbide Cold Forging Dies Carbide Dies

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.
  • Forging Work Steps：Spherical Shaped Forging
  • Craftwork：Cold Forging
  • Material：Carbide
  • Application：Household Appliances, Hardware, Car, Electronic
  • One-time Molding：One-time Molding
  • Certification：ISO, SGS

Base Info

  • Certificates：ISO9001-2008,SGS
  • Brand：Grewin
  • Sample：Free
  • Delivery Time：3 ~ 15 Days
  • OEM：Accepted
  • Materials：100% Raw Maertails
  • Grade：Yg20c, Yg25c, Kg2, Kg3, Va80, Va90, Wf30, Wf40
  • Features：Good Wear Resistance, High Precision
  • Tolerance：Rough Grinding of O.D, Top and Bottom Surface
  • Condition：New
  • Customized：Standard or Customised
  • Metal Color：Black Metal
  • Warranty：24 Months
  • Model NO.：D25 x d5 x 51, D30 x d10 x 51, D40 x d16 x 51
  • Location：Zhuzhou--Carbide City
  • Transport Package：Standard Export Carton
  • Trademark：GW or OEM
  • Origin：Zhuzhou, China
  • HS Code：8207209000
  • Production Capacity：100 Tons Annually

Description

GRADEDENSITY
(g/cm3)TRS
(N/mm2)HARDNESS
(HRA)Application recommendedYG1114.4260088.5Forming or stamping dies for metal powders and nonmetal powders.YG1514.0280087.5For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.YG2013.5320085.5For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.YG16C13.9290085.5Impact resistance forging dies.G18C13.7310084.5Impact resistance forging dies, hot-press forging dies and rollers.YG20C13.5330083.5Dies for wear resistant or impact resistant application.YG22C13.3350083.0Nut forming dies and high impact resistance forging diesYG25C13.1360082.5Stainless bolt header dies and rollers.Other grades of tungsten carbide forging dies can be offered according to customers' requirement

3. Production process

Mixture(WC+CO+alcohol)→wet grinding→ drying→grinding again→suppression(Oil press,Automatic hydraulic press)→QC for blank→rubber extrusion→Wc+Co→sintering(HIP )→tungsten carbide blank→Fine grinding→QC→packing.

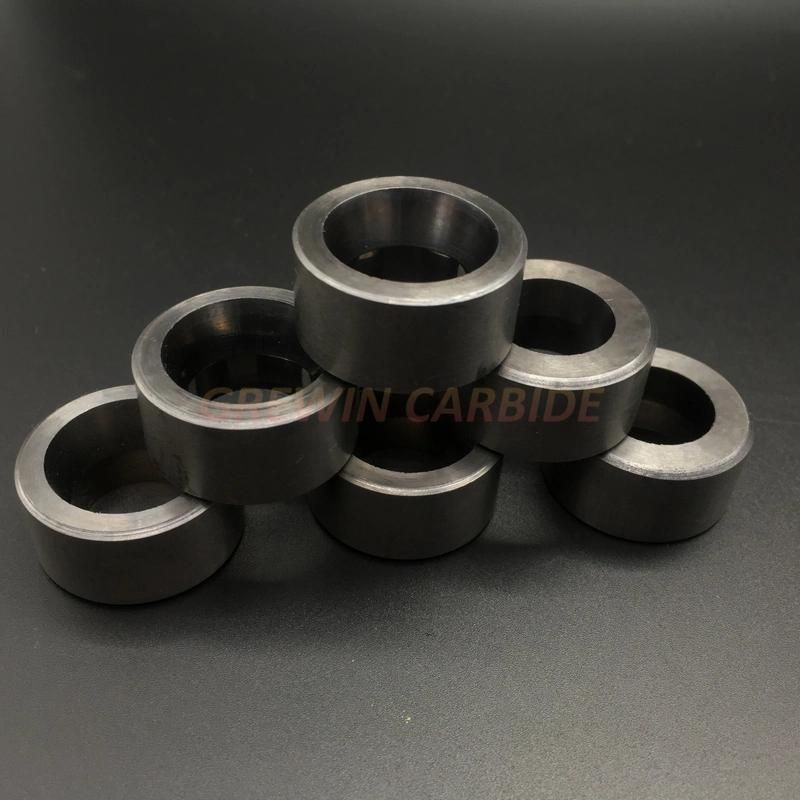

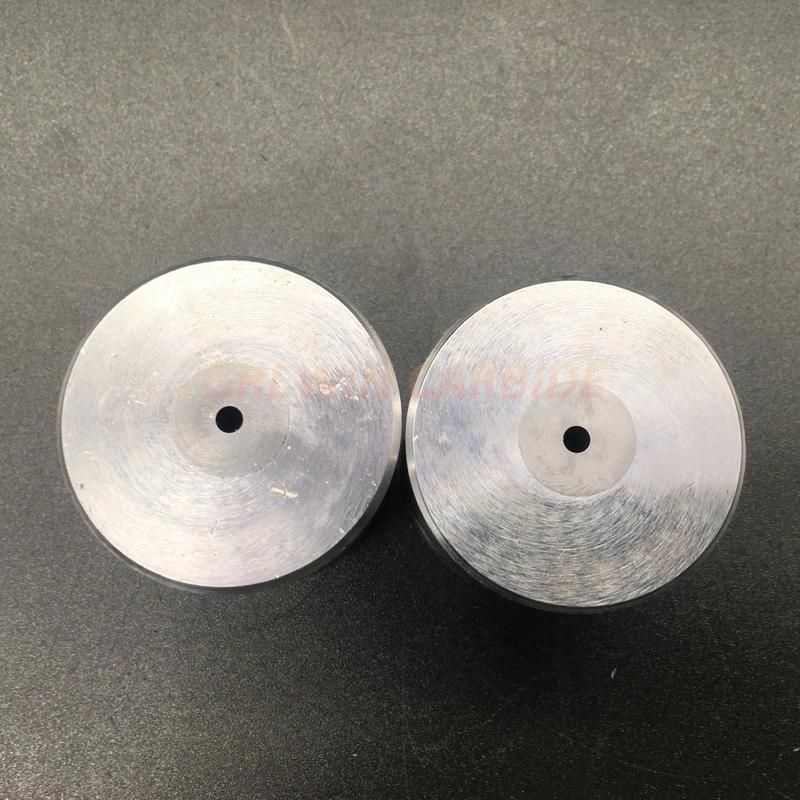

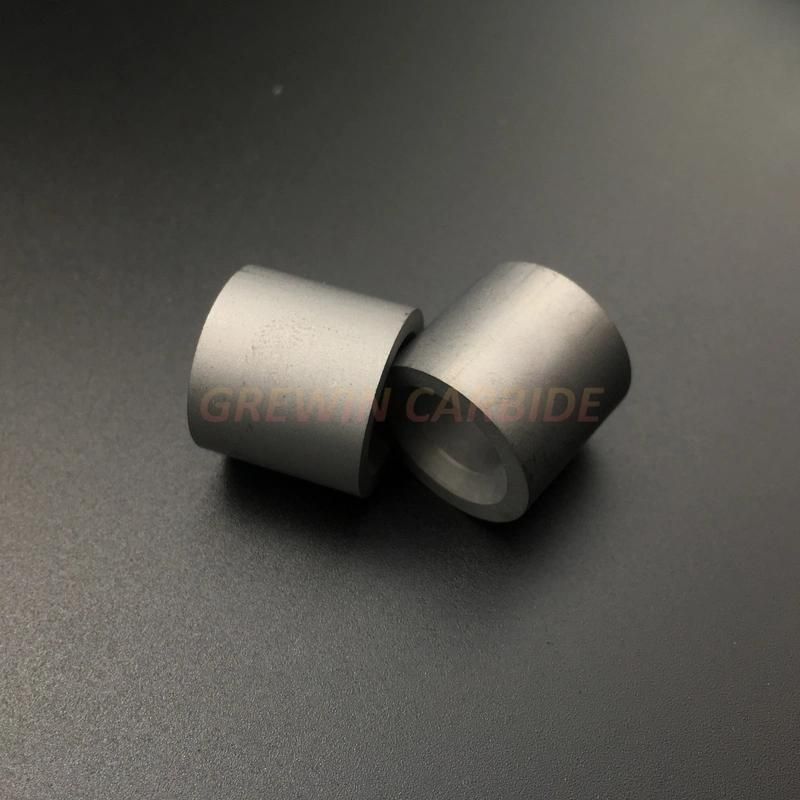

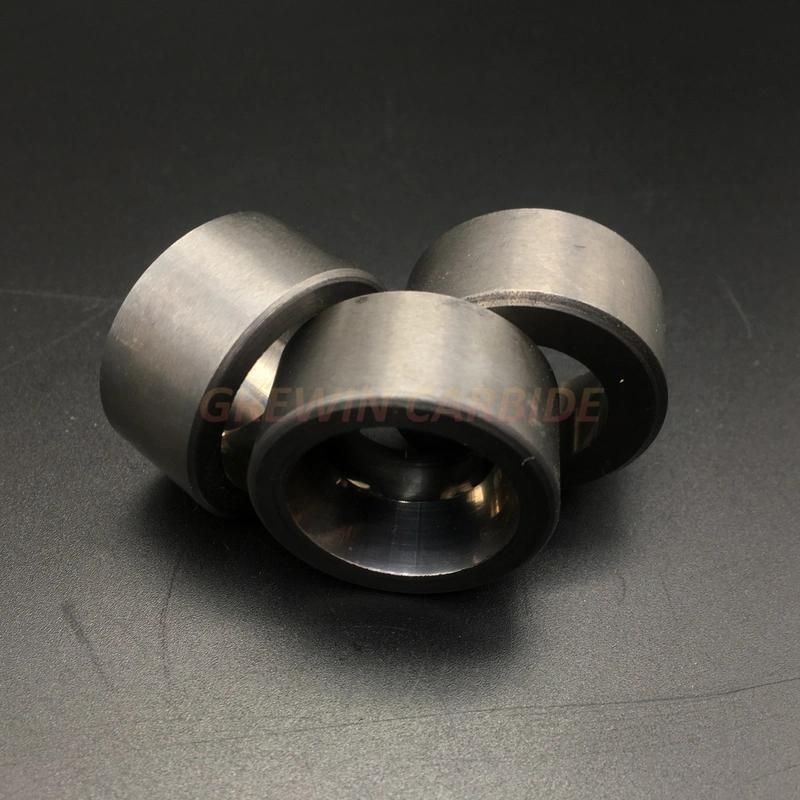

4. Product Pictures








Gw Carbide - Tungsten Carbide Cold Forging Dies Carbide Dies
Gw Carbide - Tungsten Carbide Cold Forging Dies Carbide Dies
Gw Carbide - Tungsten Carbide Cold Forging Dies Carbide Dies
Gw Carbide - Tungsten Carbide Cold Forging Dies Carbide Dies
