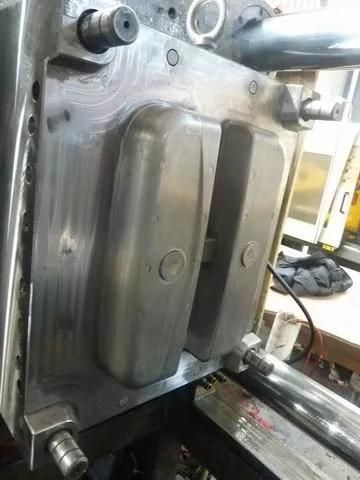

PP Flush Toilet Tank Mould/Mold
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Size：100*500mm
- Installation：Mobile
- Application：Household Appliances
- Process Combination Type：Compound Die
- Shaping Mode：Injection Mould
- Transport Package：Wooden Case
Base Info
- HS Code：8480719090
- Origin：China
- Trademark：JZ
- Specification：ISO9001: 2000
- Model NO.：JZ
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. JZ Specification ISO9001: 2000 Trademark JZ Origin China HS Code 8480719090 Production Capacity 100 Sets/MonthProduct Description
THE WHOLE SET OF FLUSH TANK MADE FROM PP MATERIAL.ONE CAVITY FOR THE BODY
TWO CAVITY FOR THE CAP

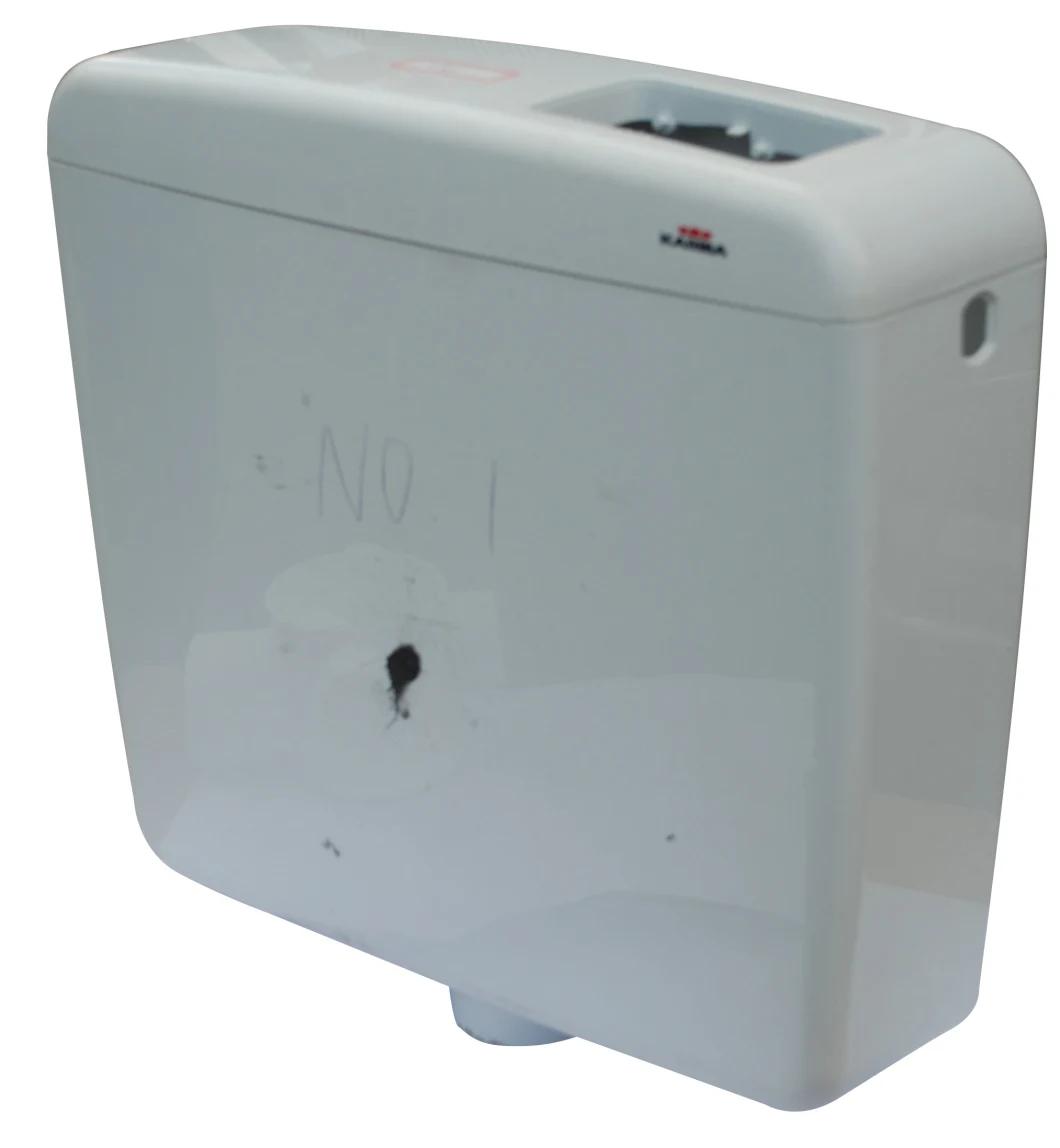

FINAL SAMPLES
| Name | PP Flush Toilet Tank Mould/Mold |
| Plastic material | PVC |
| Steel of Cavity & Core | 718/ P20 |
| Steel of Mouldbase | S50C. LkM standard^ etc |
| Nos of Cavity | Customized |
| Hardness of Cavity & Core | 48-52HRC |
| Hardness of Wear Parts | 55-60HRC |
| Core pulling system | Motor /oil cylinder/ stripping plate, angel pin^ etc |
| Mould Accessories | DME/HASCO Standard |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish |
| Molding life | 500, 000shots |
| Runner | Cold |
| Delivery time | 55work days |
| Packing | wooden case |
| Payment | T/T L/C |
