• Cooling：Baffles,Sprin Piple,3D Printing Water Line
• Steel Standard：Assab,Finkl,Bohler, Groditz,Buderus
• Ejector System：Pin,Air Valve,Stripper Plate
• Injection System：Hot Runner ,Cold Runner
• Customized：Customized
• Standard：DME
• Certification：TS16949, CE
• Installation：Semi Fixed
• Design Software：UG
• Runner：Hot Runner
• Model NO.：ACEMOLD0008
• Standard Delivery：40 Days or 5 Weeks
• Transport Package：Standard or as You Request
• Specification：Steel
• Trademark：ACE
• Origin：Guangdong China
• Production Capacity：100 Set,Sets Per Month

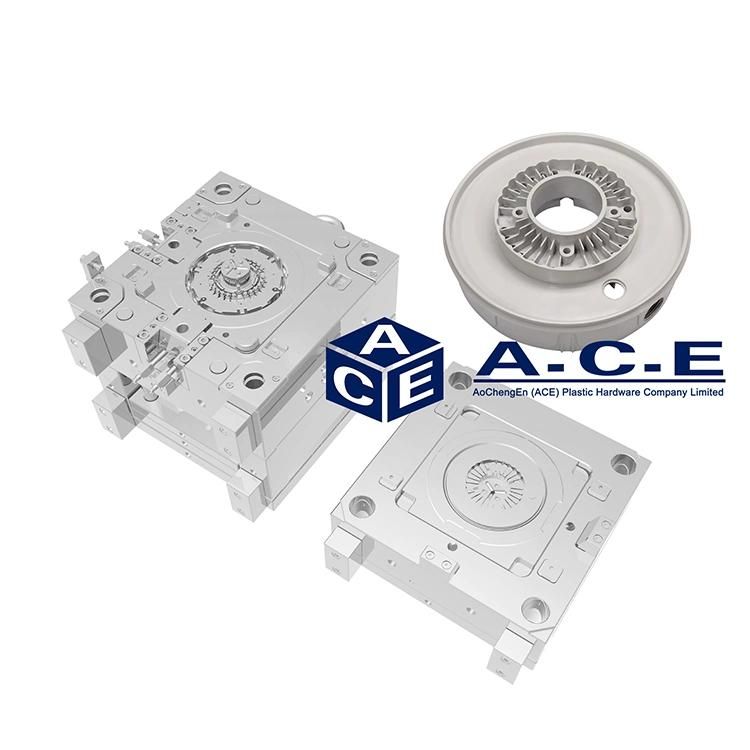

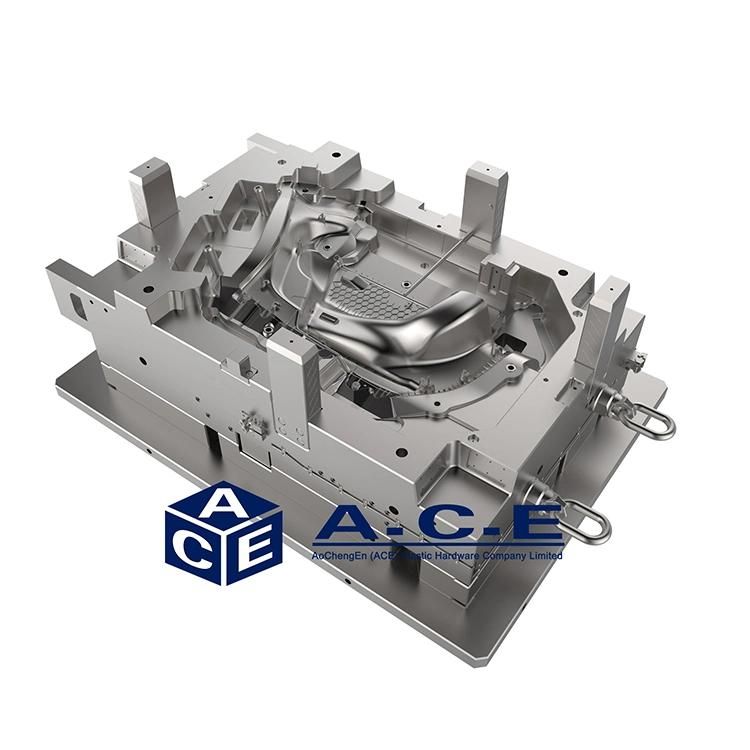

PLASTIC INJECTION PART BASIC INFORMATIONProduct  NameHigh Precision Mold Surface RequirementTexture EDM SPI Chrome CoatingPlastic Part Resinthermoplastic/ThermosettingTolerance Request UP to (±0.005mm)Production QuantityUp to 1 miliionPart Size RangeUp to 1500mmMulti InjectionSingle/Double/multi colorDesign SoftwareData exchange: UG, PRO/E, SOLIDWORKS, CAITA,  CAD, STP, X_T, IGS, PRT, DWG, DXFQuality AssuranceDesign Control, Steel Hardness Inspection Report, Steel Dimension Control Report, Mold Core and Cavity Dimension Inspection ReportPLASTIC INJECTION MOULD BASIC DESCRIPTIONInjection SystemHot runner /Cold RunnerCavitationSingle /Mutil CavitesEjector SystemPin/air Valve/Stripper plateSteel Standard ASSAB/FINKL/BOHLER/ Groditz/BuderusCoolingBaffles/Sprin Piple/3D printing water lineStandard Delivery 40 days  or 5 weeksStandard Parts/CylindersDME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/MerkleDesign CapabilityDFM,Mould flow analysis,Product optimization, Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's ideaDocuments / Reports ProvidedFully drawing,Weekly Processing Report, Steel Dimension report, Processing Report,Sample Dimension Report.ACE able to built the automotive parts Automotive Seat back Automotive Deckilid trim           Automotive Door Handle       Automotive  Door Trim           Automotive Engine parts Automotive  Roof Parts        Automotive Lighting parts     Automotive  Mud Guard parts         Automotive Air bags      Automotive Air conditioner Components

ACE has been a key supplier to some of the most well known automotive OEMs ACE's infrastructure of complete resources allows our clients to focus on what's most important to the automotive market-zero defects, and lowering overall costs











Our Services

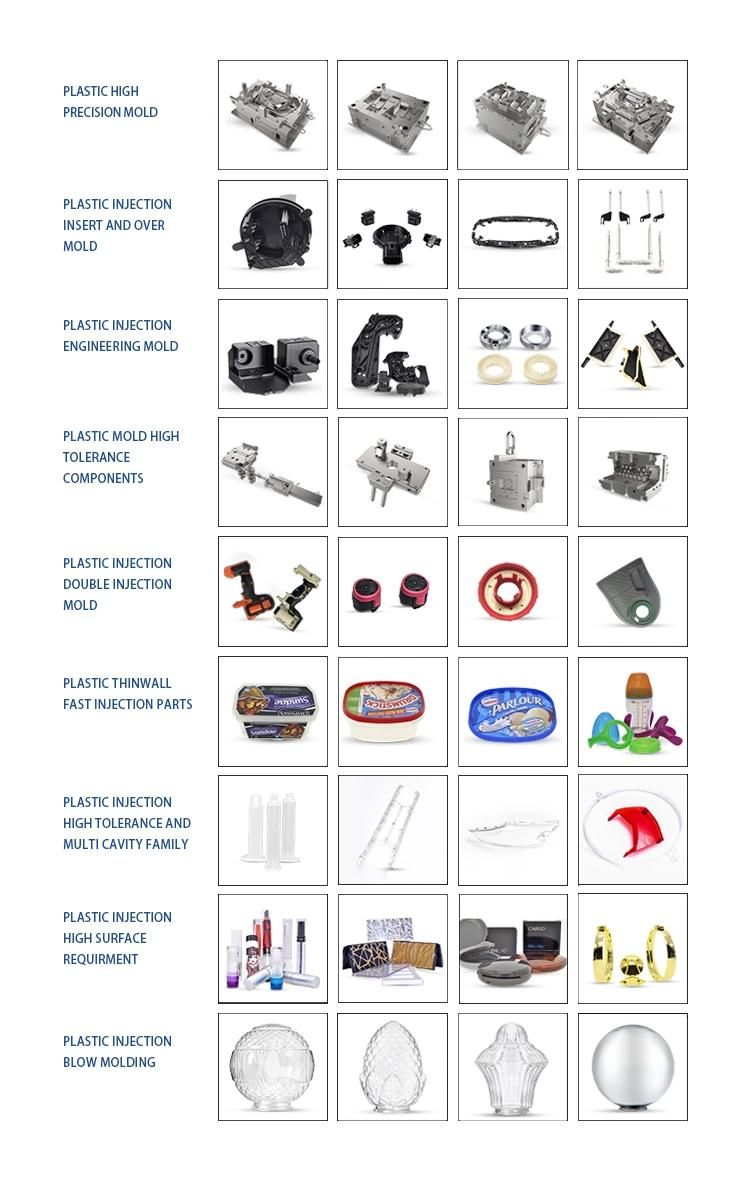

ACE Molding Group is a privately owned company specializing in the design and manufacture of high-quality plastic injection molds and injection molded parts for the international market and Have been engaged in the manufacturing sector since our inception.Is an OEM/ODM factory, customized your products to meet your needs is our advantage, We are managed by a group of professionals with many years of experience in mold design, molding technology and Quality control. We have developed an excellent understanding of the technical and quality requirements needed. We build tools to fit your expectations and match your quality standards.Our team of CAD designers will ensure that your imagination is incorporated into the actual product!If you want to create prototype or mass-produce in a very specific project, we can help you achieve your vision!Our products include :
*Custom Plastic Injection Parts
*Multi-cavity plastic parts
*High Precision Molds
*Insert & over molding
*Double Short Molding
*Unscrewing Molding
*Gas-assisted Molding
*Die Casting Molding
*Prototype plastic parts and Low cycle plastic parts molding
*Gas Assist molding
*Elastomeric molding
*IML & IMD part production
*Thin wall plastic molding
*High temperature molding
*Foam Injection molding

Why Choose Us
1. We have our own design and development team and factory, with more than 14 years of product production experience. Familiar with and good at developing business with overseas market.
2. We can provide OEM/ODM services for all kinds of customers, and our professional support team will provide services for customers 24 hours a day.
3. We have a very strong quality control system to ensure the best quality of our products, the best service and competitive price.
4. Samples are always available for quality inspection and can be sent to you very quickly.
5. Design ability: design according to customer requirements.
6. We deliver goods on time and cooperate with customers sincerely.

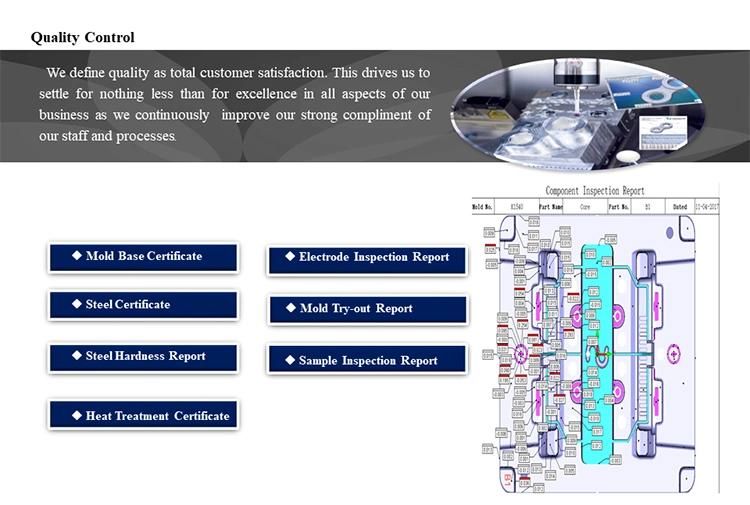

Inspection Method

We will provide fully dimension checking before mold test.
Make sure all components and mold dimension under correct tolerance. if customer needed, we can provide all these documentation for their reference.

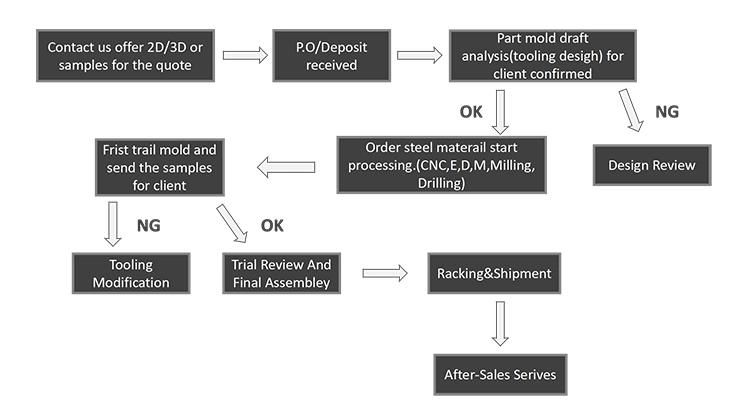

How To Order
Please kindly email us your inquiry, and our professional team is committed to providing personal service at the lowest possible prices to you.

Other Products
Our website lists some of our successful products, but please note that this is just one example on behalf of our products and services, so if you can't see the products you want, please contact us immediately. We warmly welcome customers all over the world and are looking forward to establishing a steady and long-term business relationship with you .



Company Profile
We are managed by a group of professionals with many years of experience in mould design, molding technology and quality control. Our clients are able to communicate with us freely in English, Japanese ,German and US, Since we build exclusively for the international market, mainly Europe, Japan North & South America, we have developed an excellent understanding of the technical and quality requirements needed.






Capability - Equipment listCapacity* More than 350 sets/year
* Maximum mold weight: 20 tons
* Maximum mold size: 1600mm*900mm*900mmTolerance* Mold: 0.01mm
* Plastic part: 0.015m

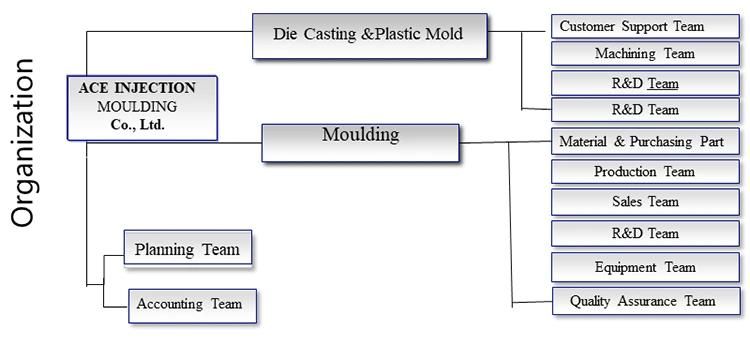

ACE MOULDING EQUIPMENT & PRESS LIST 2020DepartmentMajor EquipmentNameSpecificationUnitTotal     Mold DepartmentCNC Machining CenterROEDERS RFM-800 Precision Centre Made in Germany36000/min214CNC Machining CenterROEDERS RXP-500 Precision Centre with Renishaw online inspection Made in Germany50000/min2CNC Machining CenterROEDERS RFM-600 Precision Centre with Renishaw online inspection Made in Germany42000/min2CNC Machining CenterROEDERS RFM-600 Precision Centre Made in Germany42000/min2CNC Machining CenterKT-600II Precision Centre24000/min4CNC Machining CenterShenghong taiwan85002Electric Discharge Machine(EDM)SODICK EDM MachineAD30L411SANDY EDM MachineED32Wintop3503WintopDE -6502Milling MachineMilling machine16SS89MazakMilling machineQTN1501Cutting MachineCutting machineMV1200S33Drill Press MachineDrill Press machineZ3032X1011Molding DepartmentPlastic injection machineInjection machineKiaming 58T124Kiaming 98T1Kaiming128T4Kaiming 168 T2HaiTian 200T8Taiwan 250T1Toshiba 220T1Kaiming 400T2Kaiming 450T1HaiTian 650T2HaiTian 1300T1Quality DepartmentInspection machine2.5D Video Measuring SystemVMS-2015F12Alberlink CMMHR-150A22organlzation
Currently possess a strong team with 140 people, including
*32 Design & Engineers ( ≥ 10 years' experience)
*12 CNC programmers
*8 project engineers
*6 Sales people
*5 full-time quality inspection personnel
*4 people in logistic team
*60 tool makers
*13 Office worker

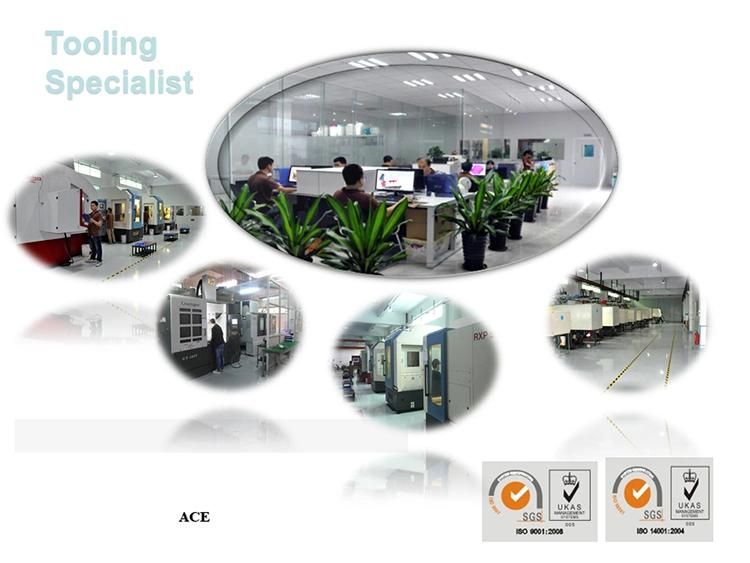

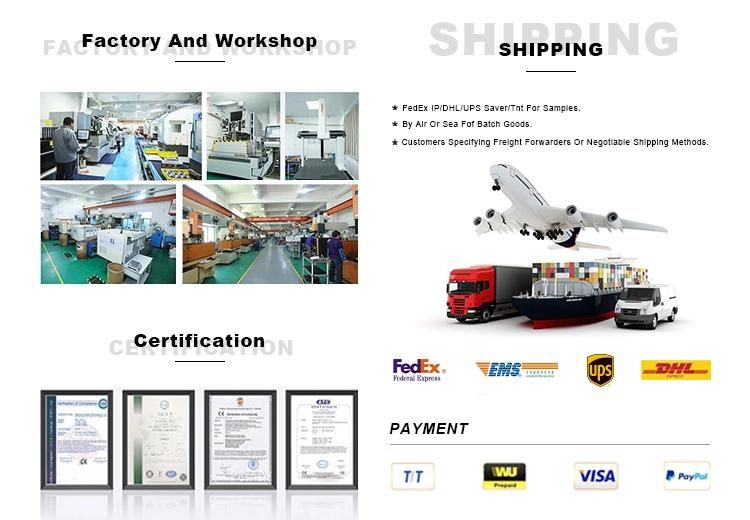

Workshop
Our factory is under ISO standards & certification.This insures productivity and total control on quality.

Packaging &Shipping

Our standard packaging for plastic injection parts we use PP bag plus cardboard boxes or as per customer requirements.
Our standard packaging for plastic injection mold is wooden pallets or wooden cases.


F A Q
Q: What services do you provide?
A: We manufacture plastic injection molds and produce plastic injection parts for sampling and bulk production.We also provide mold design services.


Q: How can I contact you?
A: You can send us an inquiry via email, Alibaba,Alibaba TradeManager, WhatsApp, Skype or Wechat. We will reply to you within 24 hours.


Q: How can I get a quotation?
A:After receving your RFQ, we will reply to you within 2 hours. In your RFQ, please provide the following information and data in order for us to send you competitive pricing based on your requirements.a) 2D part drawings in PDF or JPG format & 3D part drawings in UG, PRO/E, SOLIDWORKS, CATIA, CAD, STP, X_T, IGS, PRT, DWG, or DXFb) Resin information (Datasheet)c) Annual quantity requirement for parts


Q: What shall we do if we don't have part drawings?
A: You can send us your plastic part samples or photos with dimensions and we could provide you our technical solutions. We will create .


Q: Can we get some samples before mass production?
A: Yes, we will send you samples for confirmation before start of mass production.


Q: Due to time difference with China and overseas, how can I get information about my order progress?
A: Every week we send weekly production progress report with digital pictures and videos that shows the production progress.


Q: What is your leadtime?
A: Our standard leadtime for mold production is 4 weeks.For plastic parts is 15-20 days depending on the quantity.


Q: What is your payment term?
A: 50% as payment deposit, 50% balance will be paid before shipping. For small amount, we accept Paypal, Paypal commission will be added to the order. For big amount, T/T is preferred


Q: How do you deliver the goods?
A: We have our own logistics department that could provide shipping costs via Sea or Air freight, Incoterms EXW, FOB, DDP, DDU etc. Or we can work with your appointed shipping forwarder.


Q: How can I guarantee our quality?
A: During mold making, we do material and part inspection. During part production, we do 100% full quality inspection before packaging and reject every parts that is not according to our quality standard or the quality approved by our client.
