• Mould of Cavity：Customized
• Drawing Format：Auto-CAD
• Core Pulling System：Motor ,Oil Cylinder, Stripping Plate, Angel Pin Et
• Mould Design Software：Ug,Proe,CAD
• CNC Tolerance：0.003 to 0.005 mm
• Machine：CNC,EDM
• Cooling System：in Core Baffle Cooling and in Cavity Plate Chain D
• Steel of Mouldbase：S50c. Lkm Standard^ etc
• Steel of Cavity & Core：DIN 1.2738,DIN 1.2344c
• Polish：Diamond Polish
• Delivery Time：35-60 Working Days
• Mould Life：500,000-1,200,000shots
• Customized：Customized
• Standard：HASCO
• Certification：ISO
• Installation：Fixed
• Design Software：AutoCAD
• Runner：Cold Runner
• Model NO.：JZ
• Hardness of Cavity & Core：42-45 HRC
• Hardness of Wear Parts：42-48 HRC
• Parts Dimension Range：From 25mm to 630 mm
• Transport Package：Wooden Box
• Trademark：Jingzheng
• Origin：China
• HS Code：8480719090
• Production Capacity：1200 Molds,Year

Basic Info.

Model NO. JZ Runner Cold Runner Design Software AutoCAD Installation Fixed Certification ISO Standard HASCO Customized Customized Mould Life 500,000-1,200,000shots Delivery Time 35-60 Working Days Polish Diamond Polish Steel of Cavity & Core DIN 1.2738/DIN 1.2344c Steel of Mouldbase S50c. Lkm Standard^ etc Cooling System in Core Baffle Cooling and in Cavity Plate Chain D Machine CNC,EDM CNC Tolerance 0.003 to 0.005 mm Mould Design Software Ug,Proe,CAD Core Pulling System Motor /Oil Cylinder/ Stripping Plate, Angel Pin Et Drawing Format Auto-CAD Mould of Cavity Customized Hardness of Cavity & Core 42-45 HRC Hardness of Wear Parts 42-48 HRC Parts Dimension Range From 25mm to 630 mm Transport Package Wooden Box Trademark Jingzheng Origin China HS Code 8480719090 Production Capacity 1200 Molds/Year

Product Description

PPR Ball Valve Plastic Pipe Fitting Injection Mould. High quality with competitive price, by using Chinese, Korean, Japan, Germany Standard to make moulds, the products' dimension range from 25mm to 630 mm.

Our Advantages ! ! !

1.Good experience in mould making since the year of 1998.

2.Patent in collapsible fitting moulds.

3.Machinery core pulling system save cost and increase production efficiency.

4.Perfect core pulling distance within 180mm.

5.Excellent R&D team.(We can offer you 3D mould design with all details within one day.)

6.Efficiency production department.(We can finish Push-Fit fitting mould of size 110mm in stwo cavity with in 45days.)

7.Competitive price in save level of mould manufactuers.

Name	PPR pipe fitting  mould
Plastic material	PPR
Steel of Cavity & Core	DIN 1.2738/DIN 1.2344c
Steel of Mouldbase	S50C. LkM standard^ etc
Nos of Cavity	Customized
Hardness of Cavity & Core	48-52HRC
Hardness of Wear Parts	55-60HRC
Core pulling system	Motor /oil cylinder/ stripping plate, angel pin etc
Mould Accessories	DME/HASCO Standard
Cooling system	In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish	Diamond polish,
Molding   life	500,000-1,200,000shots
Runner	Cold
Delivery time	35-60 work days
Packing	wooden case
Payment	T/T L/C

Product Details:

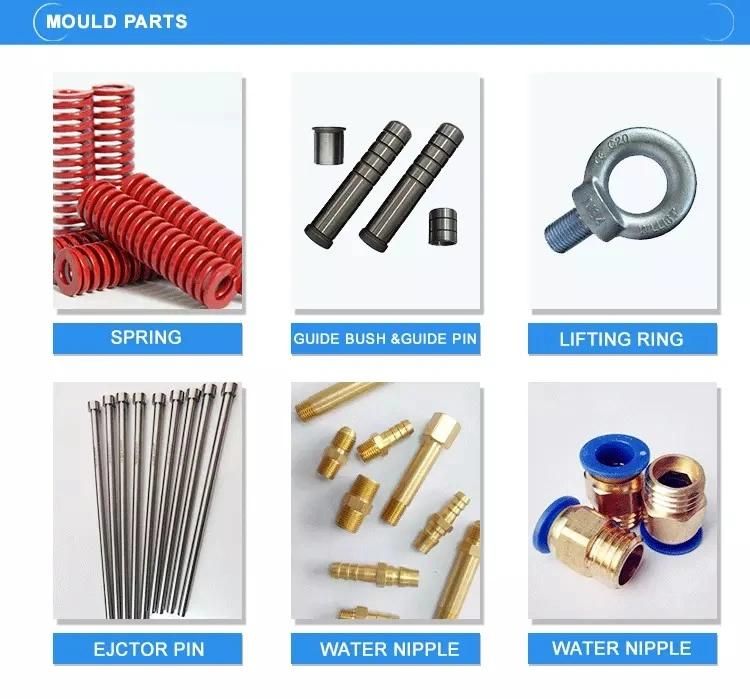

Mould Parts:


Our Certificates:

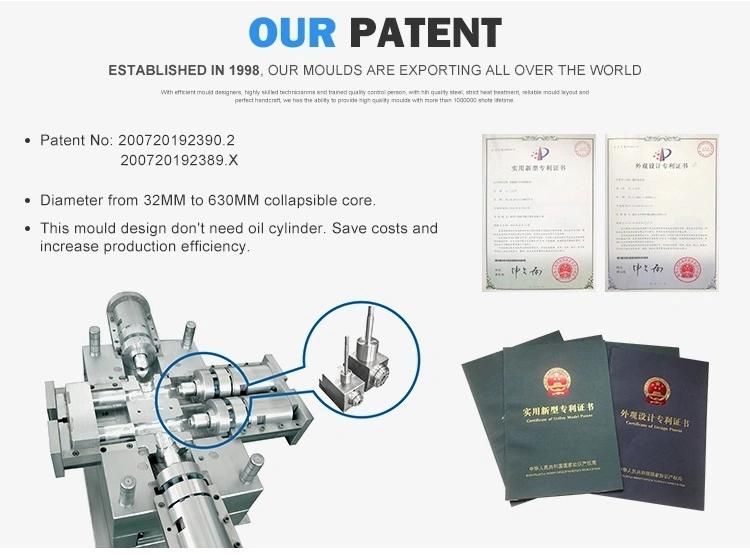

Our Patents:



Factory Information:




Packing And Shipping:
