• Transport Package：Wooden Crate
• Mould Design Software：Ug,Proe,CAD,Catia,Solidworks
• Mould Delivery Time：45 Days
• Mould Life：More Than 500k Shots
• Mould Steel：718 (34-38HRC)
• Mould Name：Plastic Injection Drawer Mould
• After-sales Service：3 Years
• Customized：Customized
• Standard：DME
• Installation：Fixed
• Design Software：UG
• Runner：Cold Runner
• Application：Commodity, Home Use
• Model NO.：JSL-F15444
• Specification：Dme
• Trademark：JSLMOULD
• Origin：China
• HS Code：8480719090
• Production Capacity：300sets,Year

Basic Info.

Model NO. JSL-F15444 Application Commodity, Home Use Runner Cold Runner Design Software UG Installation Fixed Standard DME Customized Customized After-sales Service 3 Years Mould Name Plastic Injection Drawer Mould Mould Steel 718 (34-38HRC) Mould Life More Than 500k Shots Mould Delivery Time 45 Days Mould Design Software Ug,Proe,CAD,Catia,Solidworks Transport Package Wooden Crate Specification Dme Trademark JSLMOULD Origin China HS Code 8480719090 Production Capacity 300sets/Year

Product Description

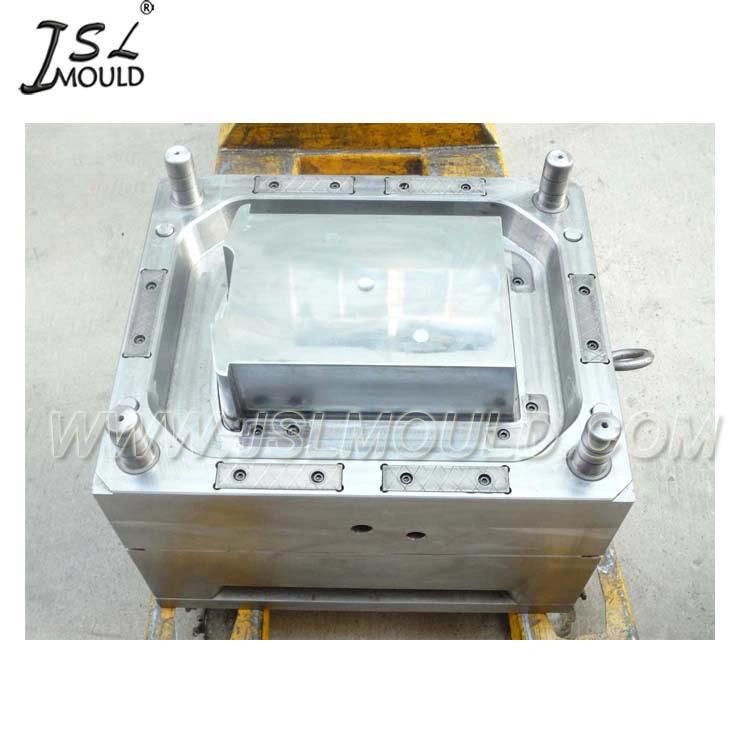

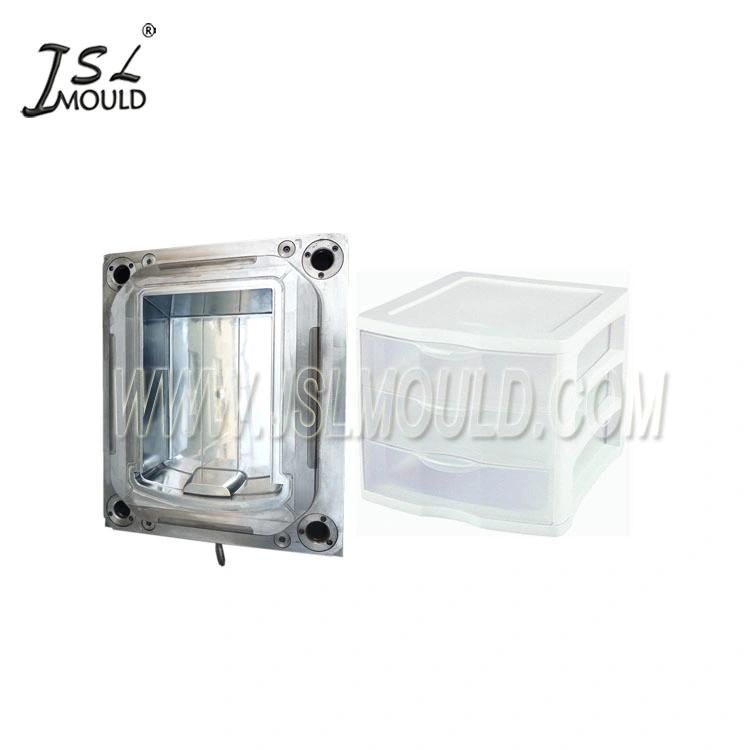

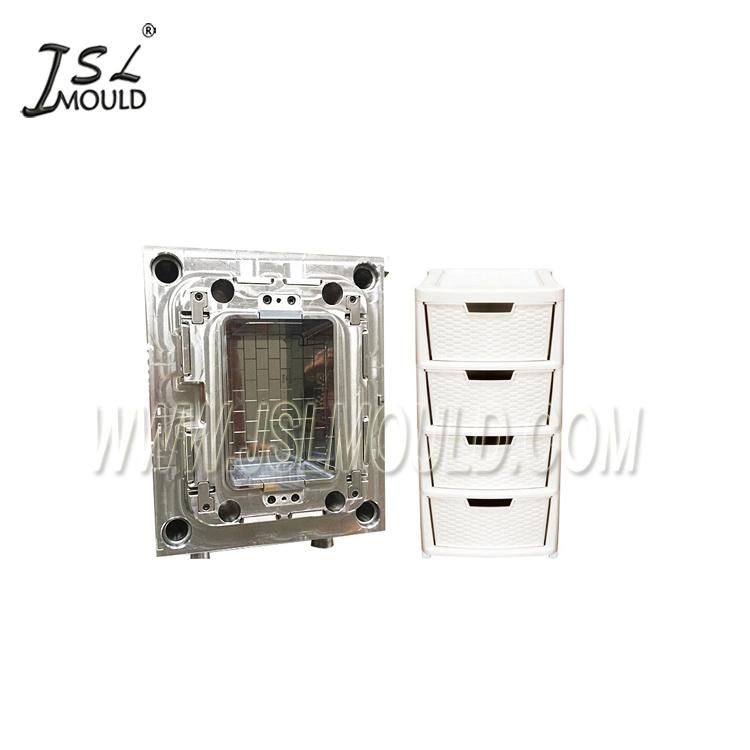

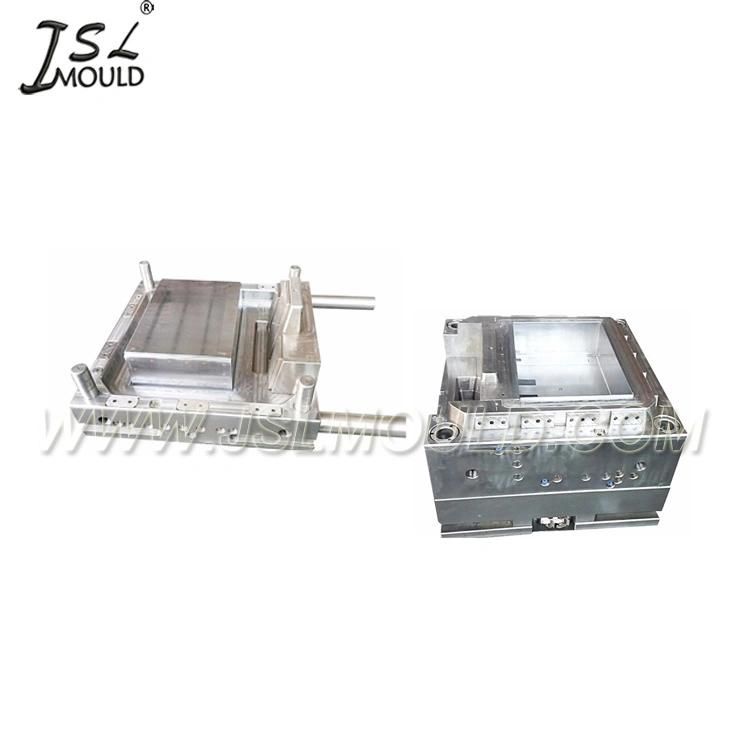

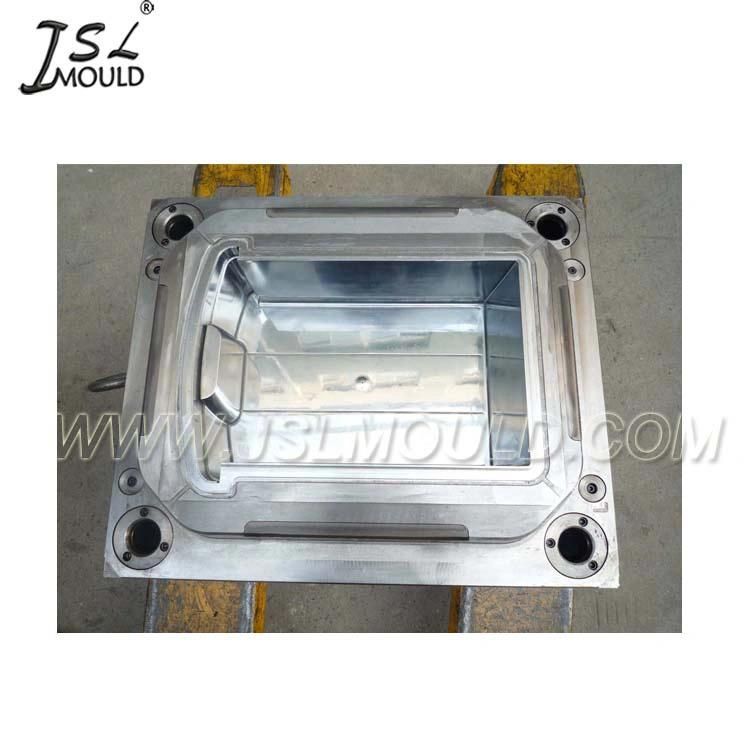

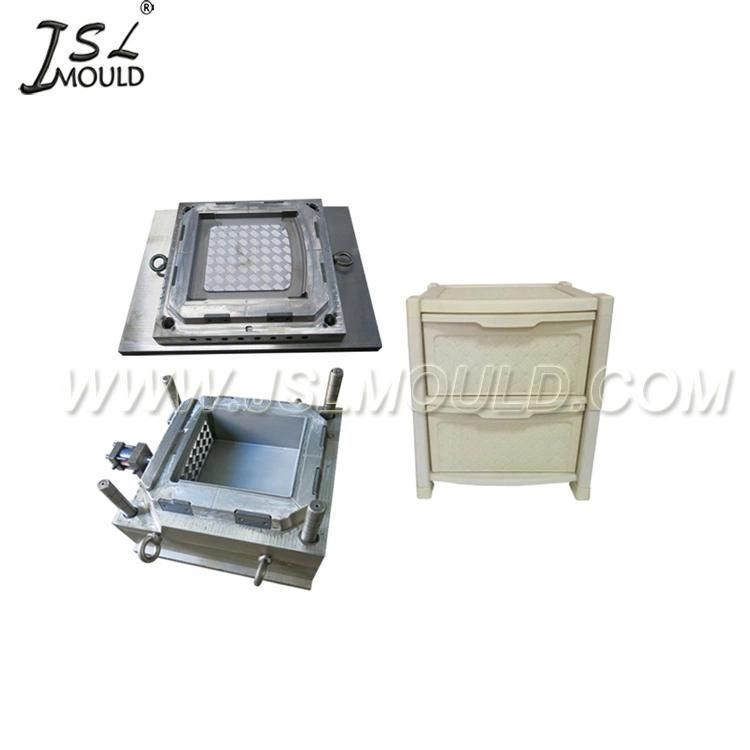

Product Name: Plastic injection drawer mould
Product material: PP
Core&Cavity Steel: 718
Steel hardness: HRC34-38
Mould Standard: DME
Injection System: Direct gate
Ejector System: Ejector plate

High quality, reasonable price
Good after-sale service
On time delivery

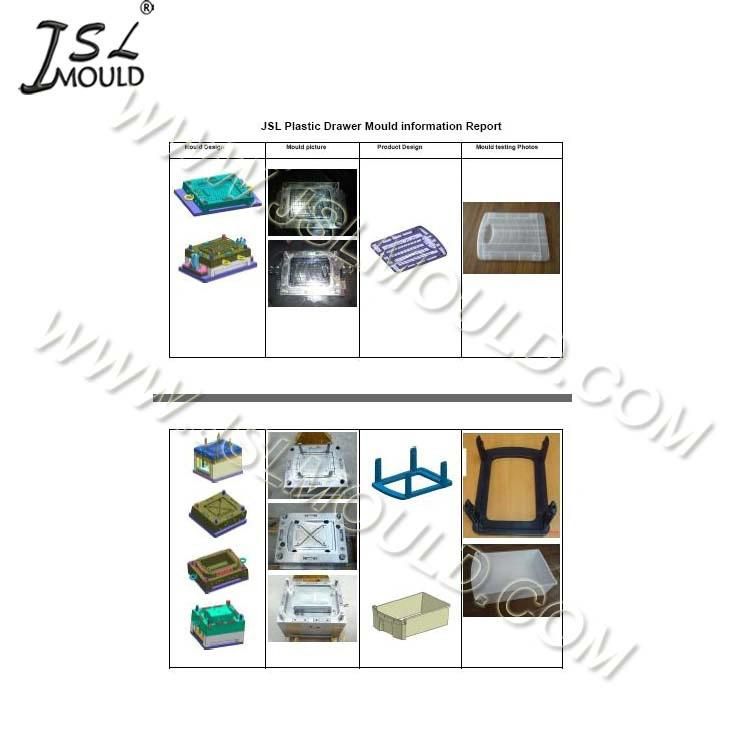

JSL Mould Quality Control
For the Q/C of mould, there are 3 steps:

1. Mould Material Q/C

- Mould Steel Checking(Hardness, flaw detection)

- Mould Standard Spare Parts Checking(hardness, size, flaw checking)

2. Mould Making Process Q/C

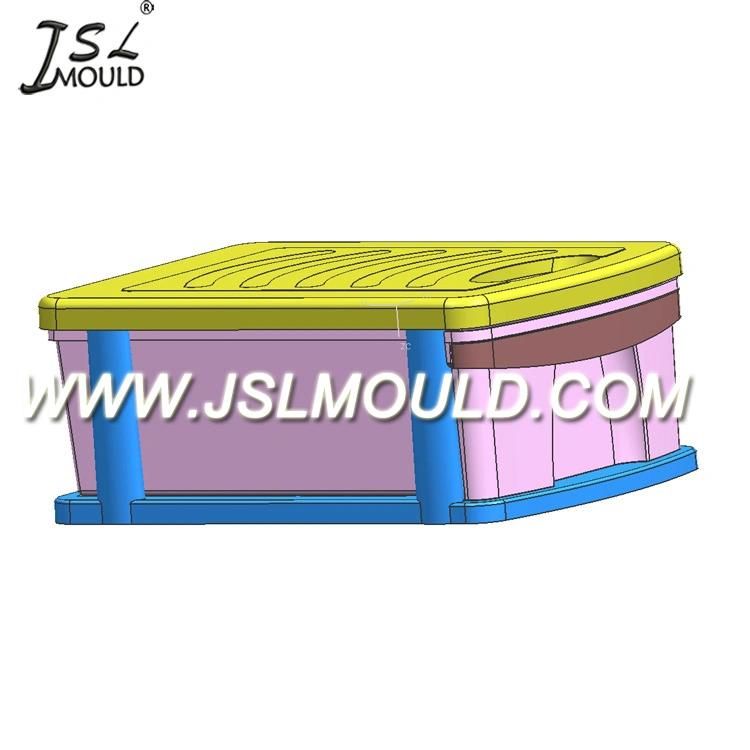

- design checking (part design, mould design, mould engineering drawing)

- checking each part of mould's size after machining, according to 2D drawing

- mould testing(check mould running condition)

3. Check with customer's requirement again before mould shipping.
