• Transport Package：Wooden Case
• Customized：Customized
• Standard：HASCO
• Certification：CE, ISO
• Installation：Mobile
• Model NO.：GY-I
• Trademark：GY
• Origin：China
• HS Code：847790000

 Material Properties1Densityg/cm³1.3±0.051.28-1.352Linear expansion coefficientK^-1(2.3-3.5)×10^-5(2.3-3.5)×10^-53Vicat softening temperatureºC≥230ºC≥233ºC4Melting point(0.45MPa)ºC≥240ºC≥2405Testing for tensile cracks-No cracksNo cracks6Shore hardness-80±580-857Impact strength(Unnotched)KJ/m²≥35≥388Tensile strength(longitudinal)MPa≥80^a≥82^a9Elasticity modulusMPa≥4500≥455010Elongation at break%≥2.5≥2.611Tensile strength(transverse)MPa≥70^a≥70^a12High temperature tensile strength(transverse)MPa≥45^a≥47^a13Low temperature tensile strength(transverse)MPa≥80^a≥81^a14Water resistance tensile strength(transverse)MPa≥35^a≥35^a15Aging resistance tensile strength(transverse)MPa≥50^a≥50^a1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
Storage Conditions
The strips will be stored in the ventilated and dry environment, horizontally placed, paying attention to waterproof, keeping away from the heat source, avoiding heavy pressure and the contact with acid, alkali as well as organic solvent.
 Delivery

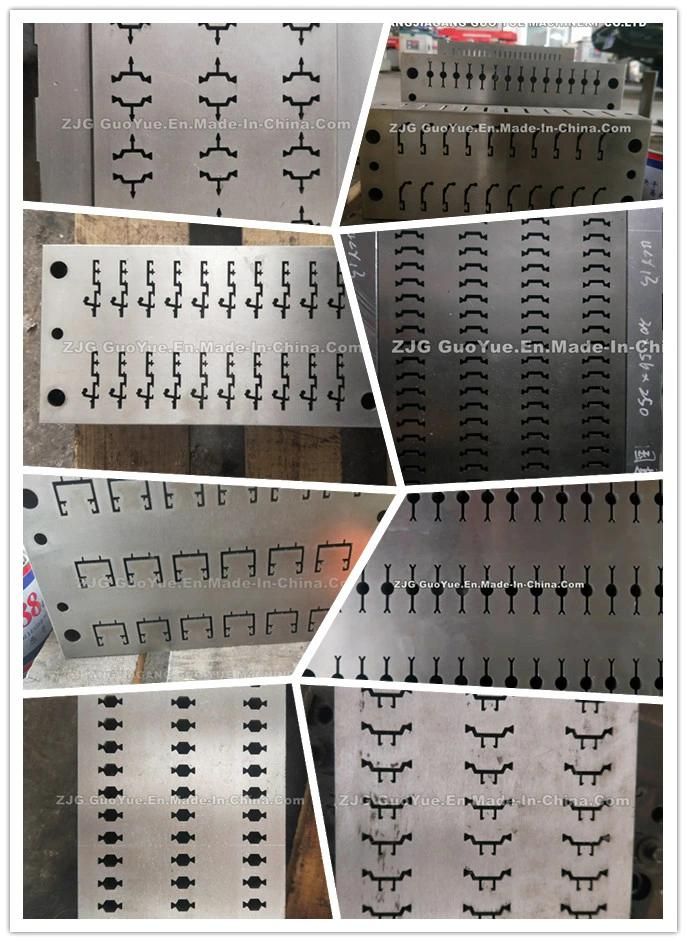

We have the production capacity of 100000 meters per day. For common specifications, we have molds, and will be shipped in 15-20 working days after receiving the deposit.








Packages

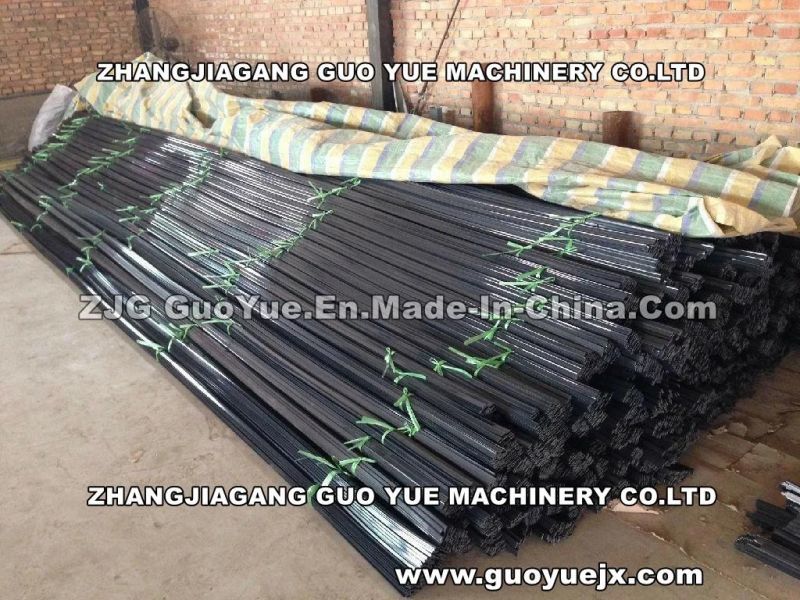

For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.

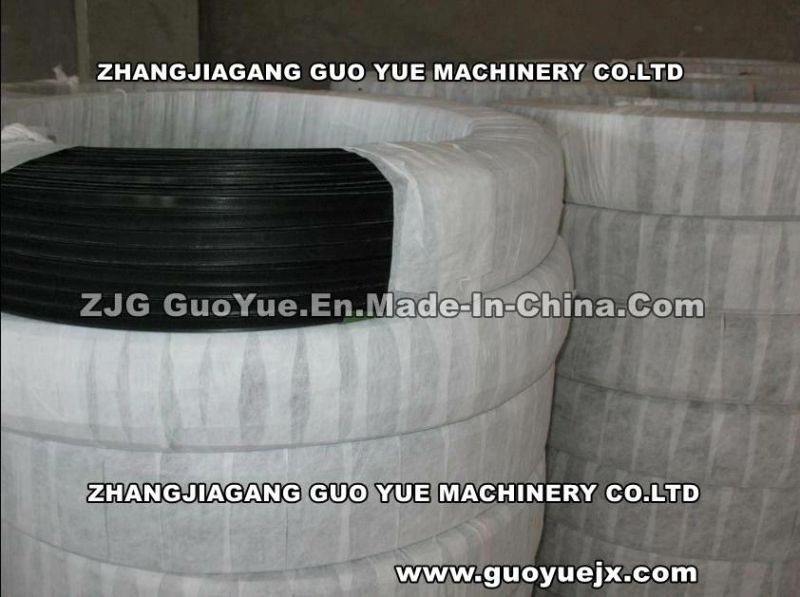

For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.




We are a professional manufacturer of polyamide insulating tape and plastic extruder. We have our own factory with good quality and low price. I have rich experience to share with you. Study together and make progress together
Please feel free to contact us if you have any problems.
Name:Mr gu
Phone:0086-13962466926
 Address:sanxing Town, Zhangjiagang City, Jiangsu Province, China
