• Specification：SGS, ISO
• Transport Package：Wooden Case
• Stamping Material：Stainless Steel, Aluminum Alloy, Brass, Copper etc
• Mould Material：Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
• Design Software：Auto CAD, Cae, PRO-E, Solidworks, Ug etc
• Standard：Hasco, Dme
• Tolerance：+-0.03mm
• Model No：Hh132
• Customized：Customized
• Packing：Wooden Case
• Lead Time：36 Days
• Name：High Precision Stamping Mould for Refrigerator
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：Normal Speed
• Mold Cavity Technology：CNC Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：HH132
• Trademark：huihai auto
• Origin：Zhongshan
• HS Code：8207300090
• Production Capacity：350 Sets ,Year

Basic Info.

Model NO. HH132 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Name High Precision Stamping Mould for Refrigerator Lead Time 36 Days Packing Wooden Case Customized Customized Model No Hh132 Tolerance +-0.03mm Standard Hasco, Dme Design Software Auto CAD, Cae, PRO-E, Solidworks, Ug etc Mould Material Cr12, Cr12MOV, DC 53, Skh-9, 45# etc Stamping Material Stainless Steel, Aluminum Alloy, Brass, Copper etc Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin Zhongshan HS Code 8207300090 Production Capacity 350 Sets /Year

Product Description

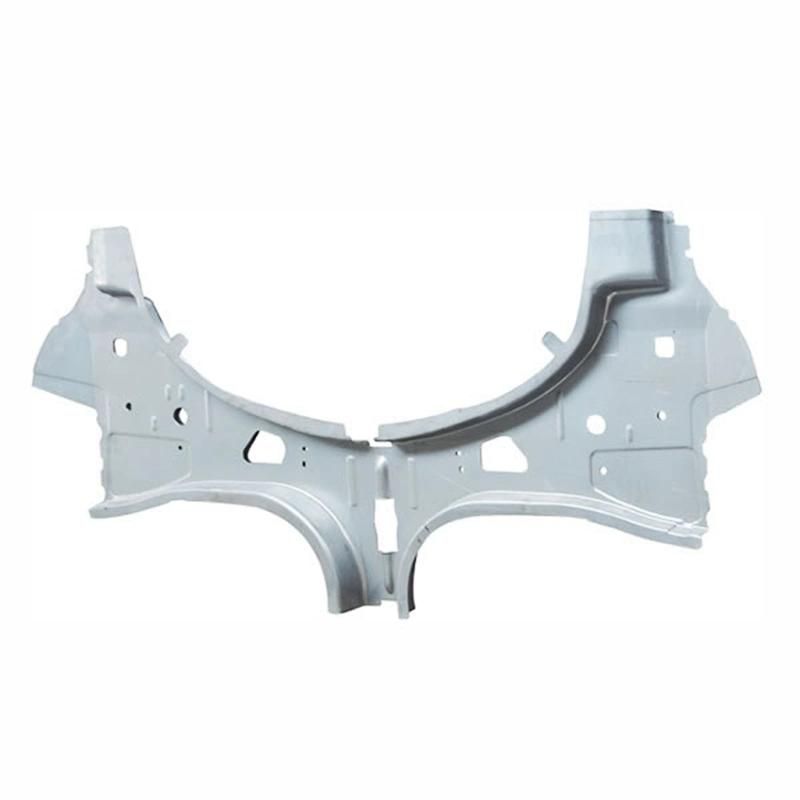

Stamping die for auto/automotive stamping die


Huihai auto has manufactured precision, high-quality, reliable and cost-effective single sheet metal stamping die and sheet metal progressive stamping die, home appliance and motor rotor stator for more than ten years. Our precision stage sheet metal auto stamping die and sheet metal progressive stamping die make your productivity, quality, design and economy as our important consideration. We can design and manufacture the simple or complex stamping die or mould fitting your exact applications.



Product Details:


Item Name: stamping die for auto/automotive stamping die

Mould Type: sheet metal stamping die, sheet metal stamping progressive die

Cavity: 1,2, 5,16,50….depends on your application

Die life: 500,000 shots

Application: home appliance, electronic hardware, auto parts, hardware

Lead Time: 30 to 60 days

Certificate: ISO9001:2008, SGS

Payment term: T/T, western union

Package: wooden case

Finish: polishing, heat treatment, TD coating, electroplating, chrome coated, painting, zinc-plating etc

Equipments: CNC machining center, EDM, WEDM, WEDM-HS, linear cutting machine, radial drill,   sawing machine, grinding machine, milling machine, lathe, punch, CMM, Rockwell-hardness-tester, projector, Dial Calipers, slide Calipers etc



Our main products:

Sheet metal stamping die, metal progressive stamping die, sheet metal stamping die for home appliance, sheet metal auto stamping mould, sheet metal stamping die for hardware, stamping die for motor rotor stator, sheet metal stamping etc.








Processing Equipments


Equipments	QTY
CNC	4
WEDM	2
WEDM-HS	2
EDM	3
Radial drill	8
Sawing machine	1
Grinding machine	4
Milling machine	1
Bench drill	4
Lathe	2
Tapping  center	1
Plate shears	1
Punch	3
Hydraulic machine	2




Inspection equipments:


Equipment	QTY
CMM	1
Projector	1
Rockwell-hardness-tester	1
Dial Calipers(0-300mm)	8
Slide Calipers(0-1000)	6
Pound scale	1




FAQs:

Q. What is your standard lead-time?
A. It is difficult to provide a standard lead-time without specific details regarding the particular part, the material gage, the surface requirement or other specific details required. But we control our normal lead-time is from 30 to 60 days.

Q. What is your on-time delivery record?
A. Our on-time delivery records is tracked, monitored, and communicated as we work to meet a 100% on-time delivery goal. Delivery is very important to our customers who need it to meet the hot sale period and it is very important for us to keep the long term relationship between us and our customers. Our on-time delivery record for last several years averages between 98% to 100%, and we make always 100% as our goal.

Q. How do you control your manufacturing processes?
A. Every part we manufacture starts with a complete review of the print, tolerances, customer specific part requirements and customer demands to insure all steps are on foot properly. We offer inspection document including setup sheet, materials we use, testing requirements, package requirements. If you need, we will schedule a kickoff meeting with you that maybe better.

Q. What's your finishing services?
A. Usually we offer polishing, painting, plating, heat treating and TD costing.


Q. What type of quality system you have?
A. We are certificated to SGS factory audit, ISO9001: 2008.

Q. Is small quantity is available?
A. Yes, we can accept the small quantity, even 1 set of stamping dies.

Q. How do you ship the goods?
A. We have the cooperate forwarder, they can ship your goods in short time with the favorable cost to your destination ports. B/L or telex release. Or you can use your shipping agent is available.



Stamping die for auto/automotive stamping die  flow:

1. place the mould order and pay the deposit;
2. our drawing or customers drawing;
3. customers check the design and confirm;
4. production process and the sample;
5. customers check the sample and confirm;
6. receive the balance and arrange the shippment;
7. offer afer sales services.


we want to be your preferred single metal stamping die and metal stamping progressive die or metal stamping parts builder, we ensure to deliver quality components to meet your deliveries.
