Nano Coated Wire Drawing Die for Welding Electrodes
Hangzhou Suntech Machinery Co., Ltd.- Hole Type：Round Mould
- Shaping Mode：Grinding
- Material：Steel
- Type：CVD coated wire drawing die
- Cavity：Single-cavity
- Surface Treatment：Polish
Base Info
- Origin：China
- Trademark：SUNTECHMACH
- Specification：40*25mm
- Transport Package：Carton Box
- Customized：Customized
- Warranty：1 Year
- Certification：ISO
- Application：Hardware, Steel Wire
- HS Code：8207209000
- Production Capacity：100000,Year
Description
Basic Info.
Application Hardware, Steel Wire Certification ISO Warranty 1 Year Customized Customized Transport Package Carton Box Specification 40*25mm Trademark SUNTECHMACH Origin China HS Code 8207209000 Production Capacity 100000/YearProduct Description

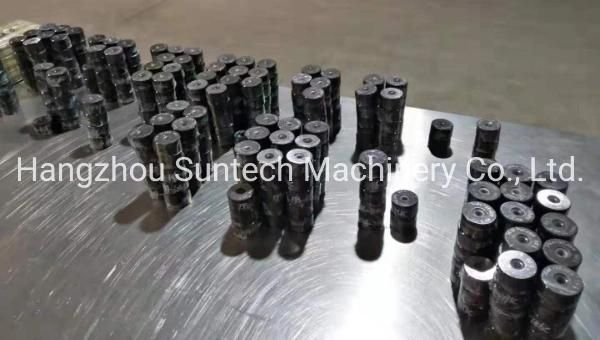

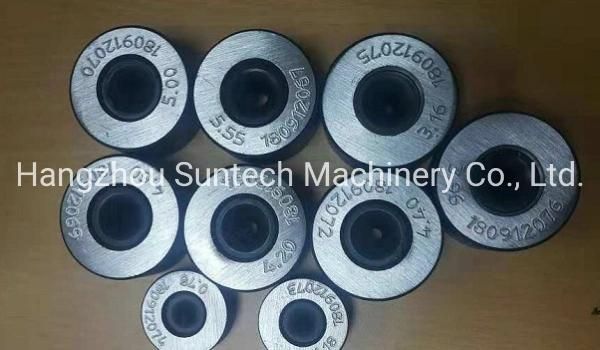

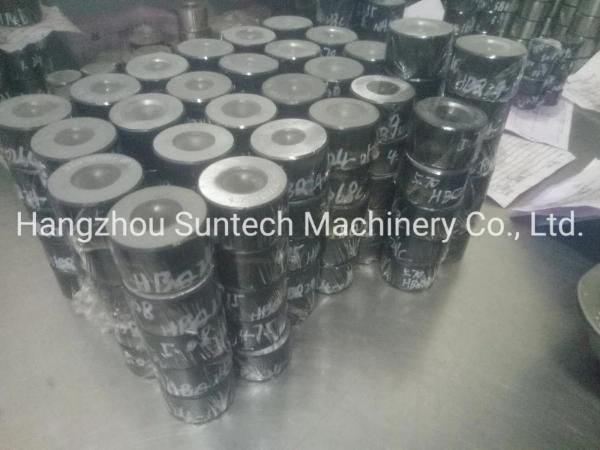

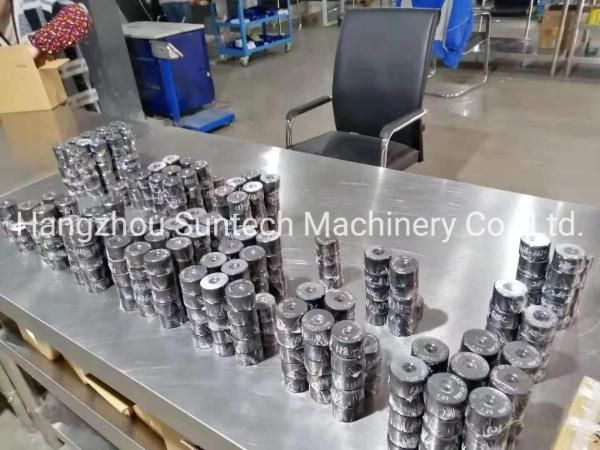

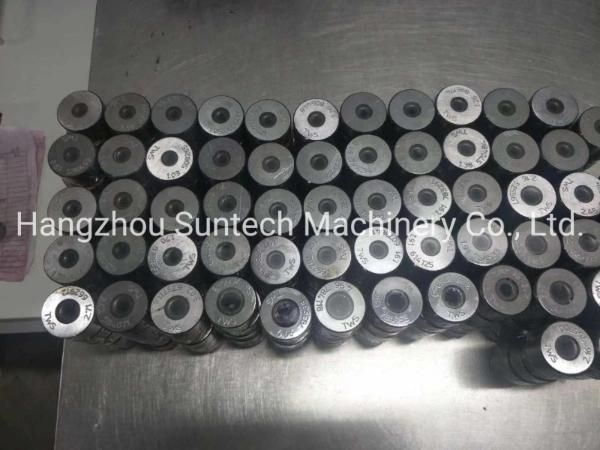

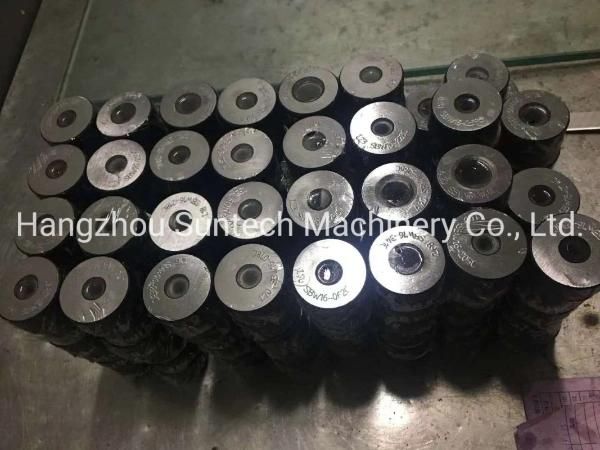

1. Product Name: Nano coated wire drawing die
2. Uses: Wire drawing machine for drawing wire drawing machine
3. Material:
3.1 Coating: CVD nano diamond coating
3.2 Core: tungsten carbide
3.3 Die sleeve: 45 steel
4. Precision:
4.1 Die core: Rough drawing (Φ2.2mm-Φ5.5mm): -0.02mm-+0.01mm (the last one is ±0.01mm)
Fine drawing (Φ0.8mm-Φ2.2mm): ±0.01mm
4.2 Die case: -0.05mm
4.3 Roundness error: ≤0.005
4.4 Compression angle: Φ1.2mm or less: 10°±2°
Φ1.2mm-Φ2.0mm: 12°±2°
Φ2.0mm-Φ5.0mm: 14°±2°
