• Transport Package：Wooden Case
• Surface：Polishing, Heat Treating,Td Coating, Plainting etc
• Cavity：1 to Multiple
• Software：Auto CAD, Cae, PRO-E, Solidworks, Ug
• Mould Material：Cr12, Cr12MOV, DC 53, Skh-9, 45#
• Tolerance：+-0.03mm
• Model No：Hh019
• Customized：Customized
• Lead - Time：45 Days
• Packing：Wooden Case

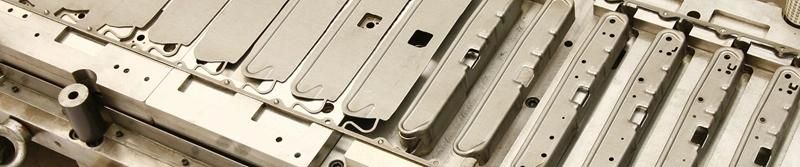

• Name：Custom Sheet Metal Stamping Mould, Die Tooling
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：Normal Speed
• Mold Cavity Technology：CNC Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：HH019
• Specification：SGS, ISO
• Trademark：huihai auto
• Origin：Zhongshan
• HS Code：8207209000
• Production Capacity：400 Sets , Year

Basic Info.

Model NO. HH019 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Name Custom Sheet Metal Stamping Mould/ Die Tooling Packing Wooden Case Lead - Time 45 Days Customized Customized Model No Hh019 Tolerance +-0.03mm Mould Material Cr12, Cr12MOV, DC 53, Skh-9, 45# Software Auto CAD, Cae, PRO-E, Solidworks, Ug Cavity 1 to Multiple Surface Polishing, Heat Treating,Td Coating, Plainting etc Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin Zhongshan HS Code 8207209000 Production Capacity 400 Sets / Year

Product Description


Our Advantages:
1. Competitive price
2. Strict quality control system (ISO9001 system manage)
3. Quick mold making and delivery (4-7weeks)
4. Advanced equipment, excellent R&D teams
5. Professional technicians and rich experienced workers

Huihai specializes in manufacturing and supplying of various moulds and dies, such as metal stamping dies, plastic injection moulds, motor stator&rotor molds and stamping parts and injection parts since 2005.
Huihai provides various molds & dies to the clients from USA, Spain, Italy, Russia and so on.
"Good quality with cost-effective" is the base of Huihai business. Huihai people keep creating value for customers as our mission.
ISO 9001: 2008 certificated.

Technical Specifications
Design Base    Customer product drawings or samples
Mold material    Cr12mov, SKD11, D2, M2, DC 53, SKH-9, Copper alloy or the material customer required.
Mold base    Standard mold base or customized
Standard component    MISUMI, PUNCH, DAYTON, DANLY (or Customer required)
Part material fit    SPCC, SPCE, SPCD, DC01, DC04, Stainless steel 304.430.316, Aluminum alloy, and so on
Design software    CAE, UG, CAD

Lead time: 4-7 weeks based on tooling construction

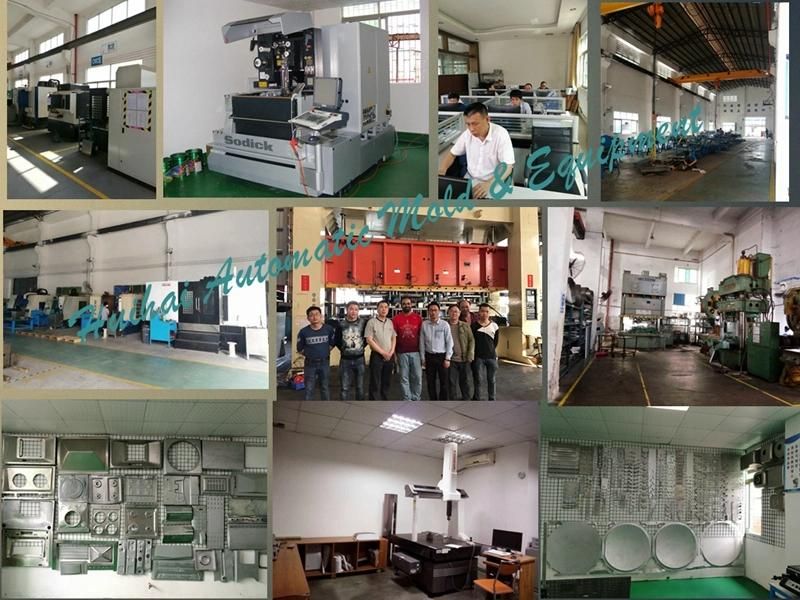

Processing Equipments

Machine Equipment    QTY    Tapping  center    1
CNC    5    Plate shears    1
WEDM    2    Mechanical Press    13
WEDM-HS    2    Hydraulic Press    2
EDM    3    Inspection Equipment    Qty
Radial drill    8    CMM    1
Sawing machine    1    projector    1
Grinding machine    4    Rockwell-hardness-tester    1
Milling machine    2    Dial Calipers(0-300mm)    8
Bench drill    4    Slide Calipers(0-1000)    6
lathe    2    Pound scale    1




Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.




Time Control

•    Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour.
•    The Parts we'll take into consideration


Overseas Clients:



WELCOME TO ENQUIRE AND TAKE MORE...
