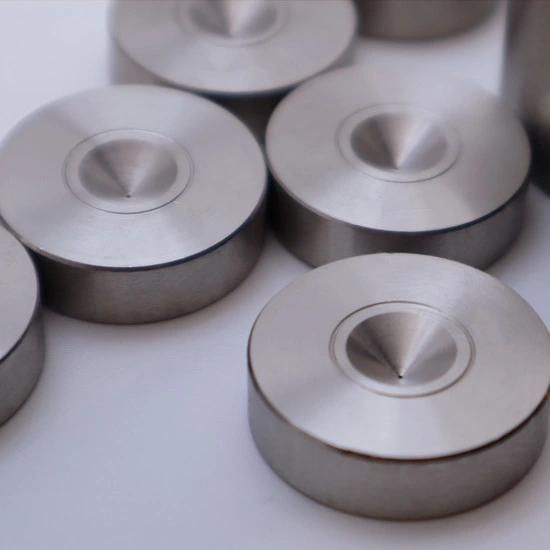

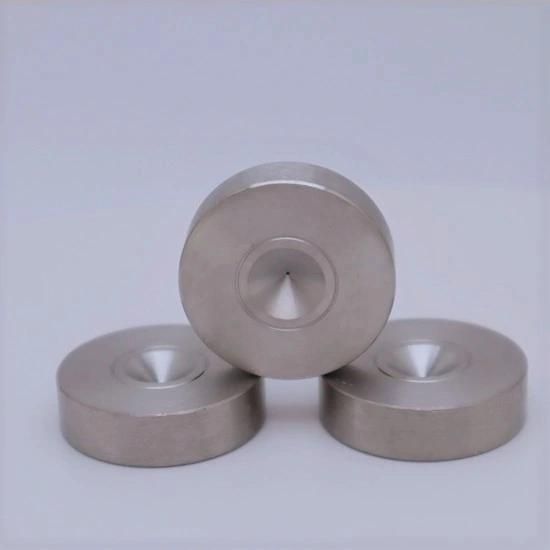

Diamond Wire Drawing Dies for Stainless Steel Wires Copper Aluminum Wires
Zhengzhou Hanguang Super Hard Tools Co., Ltd.- Shaping Mode:Grinding
- Material:Diamond
- Type:Wire Drawing Dies
- After-sales Service:Repairing Dies
- Hole Type:Round Mould
- Cavity:Single-cavity
Base Info
- Specification:0.0007"-0.059"
- Transport Package:Carton
- Cases:28X12, 25X6,28X10
- Customized:Customized
- Warranty:1 Year
- Application:Wires
- Surface Treatment:Polish
- Model NO.:0.018mm~1.50 mm
- Trademark:HG
- Origin:China
- HS Code:8207201000
- Production Capacity:150000pieces,Year
Description
3. Inner Geometry
Inner geometry of natural diamond dies combined with "Entrance,approaching,reduction,bearing length and exit part".
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f. Exit: Wire exiting.
4. Stainless Steel Wires
Stainless wires are general wires natural diamond dies are usually used for. Our diamond dies perform well in drawing stainless steel wires. The dies' inner geometry was carefully designed ,so there will be a good accuracy of wire diameters. At the same time, surface of the stainless steel wires will be smooth.
5.Features of HG Diamond Dies
23 years' experience in die manufacturing industry
Advanced manufacturing and inspecting machines
Imported natural diamonds with high quality
Imported sintering powder wtih high reinforcement
100% inspected by,high accuracy,conformity,stability
High work efficiency
Long life time
