• Stamping Material：Silicon Steel or Normal Steel
• Mould Material：Yg20, Cr12MOV, DC 53, Skh-9, 45# etc
• Design Software：2,3 D, Auto CAD, Cae, PRO-E, Solidworks, Ug
• Tolerance：+-0.003mm
• Model No：Hh104
• Customized：Customized
• Packing：Wooden Case
• Lead Time：48 Days
• Name：Custom High Precision Steel Metal Motor Core Die
• Parts Detection Method：Measurement of Three Axis NC
• Milling Speed：Normal Speed
• Mold Cavity Technology：CNC Milling
• Driving Motor Type：Permanent Magnet
• Model NO.：HH104
• Die Standard：Hasco, Dme
• Transport Package：Wooden Case
• Specification：SGS, ISO
• Trademark：huihai auto
• Origin：Zhongshan
• HS Code：8207300090
• Production Capacity：500 Sets , Year

Basic Info.

Model NO. HH104 Driving Motor Type Permanent Magnet Mold Cavity Technology CNC Milling Milling Speed Normal Speed Parts Detection Method Measurement of Three Axis NC Name Custom High Precision Steel Metal Motor Core Die Lead Time 48 Days Packing Wooden Case Customized Customized Model No Hh104 Tolerance +-0.003mm Design Software 2/3 D, Auto CAD, Cae, PRO-E, Solidworks, Ug Mould Material Yg20, Cr12MOV, DC 53, Skh-9, 45# etc Stamping Material Silicon Steel or Normal Steel Die Standard Hasco, Dme Transport Package Wooden Case Specification SGS, ISO Trademark huihai auto Origin Zhongshan HS Code 8207300090 Production Capacity 500 Sets / Year

Product Description

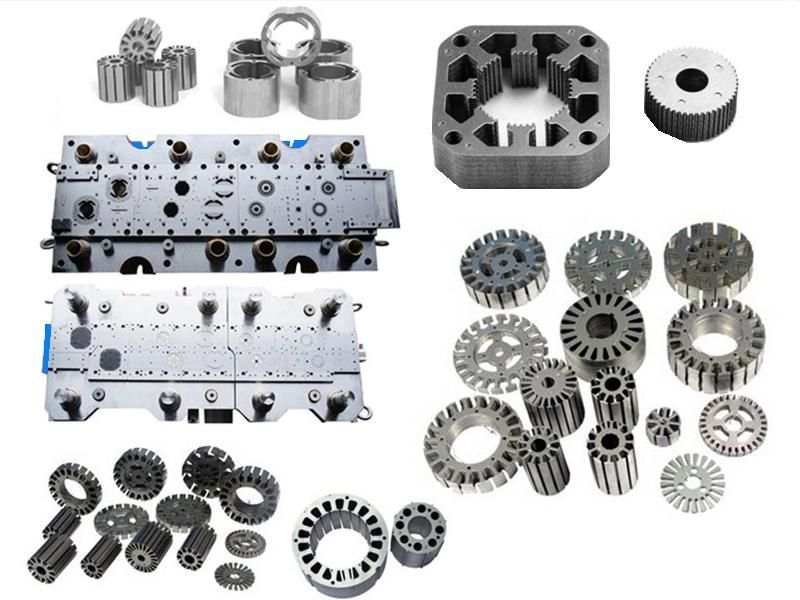

Custom high precision steel metal motor core lamination die


Huihai auto has manufactured precision, high-quality, reliable and cost-effective single steel metal stamping die and steel metal stamping progressive mold for the automotive, home appliance and motor rotor stator for more than ten years. Our precision stage steel metal stamping die and steel metal stamping progressive mold make your productivity, quality, design and economy as our important consideration. We can design and manufacture the simple or complex stamping dies or moulds fitting your exact applications.


Product Details:


Item Name: custom high precision steel metal motor core die

Mould Type: steel metal single stamping die, stteel metal progressive die

Cavity: 1,2, depends on your application

Die life: 100,000,000 shots

Application: home appliance, electronic hardware, auto parts, hardware

Lead Time: 30 to 60 days

Certificate: ISO9001:2008, SGS

Payment term: T/T, western union

Package: wooden case

Finish: polishing, heat treatment, TD coating, electroplating, chrome coated, painting, zinc-plating etc

Equipments: CNC machining center, EDM, WEDM, WEDM-HS, linear cutting machine, radial drill,   sawing machine, grinding machine, milling machine, lathe, punch, CMM, Rockwell-hardness-tester, projector, Dial Calipers, slide Calipers etc


Our main products:

Steel metal stamping die, sheet metal stage stamping die, steel metal stamping progressive die, steel metal stamping die for home appliance, steel metal stamping die for auto parts, steel metal stamping die for hardware, steel metal motor core die etc.




Processing Equipments


Equipments	QTY
CNC	4
WEDM	3
WEDM-HS	2
EDM	3
Radial drill	8
Sawing machine	1
Grinding machine	4
Milling machine	1
Bench drill	4
Lathe	2
Tapping  center	1
Plate shears	1
Punch	13
Hydraulic machine	2




Inspection equipments:


Equipment	QTY
CMM	1
Projector	1
Rockwell-hardness-tester	1
Dial Calipers(0-300mm)	8
Slide Calipers(0-1000)	6
Pound scale	1




FAQs:

Q. What is your standard lead-time?
A. It is difficult to provide a standard lead-time without specific details regarding the particular part, the material gage, the surface requirement or other specific details required. But we control our normal lead-time is from 30 to 60 days.

Q. What is your on-time delivery record?
A. Our on-time delivery records is tracked, monitored, and communicated as we work to meet a 100% on-time delivery goal. Delivery is very important to our customers who need it to meet the hot sale period and it is very important for us to keep the long term relationship between us and our customers. Our on-time delivery record for last several years averages between 98% to 100%, and we make always 100% as our goal.

Q. How do you control your manufacturing processes?
A. Every part we manufacture starts with a complete review of the print, tolerances, customer specific part requirements and customer demands to insure all steps are on foot properly. We offer inspection document including setup sheet, materials we use, testing requirements, package requirements. If you need, we will schedule a kickoff meeting with you that maybe better.

Q. What's your finishing services?
A. Usually we offer polishing, painting, plating, heat treating and TD costing.


Q. What type of quality system you have?
A. We are certificated to SGS factory audit, ISO9001: 2008.

Q. Is small quantity is available?
A. Yes, we can accept the small quantity, even 1 set of stamping dies.

Q. How do you ship the goods?
A. We have the cooperate forwarder, they can ship your goods in short time with the favorable cost to your destination ports. B/L or telex release. Or you can use your shipping agent is available.


Steel metal motor core die's flow:

1. place the mould order and pay the deposit;
2. our drawing or customers drawing;
3. customers check the design and confirm;
4. production process and the sample;
5. customers check the sample and confirm;
6. receive the balance and arrange the shippment;
7. offer afer sales services.



we want to be your preferred single sheet metal stamping die and sheet metal stamping progressive die or metal stamping parts builder, we ensure to deliver quality components to meet your deliveries.
