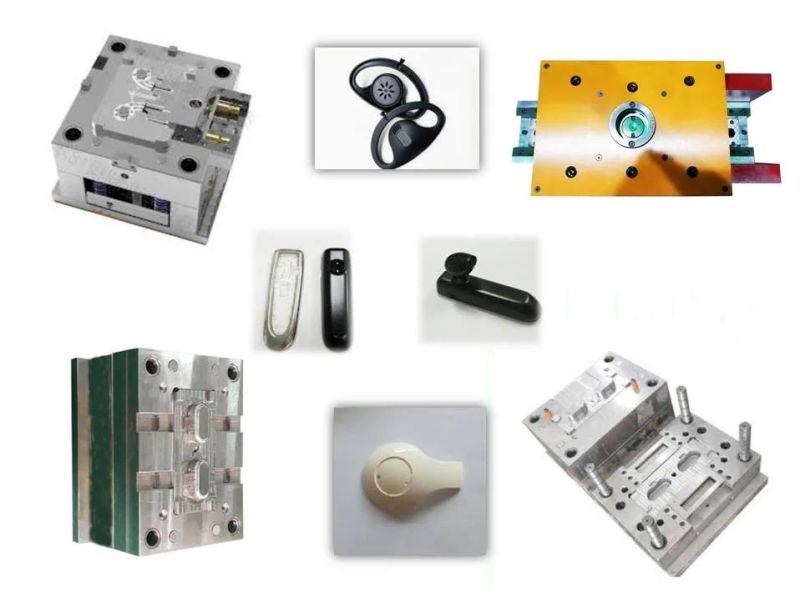

Electronic Wireless Bluetooth Headset Plastic Case Multi Cavity Injection Mold
Dongguan Howe Precision Mold Co., Ltd.- Application：Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware
- Process Combination Type：Single-Process Mode
- Plastic Material：ABS
- Mould Cavity：Multi Cavity
- Shaping Mode：Injection Mould
- Surface Finish Process：Polishing
Base Info
- Cycle Time：10-300S
- Mould Life：300,000-1,000,000 Shots
- Mould Base：Lkm, Hasco, Dme or Upon Customer′s Requirement
- Ejection System：Stripper Plate, Lifter, Push Bar, Ejection Pin
- Gate Type：Fan Gate, Sub Gate, Pinpoint Gate, Valve
- Hardness of Steel：46~56HRC
- Steel Treatment：Heat Treatment, Nitriding, Chrome Plating
- Core and Cavity Steel：DIN2312, 2738, 2344, 718h, S136h, 8407, Nak80, SKD
- Customized：Customized
- Certification：CE, ISO
- Standard：DME
- Installation：Semi Fixed
- Design Software：Ug, Autocad
- Runner：Hot Runner
- Model NO.：HW-201117-2
- Transport Package：PE Film for Plastic Parts, Wooden Case for Moulds
- Specification：According to customers′ drawings
- Trademark：HOWE,OEM
- Origin：Dongguan, China
- HS Code：8480719090
- Production Capacity：50sets,Month
Description
Mould informationInjection mold standard HASCO,DME,MISUMI,China lKM Standard. Please provide 2D, 3D, samples, or the size of the multi-angle pictures. Mould material 45#, 50#, P20, 738, 738H, 718, 718H, NAK80, 2316, 2316A, S136 etc. Product material ABS,PA6,PA66,PP,PC,TPU,POM,PBT,PVC,TPE,TPV,TPO,TPR,EVA,LDPE etc. Cavity Single-cavity, Multi-cavity, or by request. Runner system Cold runner or Hot runner. Mould precision ±0.01mm. Mould Life 50-100 million shots. Software CAD, PRO-E, UG, etc. Design Time 1-3 days (normal circumstances). Main technology Milling, grinding, CNC, EDM, wire cutting, carving, lathes, etc.
Mold making process
Company profile
Our team

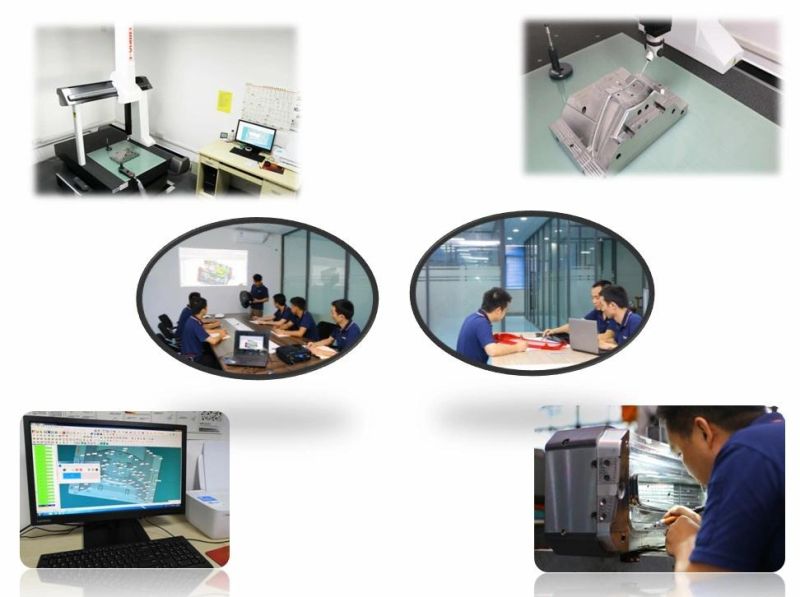

Quality control
Our services

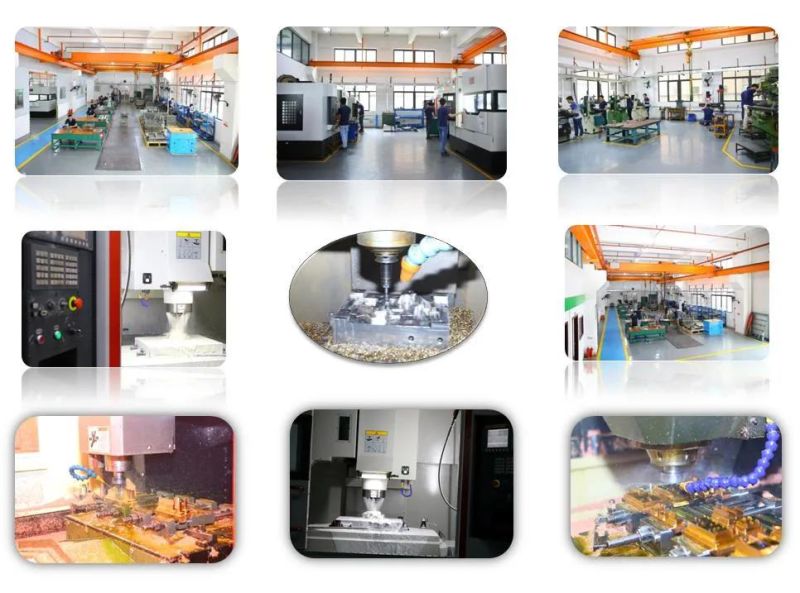

Our workshop

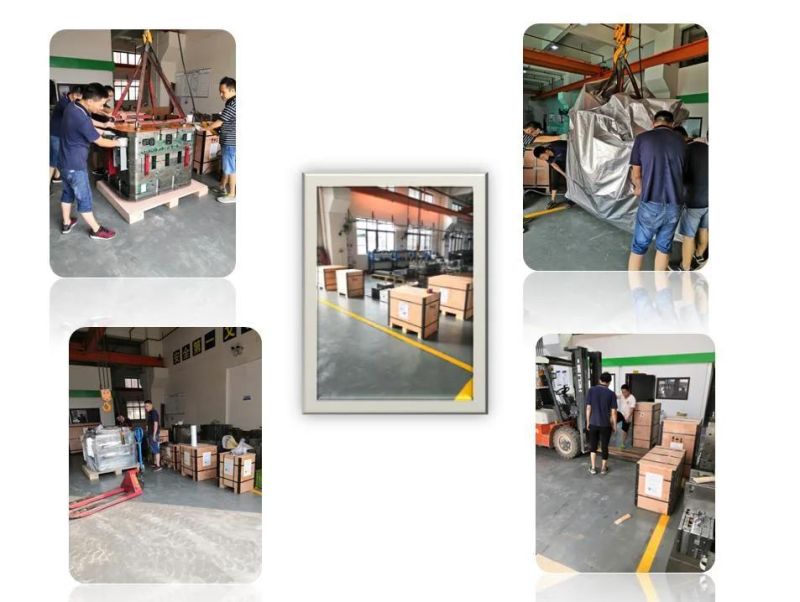

Packaging detail
Customer Visit
FAQ :
Q1: What kind of molds do you make?
A1: We are mainly making plastic mold injection and Die casting mold.
Sometimes we also make rubber molds according to our customer's requirements.
Q2: What types of files do you accept (drawings)?
A2: With our CAD systems we can accept the following files:
STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files, etc.
Q3: What kind of steel do you use for plastic mouldings?
A3: We can use any type of steel appointed by customers or popular in the market.
Such as P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.
Q4: Can you provide the steel certificate and heat-treatment certificate?
A4: Yes, We can provide a steel certificate or hardness certificate to prove.
Q5: Can you make the texture/text/heat_treatment /nitriding for the injection mold plastic?
A5: Yes, As a plastic mold factory, we have long term cooperated subsidiary factories that do those processes.
They are professional and well reputed in our local market.
Q6: How long is the lead-time for a plastic injection mold?
A6: It all depends on the mold's size and complexity. Normally, the lead time is 25-45 days.
If the Plastic Mouldings are very simple and not big size, we can work out within 15 days.
Q7: Do you make spare parts for your customer?
A7: Yes, we will provide spare parts for the mold if needed or required by clients.
Mold making process
| STEP | DETAIL |
| 1.Enquire /Quote | Discuss with customers after received buyer's samples or drawings. |
| 2.Negotiation | Quality,Technique requests,Mould material,Price,Delivery time,Payment,etc. |
| 3.Place order | Sales contract + proforma invoice. |
| 4.prepaid | Customer T/T deposit to us to start to design mould. |
| 5.Mould design | We will communicate&exchange the opinion with customers during making drawing according to the sample. |
| 6.Design confirmation | Send mould drawings to customers for confirmation. |
| 7.Mould processing | Start to manufacture, we will send photos to show the tooling process. |
| 8.Sample confirm | Send the sample or as negotiation. |
| 9.Mass production | If customers need mass production plastic products, We can also |
