• Specification：A
• Transport Package：Plastic Then Box
• Grit：1um - 50um
• Feature：Fine Grit , Long Working Life
• Shape：Round

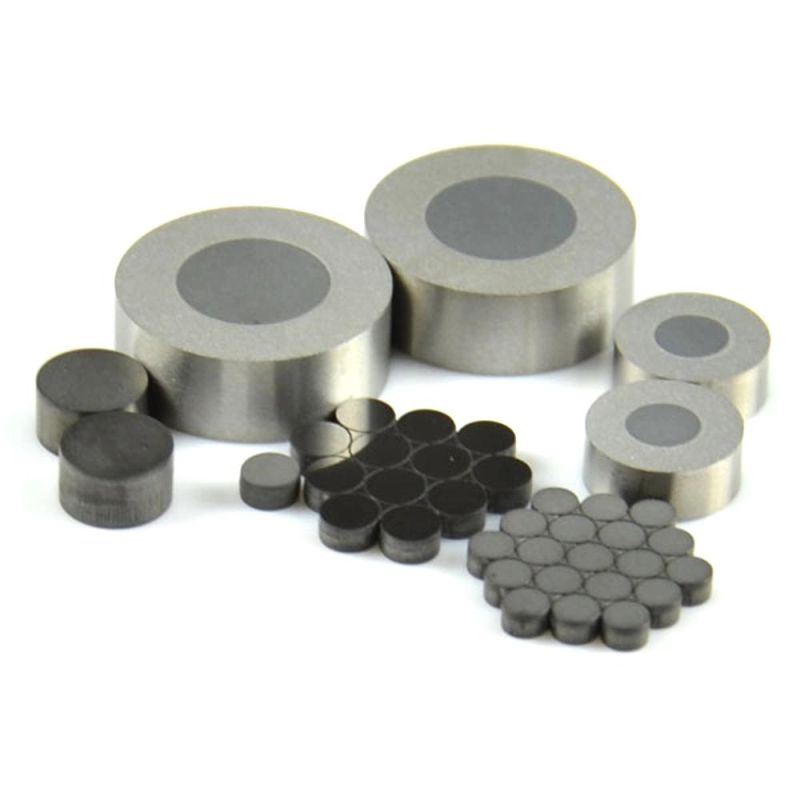

• Usage：for Making PCD Diamond Wire Drawing Die
• Name：Wire Drawing Dies
• Customized：Customized
• Model NO.：HX - PCD
• Trademark：HX
• Origin：China
• HS Code：4113960213
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. HX - PCD Customized Customized Name Wire Drawing Dies Usage for Making PCD Diamond Wire Drawing Die Shape Round Feature Fine Grit , Long Working Life Grit 1um - 50um Transport Package Plastic Then Box Specification A Trademark HX Origin China HS Code 4113960213 Production Capacity 100000PCS/Month

Product Description

Size rangetolerancecasing ref. Size
Inchmmmmmm
≤ 0.0008≤ 0.0200.0006Φ 25× 6
0.0008 0.00190.020 0.0500.0006Φ 25× 8
0.0020 0.00390.051 0.1000.001Φ 25× 8
0.0040 0.00790.101 0.2000.001Φ 25× 8
0.0080 0.01990.201 0.5000.0015Φ 25× 8
0.0200 0.03990.501 1.0000.002Φ 25× 10
0.0400 0.05901.001 1.5000.0025Φ 25× 12
0.0591 0.08661.501 2.2000.003Φ 25× 14
0.0867 0.12992.201 3.3000.004Φ 28× 16 Φ 30× 16

0.1300 0.18103.302 4.6000.005Φ 28× 18 Φ 30× 18

0.1811 0.21644.601 5.5000.006Φ 43× 26
0.2165 0.31505.501 8.0000.008Φ 43× 30

All of our business is carried out in full compliance with the ISO9001 Certification.

Please contact us if you would like any further information.

BWG	inches	mm	BWG	inches	mm	BWG	inches	mm
5/0	0.5	12.7	10	0.134	3.404	24	0.022	0.559
4/0	0.454	11.532	11	0.12	3.048	25	0.02	0.508
3/0	0.425	10.795	12	0.109	2.769	26	0.018	0.457
2/0	0.38	9.652	13	0.095	2.413	27	0.016	0.406
0	0.34	8.636	14	0.083	2.108	28	0.014	0.356
1	0.3	7.62	15	0.072	1.829	29	0.013	0.33
2	0.284	7.214	16	0.065	1.651	30	0.012	0.305
3	0.259	6.579	17	0.058	1.473	31	0.01	0.245
4	0.238	6.045	18	0.049	1.245	32	0.009	0.229
5	0.22	5.588	19	0.042	1.067	33	0.008	0.203
6	0.203	5.165	20	0.035	0.889	34	0.007	0.178
7	0.18	4.572	21	0.032	0.813	35	0.005	0.127
8	0.165	4.191	22	0.028	0.711	36	0.004	0.102
9	0.148	3.759	23	0.025	0.635
