Plastic Ball Valve Injection Mold
Zhejiang Taizhou Huangyan Jingzheng Mould Co., Ltd.- Plastic Material：PVC
- Mould Cavity：Multi Cavity
- Surface Finish Process：Polishing
- Shaping Mode：Injection Mould
- Application：Household Appliances
- Runner：Cold Runner
Base Info
- Trademark：customized
- Specification：customized
- Transport Package：Woodencase
- Customized：Customized
- Standard：DME
- Certification：ISO
- Design Software：AutoCAD
- Model NO.：JZ
- Origin：China
- HS Code：8480719090
- Production Capacity：1000,Year
Description
Basic Info.
Model NO. JZ Design Software AutoCAD Certification ISO Standard DME Customized Customized Transport Package Woodencase Specification customized Trademark customized Origin China HS Code 8480719090 Production Capacity 1000/YearProduct Description
High quality with reasonable price, by using Chinese, Korean, Japan, Germany Standard to make moulds, the products' dimension range from 25mm to as big as 630 mm.

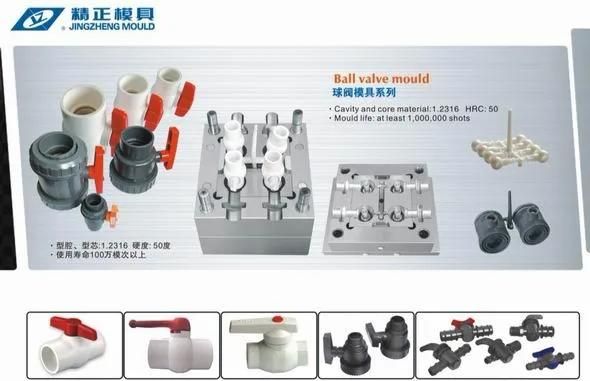

| Name | PVC Ball Valve Mould |
| Plastic material | PVC |
| Steel of Cavity & Core | DIN 1.2316 |
| Steel of Mouldbase | S50C. LkM standard… etc |
| Nos of Cavity | Customized |
| Hardness of Cavity & Core | 48-52HRC |
| Hardness of Wear Parts | 55-60HRC |
| Core pulling system | Motor /oil cylinder/ stripping plate, angel pin… etc |
| Mould Accessories | DME/HASCO Standard … |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish, |
| Molding life | 1.200, 000shots |
| Runner | Cold |
| Delivery time | 75work days |
| Packing | wooden case |
| Payment | T/T L/C |
