• Heat Treatment Steel：HRC46-52
• Steel Treatment：Heat Treatment, Nitriding, Chrome Plating
• Mould Life：500,000 Shots - 2,000,000 Shots
• Ejection System：Stripper Plate, Lifter, Push Bar, Ejection Pin, Et
• Mould Gate：Fan Gate, Sub Gate, Pinpoint Gate, Valve
• Mould Steel：P20,Nak80,SKD11,S316,S50c,S45c,718h,718 or Custome
• Mould Base：Lkm, Hasco, Dme or Upon Customer′s Requirement
• Customized：Customized
• Standard：HASCO
• Certification：TS16949, CE, ISO, FDA
• Installation：Semi Fixed
• Design Software：Ug, Autocad
• Runner：Hot Runner
• Model NO.：HW-201112-4
• Transport Package：Wooden Case for Plastic Mould
• Specification：According to customers′ drawings
• Trademark：HOWE,OEM
• Origin：China
• HS Code：8480719090
• Production Capacity：50sets,Month

Basic Info.

Model NO. HW-201112-4 Runner Hot Runner Design Software Ug, Autocad Installation Semi Fixed Certification TS16949, CE, ISO, FDA Standard HASCO Customized Customized Mould Base Lkm, Hasco, Dme or Upon Customer′s Requirement Mould Steel P20,Nak80,SKD11,S316,S50c,S45c,718h,718 or Custome Mould Gate Fan Gate, Sub Gate, Pinpoint Gate, Valve Ejection System Stripper Plate, Lifter, Push Bar, Ejection Pin, Et Mould Life 500,000 Shots - 2,000,000 Shots Steel Treatment Heat Treatment, Nitriding, Chrome Plating Heat Treatment Steel HRC46-52 Transport Package Wooden Case for Plastic Mould Specification According to customers′ drawings Trademark HOWE/OEM Origin China HS Code 8480719090 Production Capacity 50sets/Month

Product Description

Car center control panel B pillar plastic interior trim HASCO injection mould

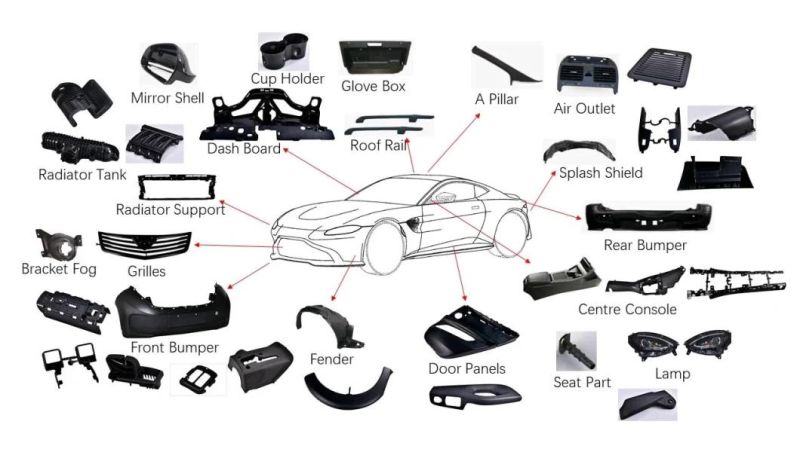

Howe Mold is professional in the plastic injection mold,  The injection mouldings parts include automotive parts (dashboards, inner decorating accessories, fender, bumper, etc. ), electrical appliances (washing machine, air conditioner, refrigerator, television, etc. ), household appliance products (microwave oven, juicer, etc. ),  IT industry products (cell phones, computer, etc. ), office accessories (telephone, printer, etc. ) as well as other varieties of products. We look forward to participating in the success of your next project.

Mould Information:

Type of mould	Injection mould Small, medium, large mold
Mold Material	S136, SKD61,H13,SKD11, NAK80, 2738,718,etc, High hardness alloy steel with heat treatment, wear resistance, corrosion resistance.
Part Material	Normal Plastic:PP,PE,EVA,PS; Engineering Plastic: ABS,PA,PA6,PA66,PC+ABS,PA46,PA+60%GF,PC,POM,PBT,TPU,TUR; High Engineering Plastic: PEEK,PPS,PPO,PEI,PES,PLA,LCP,Antistatic Plastic,etc.
Mold Cavity	Single-cavity or Multi-cavity, as per customers requirement and part structure
Cycle Time	10-300 seconds, according to the products, cavity, and equipment
Injection Equipment	Injection machines from 15T to 1200T--26 sets
Mold Life	300,000 shots, 1,000,000 shots
Product Material	Normal Plastic: PP,PE,EVA,PS; Engineering Plastic: PA,PA6,PA66,PC+ABS,PA46,PA+60%GF,PC,ABS,POM, PBT; High Engineering Plastic: PEEK, PPS, PPO, PEI, PES, LCP, antistatic plastic, etc.
Injection Type	Hot runner, Cold runner, as customers' requirement and part structure.
Software	UG, Proe, Solidworks, Autocad, etc.
Main Processing Equipment	CNC, Slow Wire, EDM, CNC lathe, precision grinder, milling machine, driller, wire cutting machine, etc
Surface Finish	Tech polish, High gloss, Texture, Printing, Painting, Plating



Plastic Mold (Moulds) production process	Description
1. 3d Design/Samples for quotation	According to 3D drawing or samples for quotation.
2. Negotiations	Including the price of moulds, moulds sizes, material for cores & cavities, the weight of the product, part cost, payment, moulds lifetime, delivery, etc.
3. Purchasing Order	After the customer confirming the mould design and quotation.
4. Making mold	Confirm drawing, start to do DFM,mold flows and mold detail agreed with the customer, start production.
5. Production schedule	Every week we will feedback to the customer mold progress(picture).
6. sample shoot	We provide the moulds test samples for confirmation(about 10-15 pieces), then, get your signature sample, mass production.
7. Package	Wooden case for moulds, cartons for parts, or as your requirements.
8. Delivery	deliver goods by air or by sea.

Our Services



Why Choose Us?

1. Manufacturing and exporting experience for over 10 years. ISO 9001 approved.
2. Products are supplied to over 50 countries.
3. One-stop service for plastic injection mold, plastic parts, rubber parts, die casting mold and metal parts, etc. Save time and save money for you.
4. In-house mold design and building capabilities.
5. No reclaimed material used to ensure high quality.
6. Keep secret to your idea and your design.
7. 24 hours (two shifts) / 6 days for production.
8. Professional design team, mold maker engineer. OEM/ODM service.
9. Professional QC and R&D teams to assure high quality.
10. Professional sales team.
11. No MOQ.
12. Prompt delivery. For prototype: 3-7 days. Production orders can be arranged specially to meet customer's urgent demands.
13. Geographical advantages: within 30 minutes to airport or sea port, near to Hongkong.

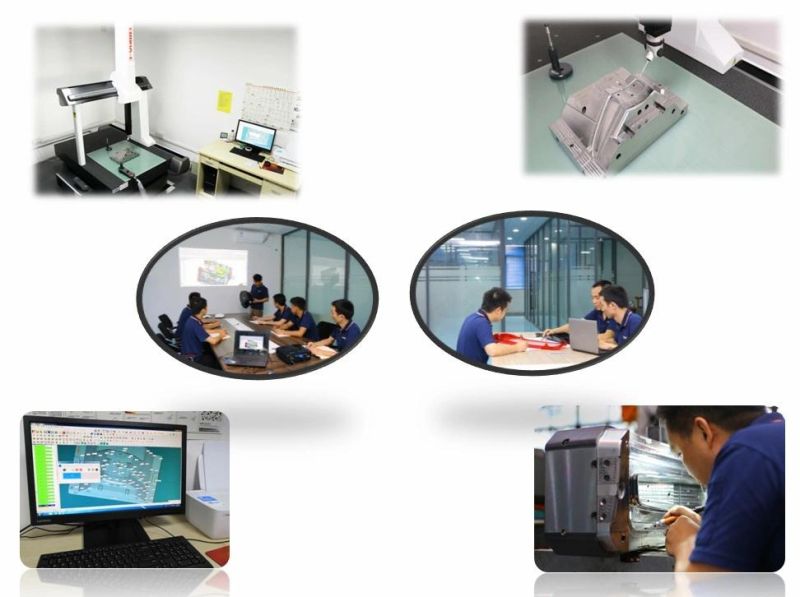

Quality Control

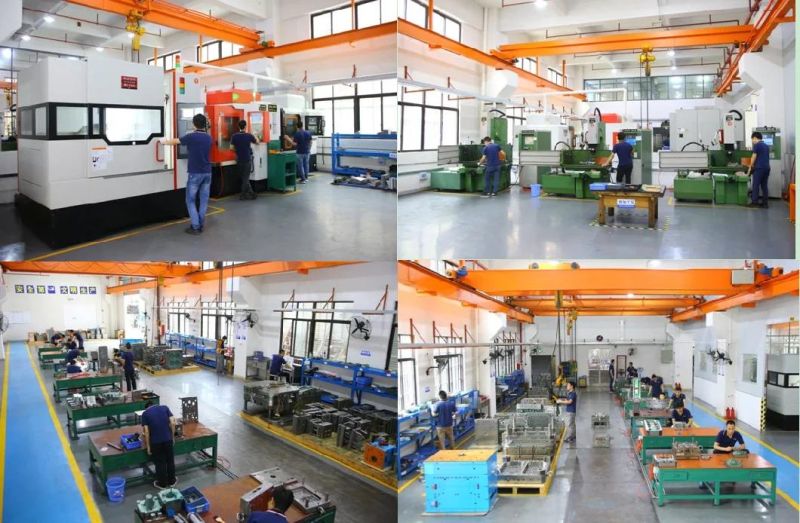

Equipment center

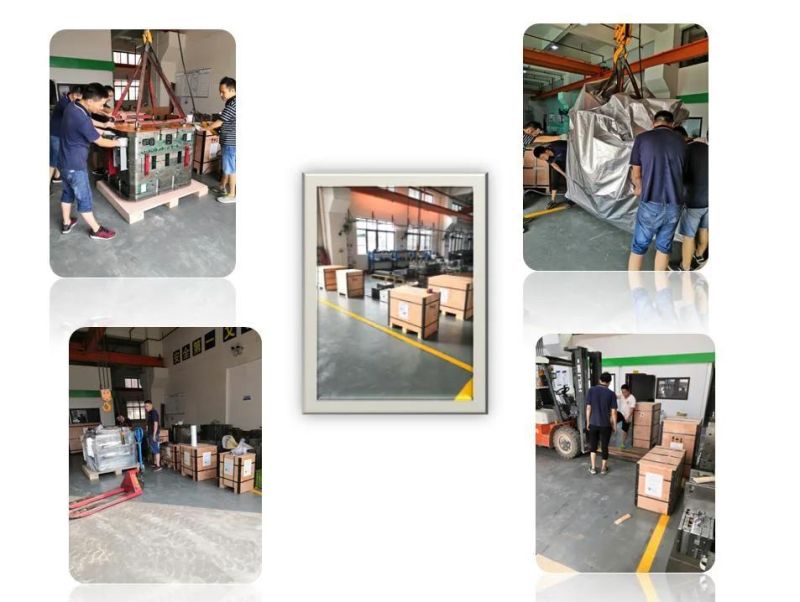

Mould Packaging



Customer Visit







FAQ:

Q1: What kind of molds do you make?
A1: We are mainly making plastic injection mold. Sometimes we also make die casting molds according to our customer's requirements.

Q2: Do you build hot runner plastic moulds?
A2: Yes. We build hot runner Plastic Moulds and specialized in many different systems, such as DME, Master, Mastip,Hasco, Yudo, Incoe, Husky, etc.
The manifold recommended for your tool is selected to meet your individual needs.

Q3: What types of files do you accept (drawings)?
A3: With our CAD systems, we accept the following files:
STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files, etc.

Q4: What kind of steel do you use for plastic mouldings?
A4: We can use any type of steel appointed by customer or popular in the market.
Such as P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.

Q5: Can you provide the steel certificate and heat-treatment certificate?
A5: Yes, We can provide a steel certificate or hardness certificate to prove.

Q6: Can you make the texture/text / heat-treatment /nitriding for the injection mold plastic?
A6: Yes, as a plastic mold factory, we have long-term cooperated subsidiary factories that do those processes.
They are professional and well reputed in our local market.

Q7: How long is the lead-time for a plastic injection mold?
A7: It all depends on the mold's size and complexity. Normally, the lead time is 25-45days.
If the Plastic Mouldings are very simple and not big size, we can work out within 15 days.

Q8: Do you make spare parts for your customer?
A8: Yes, we will provide spare parts for the mold if needed or required by the client.

Q9: How do you pack plastic moulds?
A9: We pack the plastic moulds with a wooden box.
There are the main 3 operation steps.
First Step: We daub some rust preventive oil on the mold.
Second step: We pack the mold with thin plastic film to avoid moisture.
Third step: We put this plastic film packed mold in a wooden box, and fix it to avoid any movement.
