China High Quality PCD Dies for Tubes Pipes Bars
Zhengzhou Hanguang Super Hard Tools Co., Ltd.- Shaping Mode:Grinding
- Material:PCD
- Type:PCD Wire Drawing Dies
- After-sales Service:Repairing Dies
- Hole Type:Round Mould
- Cavity:Single-cavity
Base Info
- Specification:0.197" ~1.1417"
- Transport Package:Carton
- Case:43X27, 43X32,53X40
- Customized:Customized
- Warranty:1 Year
- Application:Wires and Cables
- Surface Treatment:Polish
- Model NO.:5.0mm ~ 29.0mm
- Trademark:HG
- Origin:China
- HS Code:8207201000
- Production Capacity:1000pieces,Year
Description
Wires (Reduction angle)
Diameter (inch) | Diameter ( mm) | ADDMA | Tolerance(mm) | Roundness(mm) |
0.0039~0.0197 | 0.10~0.50 | D6 | 0.001 | 0.001 |
0.0118~0.0394 | 0.30~1.00 | D12 | 0.001 | 0.001 |
0.0197~0.0591 | 0.50~1.50 | D15 | 0.002 | 0.001 |
0.0315~0.0787 | 0.80~2.00 | D18 | 0.003 | 0.002 |
0.0472~0.1220 | 1.20~3.10 | D21 | 0.004 | 0.002 |
0.0591~0.1732 | 1.50~4.40 | D24 | 0.005 | 0.003 |
0.1299~0.2283 | 3.30~5.80 | D27 | 0.005 | 0.004 |
0.2008~0.3543 | 5.10~9.00 | D30 | 0.007 | 0.005 |
0.3150~0.4921 | 8.00~12.50 | D33 | 0.010 | 0.008 |
0.3150~0.5000 | 8.00~12.70 | D36 | 0.010 | 0.010 |
0.3150~1.1417 | 8.00~29.00 | D36+ | 0.015 | 0.015 |
3.Inner Geometry

Inner geometry of PCD die is combined with "Entrance,approaching,reduction,bearing length and exit "part.
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f. Exit: Wire exiting.

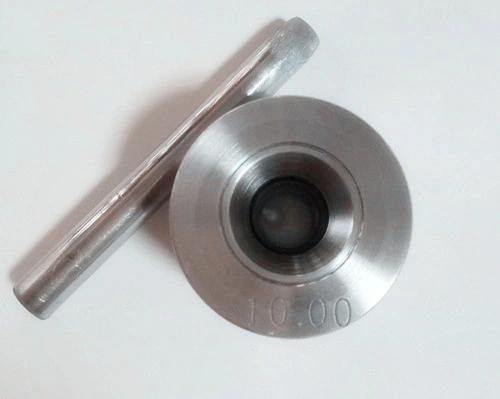

4.PCD Dies for Tubes and Bars
These dies are always big. When make PCD dies for tubes or bars, it's better to use tungsten carbide supported PCD blanks. In this case, the case can reinforce the dies in drawing process.

5.Advantages
23 years' experience in die making
First class PCD blanks
Imported sintering powder
Advanced machines, 100% inspected
Good after-sales service
Technical assistance
