• Specification：customized
• Transport Package：Wooden Packing
• Matrial：P20
• Cavity：One
• Customized：Customized
• Installation：Mobile
• Design Software：Pro-E
• Model NO.：YX-1851
• Origin：China
• HS Code：8481719090
• Production Capacity：100set,One Year

1.Quote

According Sample or 2D/3D drawing or Picture with detailed information , If the part some design is not good , we will give suggestion and solutions to customer

          ↓

2.Discussion

Mold material, cavity number, price, runner, payment, etc.

          ↓

3.Approved

Order confirmed

          ↓

4. Advance

Pay 50% by T/T

          ↓

5.Product Design Checking.

We will send 2D and 3D part drawing and PPT file for customer check

          ↓

5.Mould Design

According the Approved Part drawing , we will make the mold design and send to customer confirm

          ↓

6.Mold Steel Material and Component Prepare

After drawing confirmed , we will start to prepare the steel material and standard components

          ↓

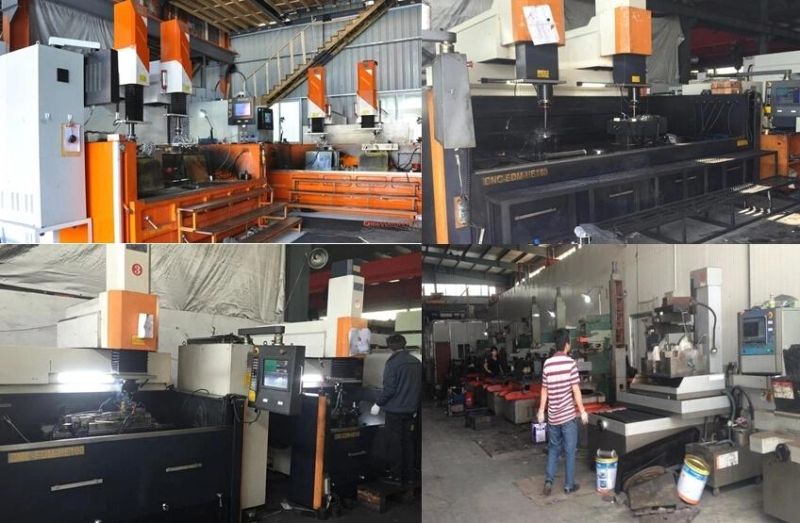

7.Mold Processing

Send detailed reports with pictures to customer each week

          ↓

8.Mold Testing

Send Test samples with report to customer

          ↓

9. Mold Modification

According to customer's feedback

          ↓

10.Balance settlement

50% by T/T after the customer approved the test sample and mould quality.

          ↓

11.Packing and Delivery

Each Mold will be packing with some damageable spare parts , and send detailed pictures to customer

Q/C Inspect Moulds:

1.Mould Material Q/C

- Mould Steel Checking(Hardness, Crack ,Blow hole material defects )

- Mould Standard Spare Parts Checking(hardness, size, flaw checking)

2. Mould Machining Process Q/C

- Design checking (Part design, mould design,Including 2D drawing and 3D drawing)

- Each part of mould's size checking after machining according to 2D drawing

- Mold Test (check mould running conditions and T1 samples)

3.Make sure to follow and checking each points of customer's request before shipment
