• Shipment：by Sea or by Air
• Special Service：Weekly Report with Machining Photos Avaialble
• 3D Design Software：Ug
• Sanoke Tune：60 Days
• Cooling Design：Water Cooling
• Runner System：Chinese Hot Runner System
• Mould Life：500,000-800,000 Shots
• Mold Base：Lkm,Hasco,Self-Made,etc
• Mold Steel：718
• Part Name：Thermal Box Mould , Ice Box Mould
• Customized：Customized
• Standard：DME
• Certification：ISO
• Installation：Semi Fixed
• Design Software：UG
• Runner：Hot Runner
• Model NO.：RMBM16-0160312
• Transport Package：Wooden Case
• Specification：international
• Trademark：REMO
• Origin：China
• HS Code：8480719090
• Production Capacity：500set,Year

Basic Info.

Model NO. RMBM16-0160312 Runner Hot Runner Design Software UG Installation Semi Fixed Certification ISO Standard DME Customized Customized Part Name Thermal Box Mould / Ice Box Mould Mold Steel 718 Mold Base Lkm,Hasco,Self-Made,etc Mould Life 500,000-800,000 Shots Runner System Chinese Hot Runner System Cooling Design Water Cooling Sanoke Tune 60 Days 3D Design Software Ug Special Service Weekly Report with Machining Photos Avaialble Shipment by Sea or by Air Transport Package Wooden Case Specification international Trademark REMO Origin China HS Code 8480719090 Production Capacity 500set/Year

Product Description

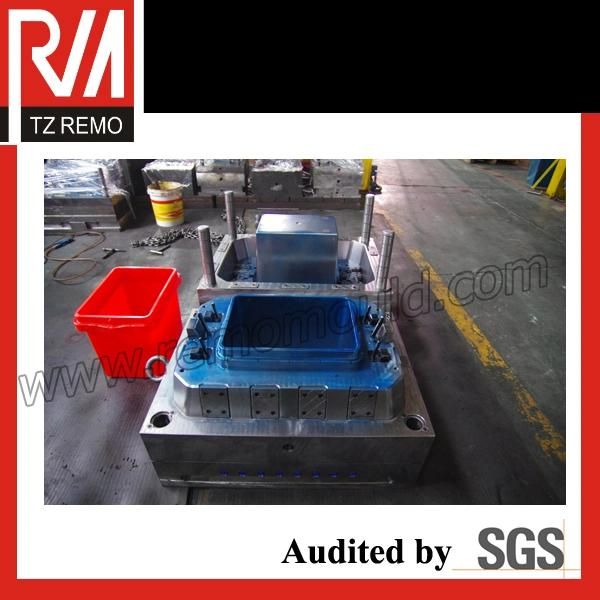

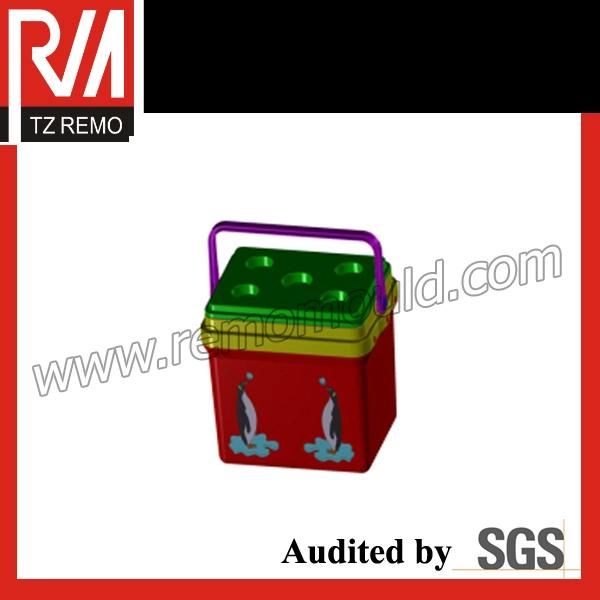

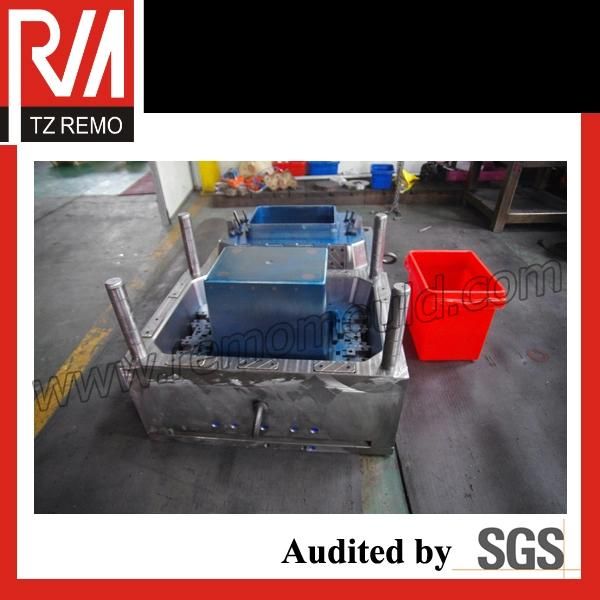

Thermal Box  / Ice Box mould

1.The series of food container mould we have made

REMO Plastic Mould Ltd is specialize in crate mould, pallet mould, paint bucket mould, food container mould,
 flower pot mould and garbage bin mould. For the detailed of the company information,
 please view our ''company profile'' on our homepage.
You will get a completed view of this company.



2.Detailed description of the Food Container Mould:
Basic mould information:

Runner Type	Hot Runner
Mould Size	420x390x390mm
No. of Cavity	1 cavity
Product Material	PP
Product Size	254.1x190x65.8mm
Product Weight	63g
Wall thickness	1.2mm
Surface finish	Mirror polish
Delivery Time	30 days




There are three levels of mould quality for your option.
Option A:  Level A quality(Highest Level Quality)
Mould Base: LKM,45# Steel
Core/Cavity: S136+Becu
Slider/Insert: S136
Mould spare parts: SKD
Hot Runner: YUDO
Mould Life:1,000,000 shots
Cycle Time:20s

Option B: Level B quality(Middle Level Quality)
Mould Base: 45# Steel,self-made
Core/Cavity: 718H
Slider/Insert: 718H
Mould spare parts: Jinghong, China
Hot Runner: Hongying,China
Mould Life:800,000 shots
Cycle Time:22s


Option C: Level C quality(Lowest Level Quality)
Mould Base: 45# Steel,self-made
Core/Cavity: P20
Slider/Insert: P20
Mould spare parts: Jinghong,China
Hot Runner: Hongying,China
Mould Life:500,000 shots
Cycle Time:23s

Attention pls:
Price varies in different quality level. When you send us the mould inquiry, please offer the following information:
1) Quality level you choose: Level A/Level B/Level C
2) food container Photo
3) food container Dimension: L*W*H
4) Wall thickness


3. Food Container Mould Making Process


Processing	Time
Prepare Steel	3 days
CNC Machining	5 days
Drill	2 days
Heat treatment	5 days
High speed CNC Machining	6 days
Assembling and Fitting	3 days
Polishing	4 days
T1 mould test	2 days

 Total: It is 30 days for first mould testing after mold design is confirmed.


4. Food container Mould Quality Control
For the Q/C of mould, there are 3 steps:
1.Mould Material Q/C
- Mould Steel Checking(Hardness, flaw detection)
- Mould Standard Spare Parts Checking(hardness, size, flaw checking)
2. Mould Making Process Q/C
- design checking (part design, mould design, mould engineering drawing)
- Each part of mould's size checking after machining according to 2D drawing
- mould testing(check mould running condition)
3.check with customer's requirement again before mould shipping.





5.Food container Mould Pack and Shipping
Anti-rust oil is painted first, then Plastic film, and finally Wooden Case.
Sent together with the mould:

1. Mould manual instruction
2. engineering drawing in flash disk
3. one more set of mould spare parts: heater, ejector pin, bush, water nozzle, water pipe, hanging ring.


6. Food container Mould Maintenance
a) When the mould is vacant, spray the anti-rust oil
b) To clean the gate and cooling system regularly
c) Avoid to use recycled material if the mould is suitable for virgin material only

7. After-Sale Service
 a) If you are located in India, you can contact our Indian maintenance shop in Delhi.
 b) Engineering and one interpreter can be sent to customer's factory for first running.
 c) one-year after-sale technique support
