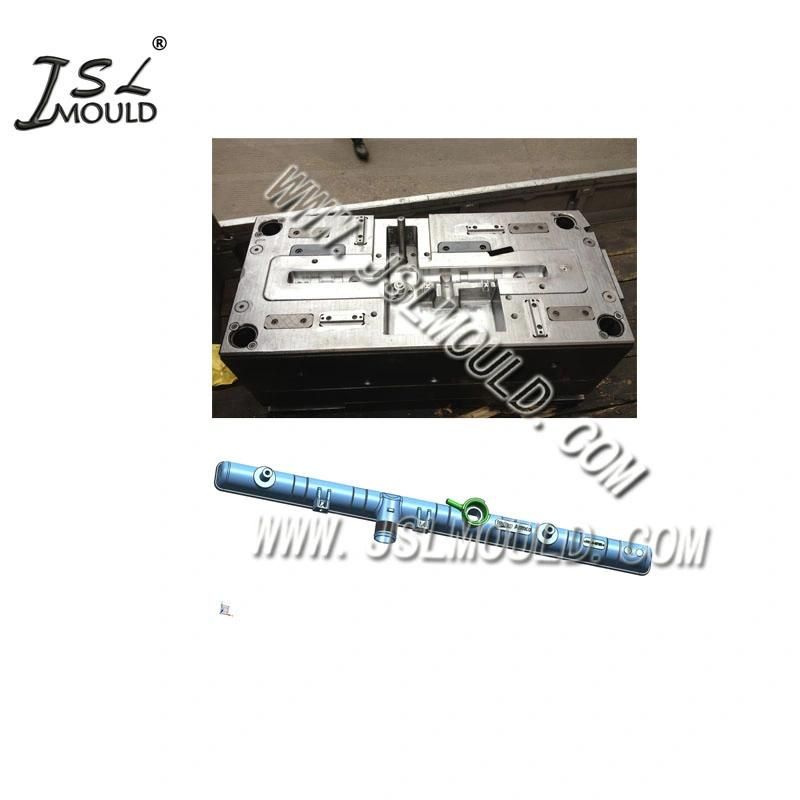

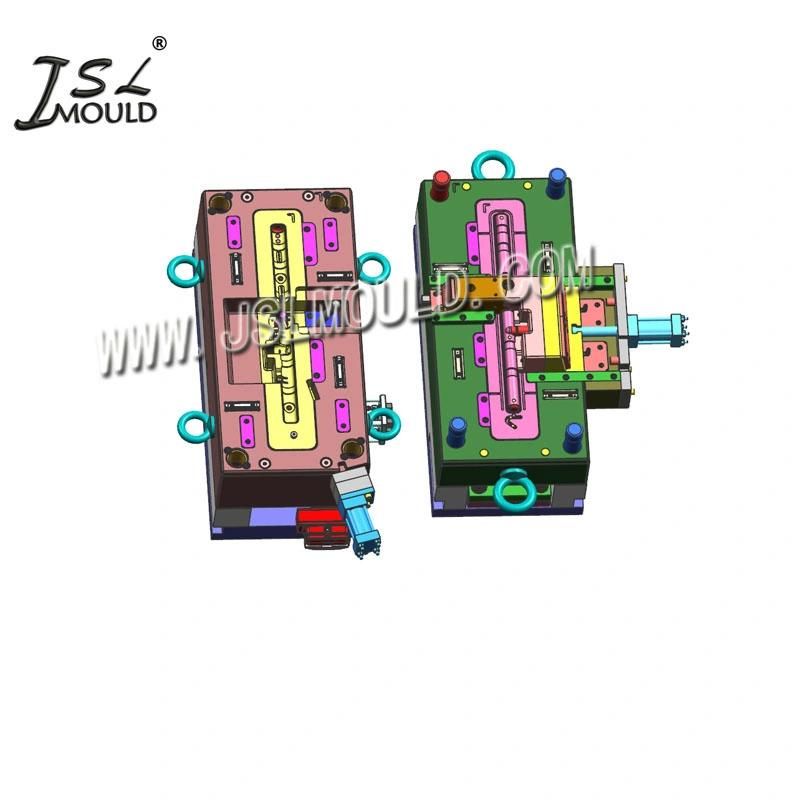

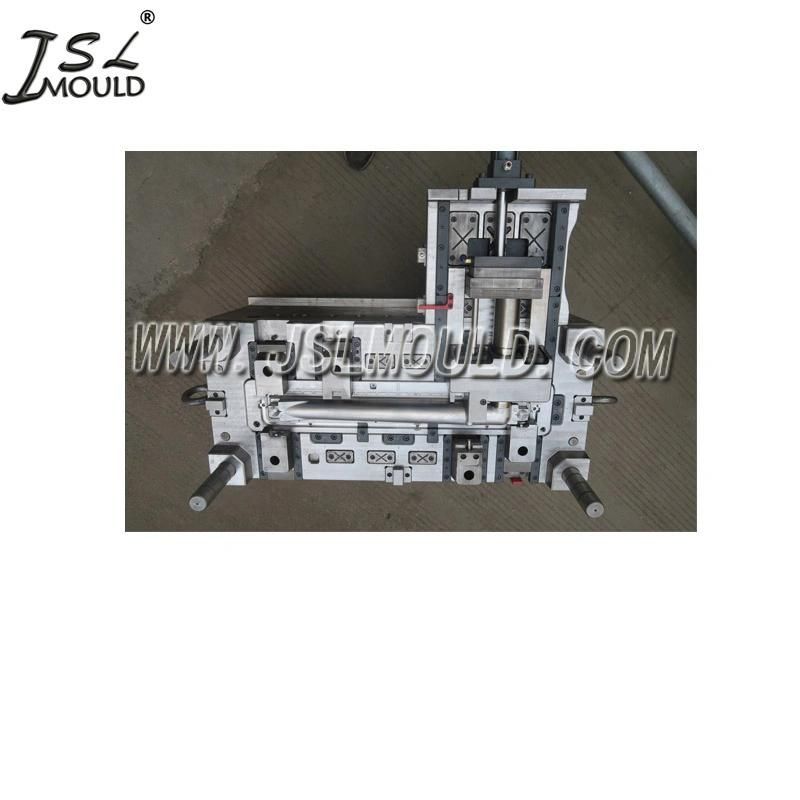

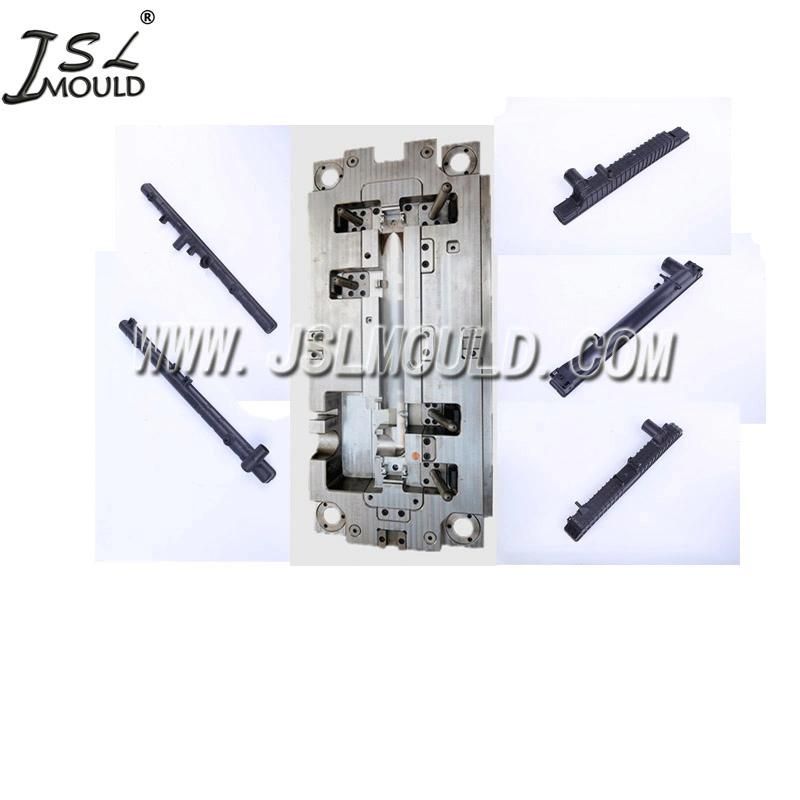

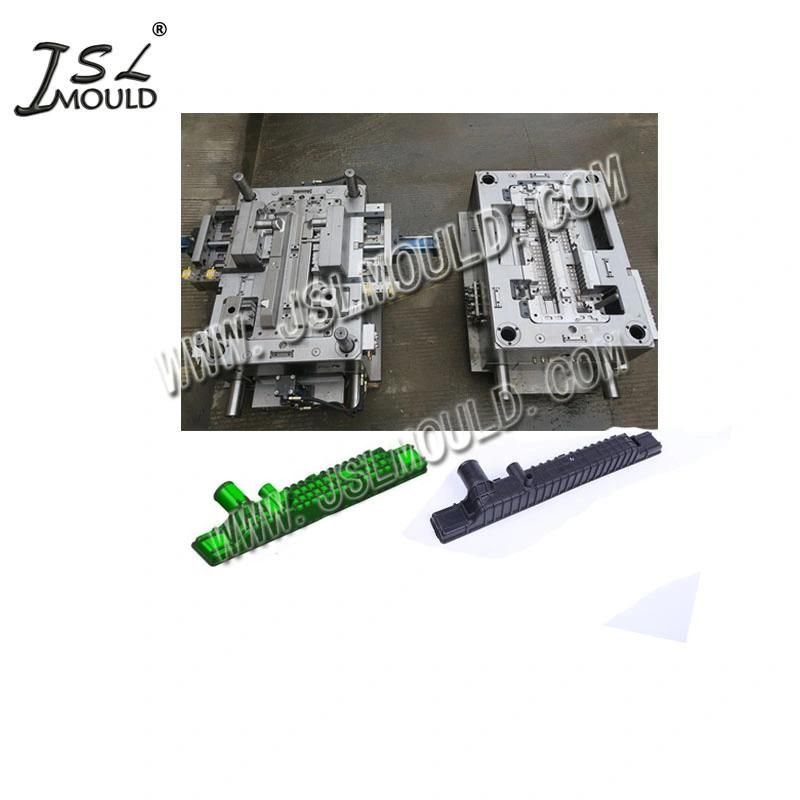

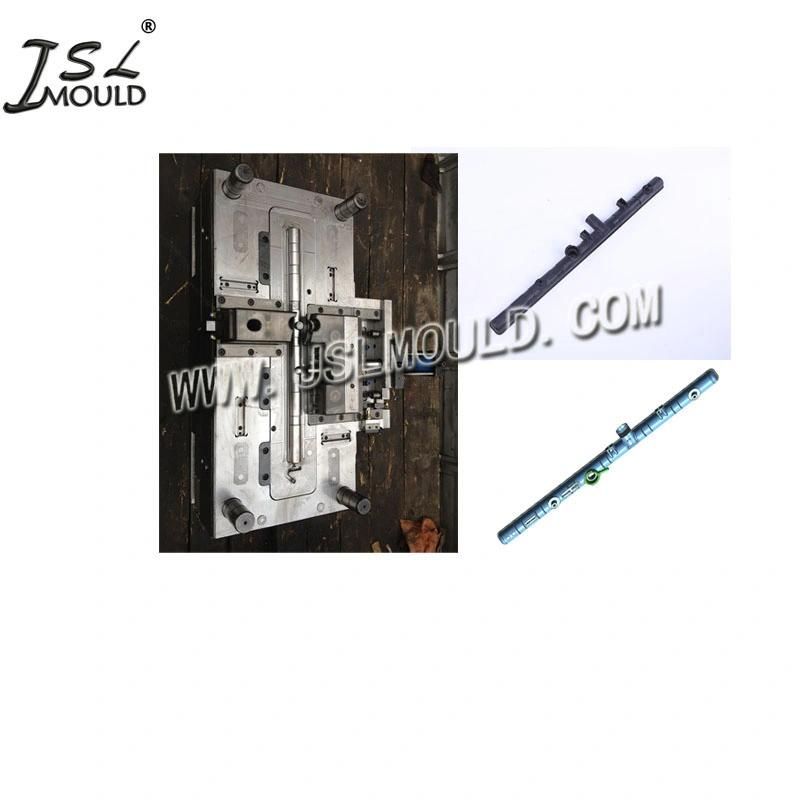

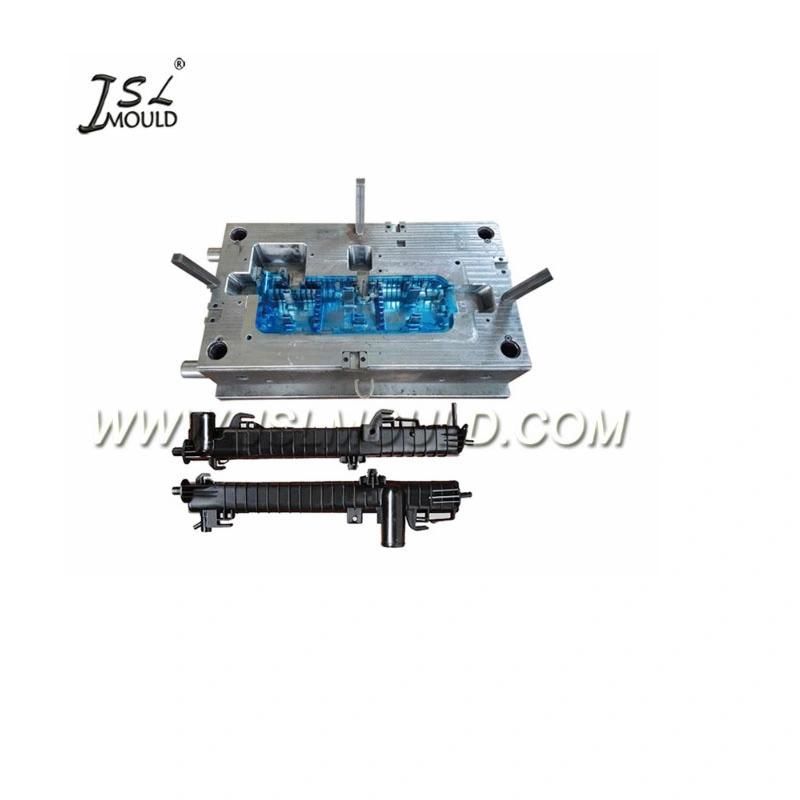

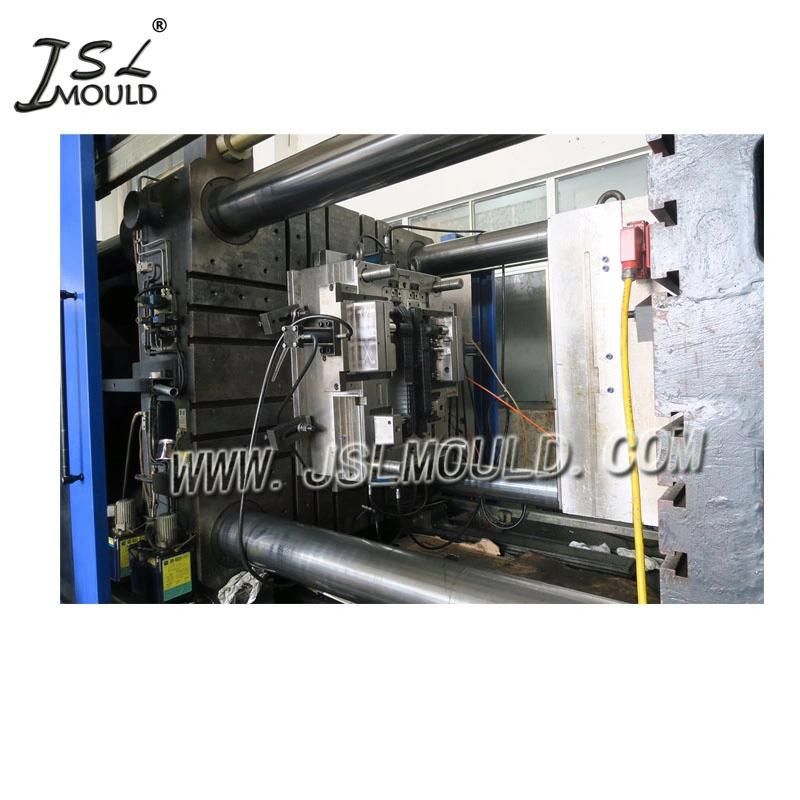

High Quality OEM Plastic Cooling Auto Radiator Tank Mould

Taizhou City Huangyan Beiwei Mould Industry Co., Ltd.
  • Plastic Material:PA66+GF
  • Mould Cavity:Single Cavity
  • Surface Finish Process:Polishing
  • Shaping Mode:Injection Mould
  • Process Combination Type:Single-Process Mode
  • Application:Car

Base Info

  • Mould Design Software:Ug, Proe, Solidworks CAD, Ect
  • Mould Cooling System:by Experienced Designer
  • Heat Treatment:Nitriding, etc
  • Mould Operating Mode:Automatically by CNC
  • Size:According to Customers Requirement
  • Mould Quality Control:Professional QC
  • Mould Runner System:Hot Runner
  • Mould Standard:Dme
  • Customized:Customized
  • Standard:DME
  • Certification:TS16949, CE, ISO
  • Installation:Mobile
  • Design Software:UG
  • Runner:Cold Runner
  • Model NO.:JSL-T16870
  • Mould T1 Sample:50-60days
  • Transport Package:Wooden Case
  • Specification:Dme
  • Trademark:JSLMOULD
  • Origin:China
  • HS Code:8480719090
  • Production Capacity:500sets,Year

Description

Project Information
Product DescriptionPart NameRadiator tank Part Material PA66+30%GF Part Size(MM)666*83*84


Mould SteelA plateS50C B plateS50C Cavity InsertP20 (HRC28-32) Core InsertP20 (HRC28-32) Slider Insert718 Ejector Plate/ Spare PartsS50C


Mould DescriptionMould Size (L*W*H MM)1110*730*740 Mould Gross Weight (KG's)1820KG Mould Life Time (Shots)500000 Mould Manufacturing Cycle60 days Surface Finish400# Sand paper polishing Runner DescriptionYudo Hot runner Injection Gate TypeValve gate Ejection SystemEject pin Cycle Time (Second)55s Injection moulding machine500TQuality assurance ISO9001

Our Advantage 1. High quality
2. Reasonable price
3. On time delivery
4. Good After-sale service
5. Strict quality control6. All the mould are automotic.


Offer you In-time response on letters, telephone calls or fax
In-time supply the quotation and mould designs
In-time communication on the technical points
In-time sending pictures for the mould machining progress and mould finishing schedule
In-time mould test and sample delivery
In-time mould delivery.

For more information please contact us.
