PCD Drawing Dies for Wire Drawing
Zhuzhou Better Tungsten Carbide Co., Ltd.- Hole Type：Section Mould
- Shaping Mode：Punching
- Material：PCD
- Type：Polycrystalline diamond die
- Cavity：Single-cavity
- Surface Treatment：Polish
Base Info
- Trademark：UBT
- Customized：Non-Customized
- Warranty：1 Year
- Certification：ISO
- Model NO.：PCD Drawing Dies
- Origin：Zhuzhou China
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. PCD Drawing Dies Certification ISO Warranty 1 Year Customized Non-Customized Trademark UBT Origin Zhuzhou China Production Capacity 50000PCS/YearProduct Description

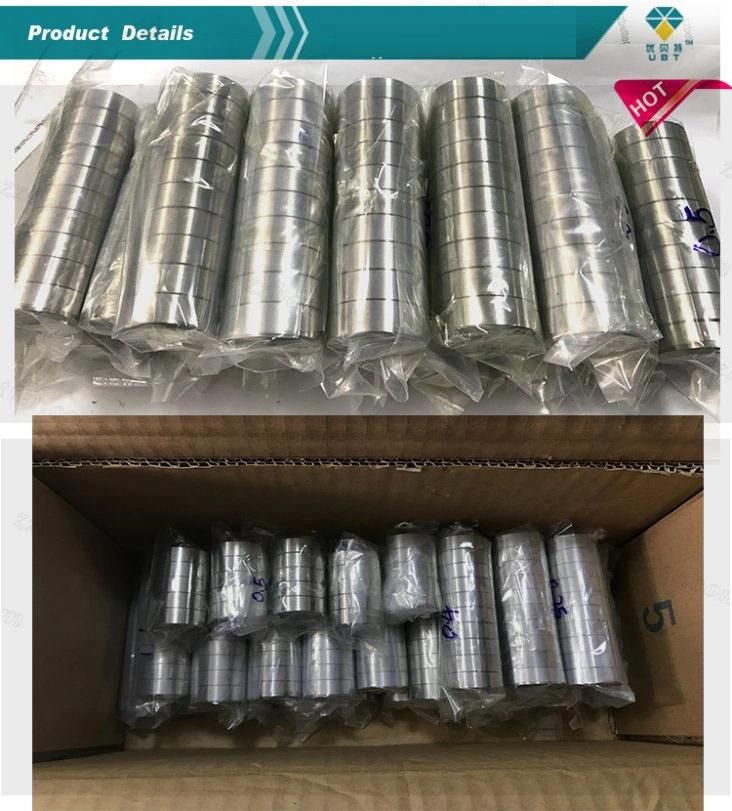

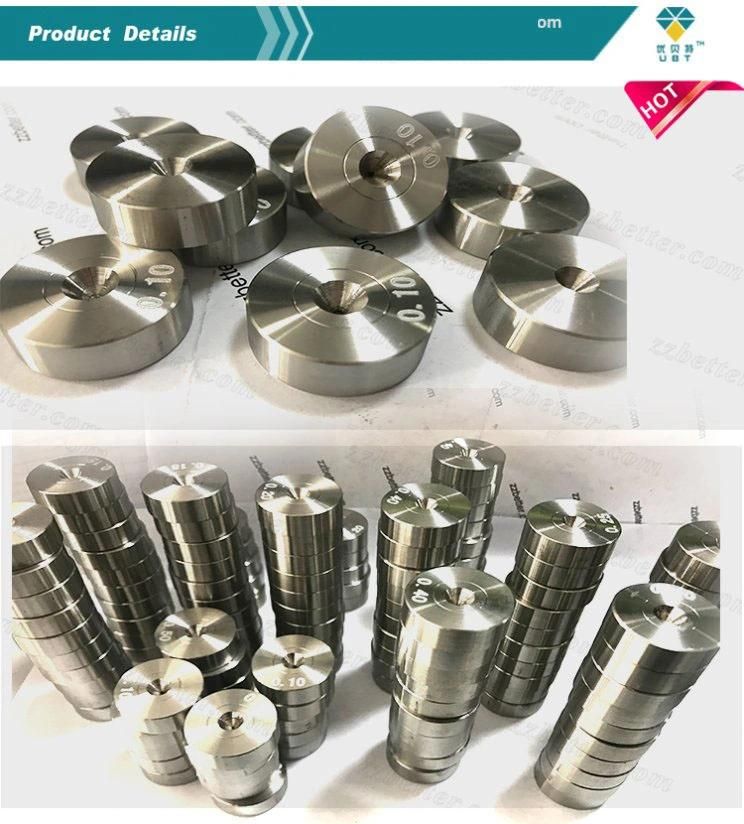

PCD DRAWING DIES
The advantages of our PCD drawing dies:
1. High hardness, abrasion resistance and impact resistance
2. High speed
3. Cutter layout is force balanced to drill a precise round hole and reduce bit whirl
4. Gauge pads have tungsten carbide inserts for maximum wear resistance
5. The diamond layer with thickness over 1 mm increases abrsion resistence of PDC cutter.
6. Sintered at high pressure and temperature
