• Specification：ISO9001-2000
• Transport Package：Wooden Case
• Size：20mm to 63mm
• Customized：Customized
• Standard：HASCO
• Installation：Fixed
• Design Software：AutoCAD
• Runner：Cold Runner
• Trademark：JZ
• Origin：China
• HS Code：8480719090
• Production Capacity：100,Month

Basic Info.

Runner Cold Runner Design Software AutoCAD Installation Fixed Standard HASCO Customized Customized Size 20mm to 63mm Transport Package Wooden Case Specification ISO9001-2000 Trademark JZ Origin China HS Code 8480719090 Production Capacity 100/Month

Product Description

PVC Big Elbow/Bend Pipe Fitting  Mould/mold, One Kind Of Electrical Box, The Best Selling Size Has 20mm, 25mm, 32mm, 40mm, 50mm.
Mould Size for 20mm elbow: L-1300mm, W-650mm H-410mm, Weight:700Kgs
Mould Size for 25mm elbow: L-1350mm, W-700mm H-430mm, Weight:830Kgs

Finished Mould, Ready To Test.

Testing The Mould On The Injection Machine


Name	PVC Big Elbow/Bend Pipe Fitting   Mould/mold
Plastic material	PVC
Steel of Cavity & Core	DIN 1.2316
Steel of Mouldbase	S50C. LkM standard^ etc
Nos of Cavity	Customized
Hardness of Cavity & Core	48-52HRC
Hardness of Wear Parts	55-60HRC
Core pulling system	Motor /oil cylinder/ stripping plate, angel pin^ etc

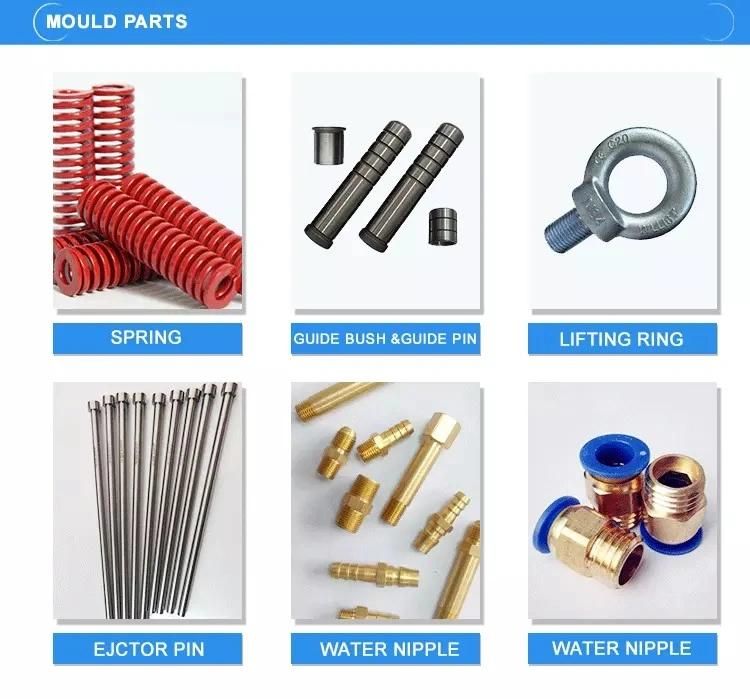

Mould Accessories	DME/HASCO Standard ^
Cooling system	In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish	Diamond polish,
Molding   life	1.200, 000shots
Runner	Cold or Hot
Delivery time	60 work days

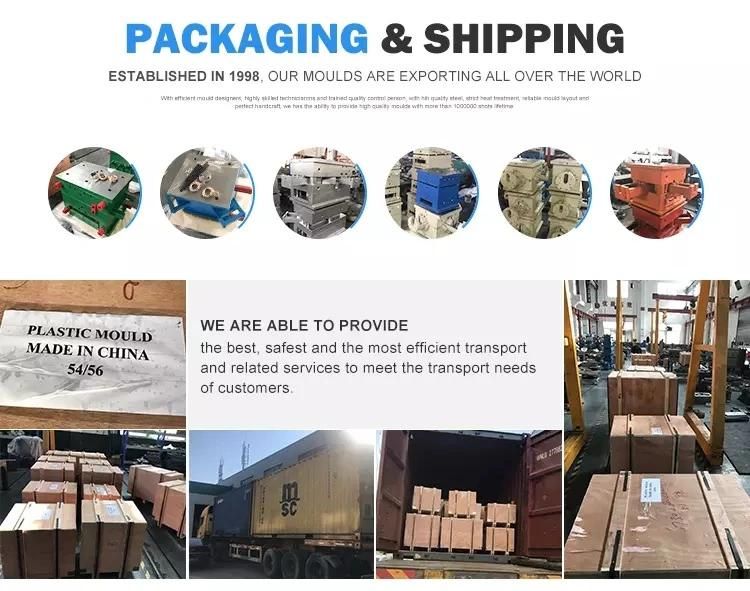

Packing	wooden case
Payment	T/T L/C

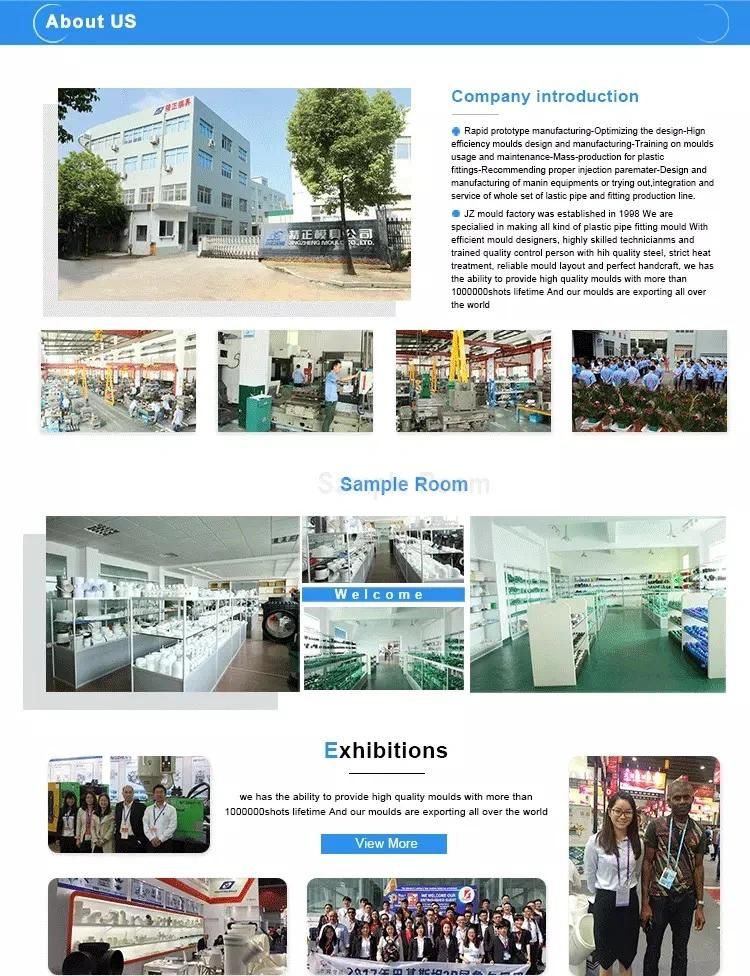

Huangyan Jingzheng Mould Co.,Ltd was established in 1998,located in taizhou,Zhejiang Province,China.Jingzheng specialized in making PVC drainage pipe fitting mould,PPR water supply pipe fitting mould,Rain water gutter fitting mould,Electrical fittings mould,Ball Valve mould,lrrigation pipe fitting mould,etc.

with efficient mould designers,highly skilled technicians and trained quality control personnel:with high quality steel,strict heat treatment,reliable mould layout and perfect handcraft,Jingzheng has the ability to provide high quality mould with more than 1,000,000shots lifetime.

Good quality and Good service has always been our motto.Honesty and Customers'Interest First has always been our pursuit and business philosophy.Innovation and Advancement has always been our guiding star in this changing world.
High quality and  best price pvc pipe fitting injection mould


Name	hight quality and best price plastic pipe fitting moulds
mould material	45#,P20,H13,718,2738,NAK80,S136.
mould base	LKM,HASCO
Cavity	1 or more
Runner	cold or hot runner
Mould Life	45# :300,000-500,000shots
	P20: 500,000shots
	718: 1,000,000shots
Design software	UG,PROE,CADetc.
Plastic material	PP,PE,ABS,PC PET ,PVC,HDPE.etc
Delivery time	30 -75 working days
Advantage	with good quality and competitive price

Mould Making:

1.Samples/Drawing &Requirement from you
2.Mould design:we will Communicate and Exchange the opinion with you after you  place order.
3.Material Purchase:Steel cutting and Mould base tooling.
4.Assembling.
5.Inspection of mould:following and controlling the tooling processing.
6.Mould testing:We will inform you the date.Than will send the sample's inspection, report&injection parameters with the sample to you!
7.Your instruction &confirmation for shipment.
8.Ready made mould before packing.

Our advantages:

1.Good experience in mould making since the year of 1998.

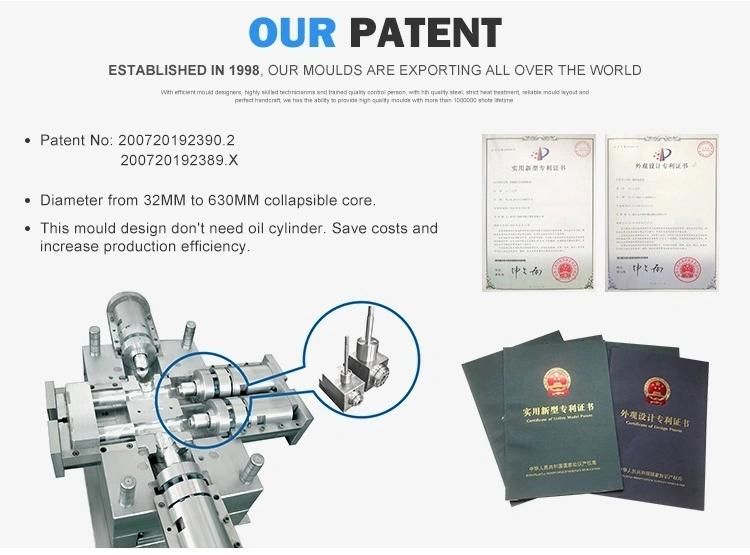

2.Patent in collapsible fitting moulds.

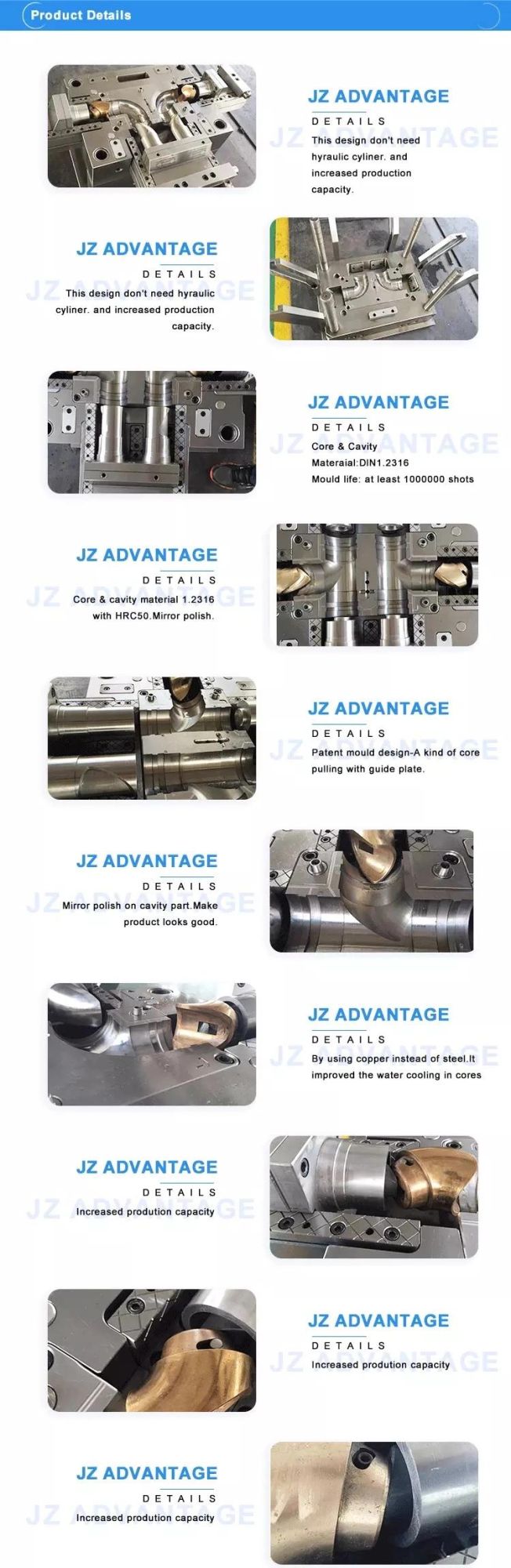

3.Machinery core pulling system save cost and increase production efficiency.

4.Perfect core pulling distance within 180mm.

5.Excellent R&D team.(We can offer you 3D mould design with all details within one day.)

6.Efficiency production department.(We can finish Push-Fit fitting mould of size 110mm in stwo cavity with in 45days.)

7.Competitive price in save level of mould manufactuers.

Pls freely contact me for new inquire and further questions!
